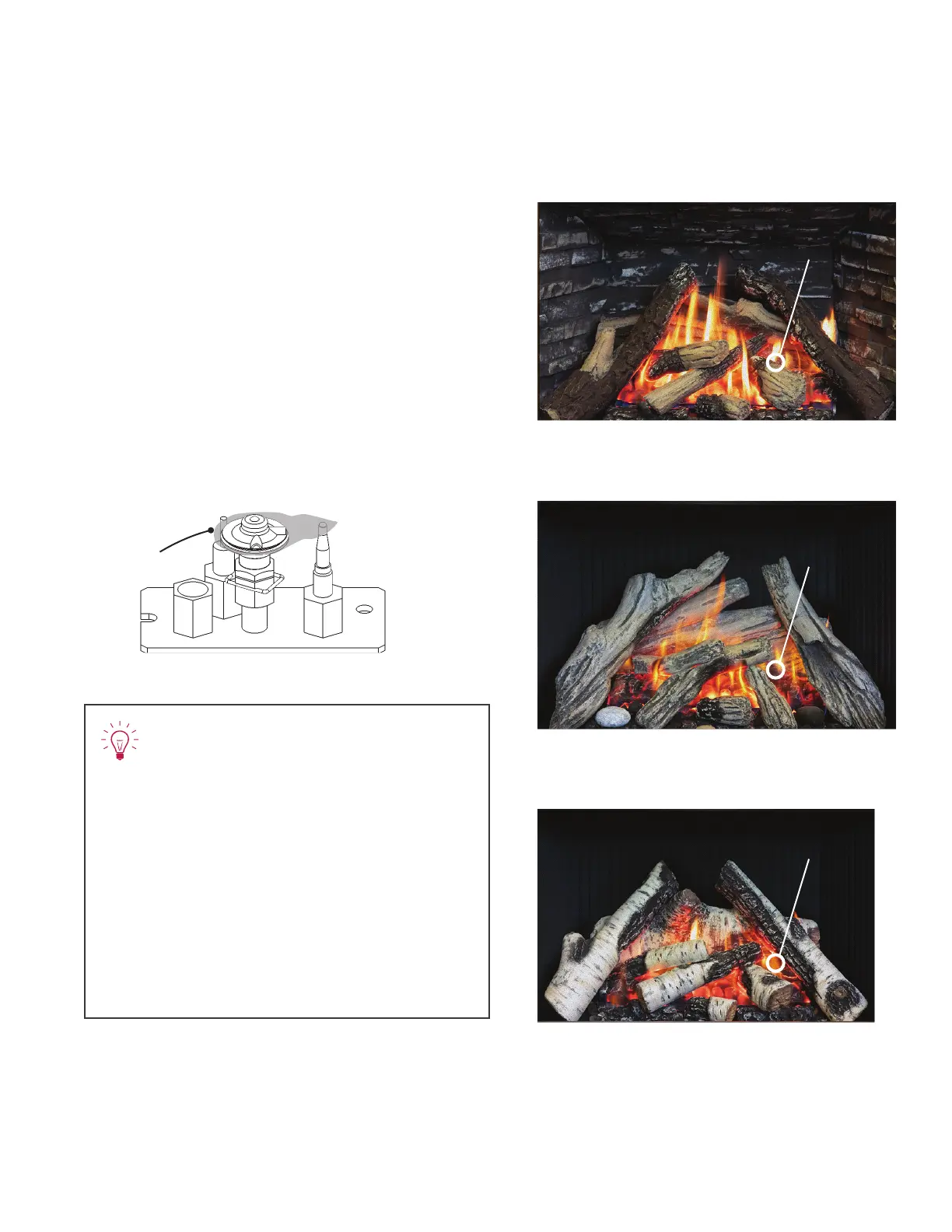

Typical fl ame appearance - 700M
The pilot light and burner fl ames should be checked
periodically. Check after the fi re has been on for at
least 30 minutes. The pilot fl ame must cover the tip
of the thermocouple probe. The main burner fl ame
pattern will vary depending on the type of installation
and climatic conditions.
Performance of propane gas fi replaces may be
aff ected by the quality of commercial gas supplied
in your area.
The fi replace area must always be kept clear and
free from combustible materials, gasoline and other
fl ammable vapors and liquids.
Inspect the vent terminal outdoors regularly to
ensure that it is not obstructed by snow, trees,
bushes, leaves, or other objects. We recommend at
least an annual inspection.
Checking pilot and burner flames
Pilot fl ame
Thermocouple
probe must be in
fl ame
Note
The height and color of your flames can vary
depending on fuel type, fuel quality and mixture,
altitude, and aeration adjustment at or after
installation.
The photos of typical flame appearance are for
illustrative purposes only. Your fireplace may be
operating normally but appear different than the
photos.
Venting configuration, elevation, burner aeration
setting and local fuel heating value can all affect
flame appearance.
Traditional Logs
Driftwood Logs
Birch Log
Pilot Light
Location
Pilot Light
Location
Pilot Light
Location
