Conversion Procedure

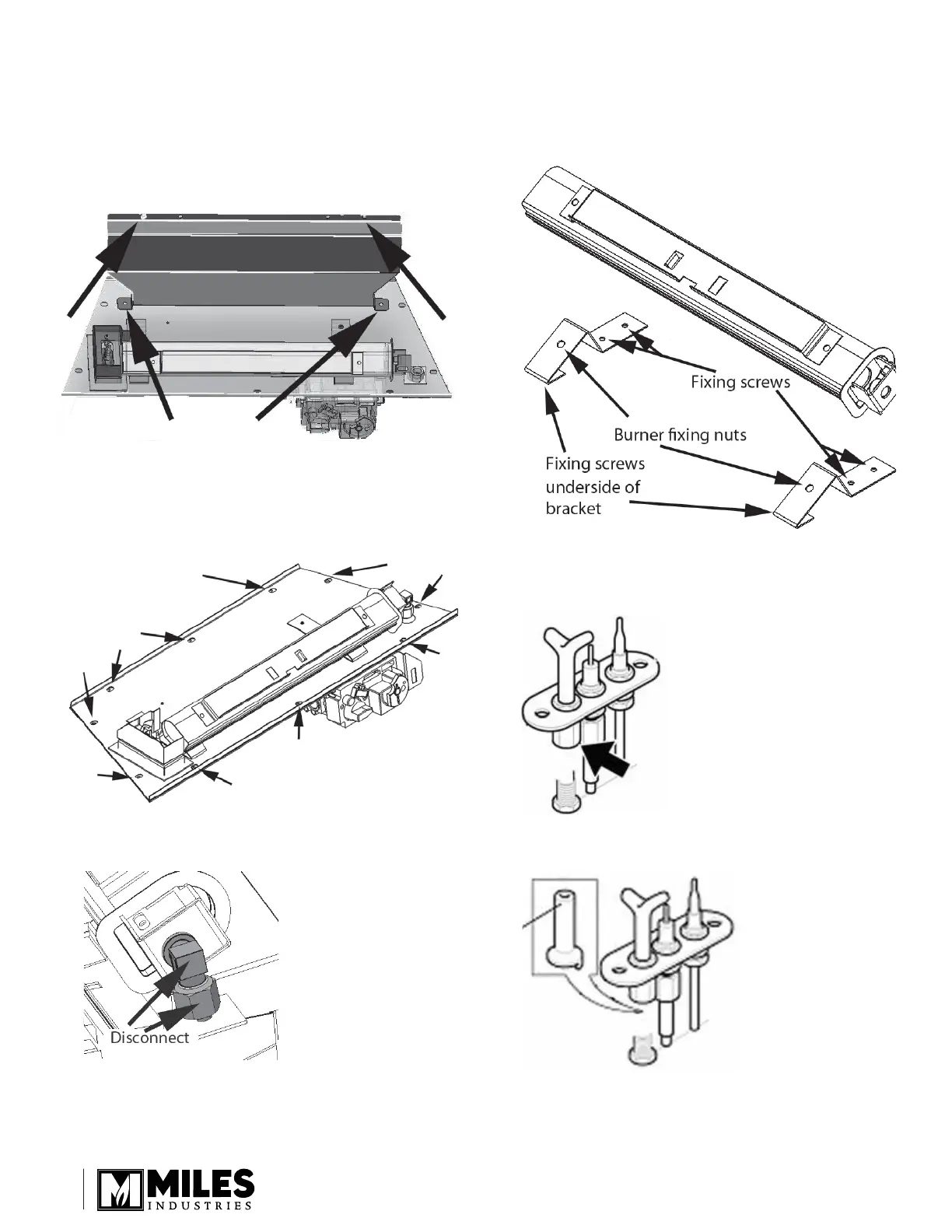

1. If the fi replace is already installed, remove the
window, ceramic logs and brick liners.
2. Disconnect the gas inlet pipe from the inlet elbow
fi tting on the valve.
3. Detach the rear log support by removing 4 screws
as shown.
4. Detach the burner module by removing 10 screws.
If the unit has been burned previously, it may be
necessary to pry the burner module gasket as they
tend to adhere when removed the fi rst time.
5. Disconnect the burner elbow injector from the pipe,
using a 11/16” (17 mm) wrench.
6. Remove the 6 screws (2 underside of bracket)
securing the burner brackets to the burner tray.
7. Detach the two burner support brackets from the
burner by removing two nuts, using a 5/16” (8 mm)
wrench.
8. Accessing the pilot assembly from the underside of
the module, disconnect the pilot pipe, using a 7/16”
(11 mm) wrench.
9. Remove the pilot injector. Replace with the propane
gas injector.
10. Replace the main burner with the propane gas
burner assembly supplied and reassemble the
module.
Note - The pilot
injector should be
slipped onto the
end of the pipe
from the side. The
pilot pipe, with
injector attached,
should be inserted
into the assembly.
