VALPRO VP29S-HC - Page 14

Service and Installation Manual
14 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300

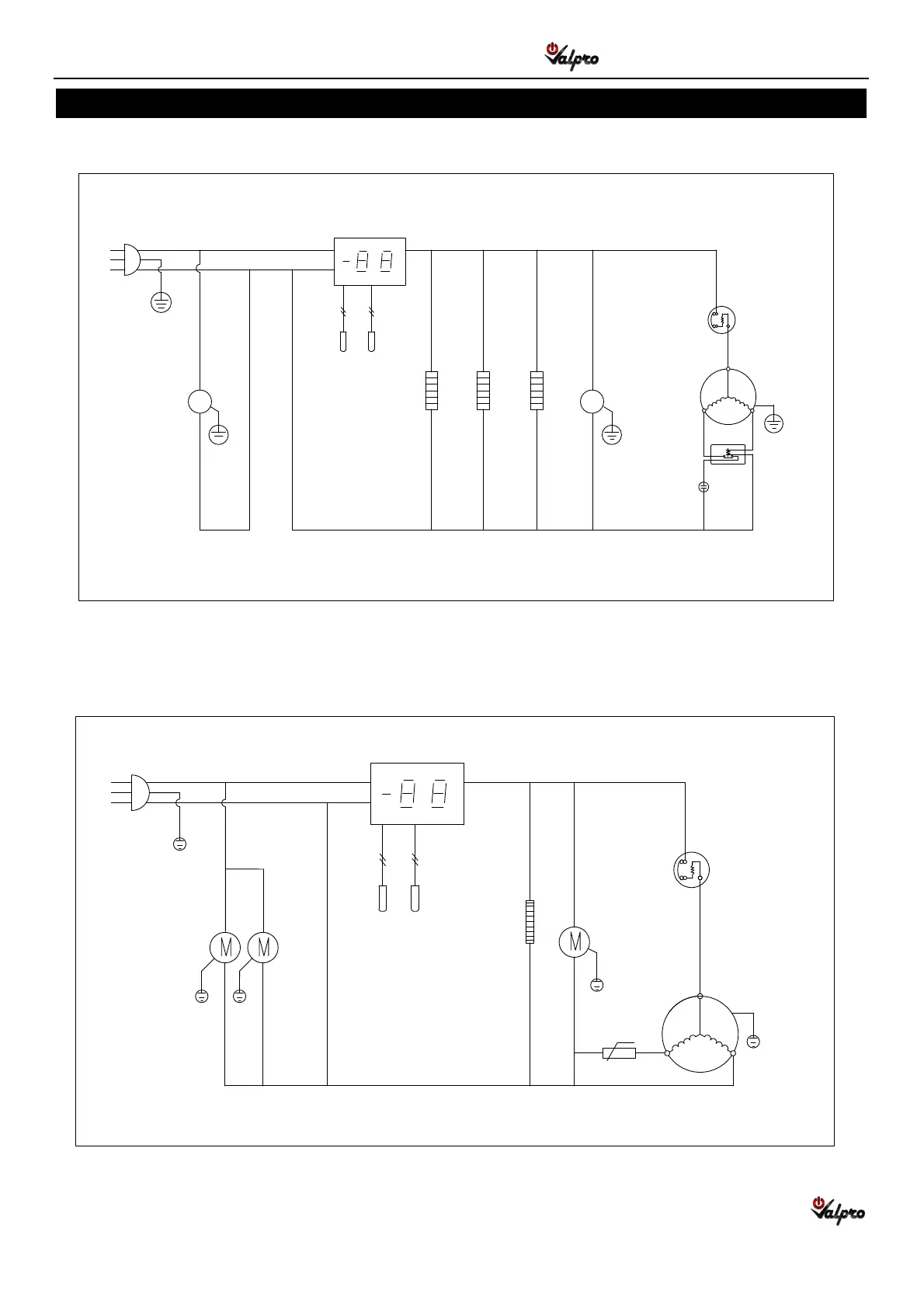

WIRING DIAGRAM
MODEL: VPP94
MODEL: VP29S-HC/VP29SM-HC
PLUG
CIRCUITALION
FAN MOTOR
ROOM
EVAP
SENSOR
THERMOSTAT DISPLAY
DOOR FRAME HEATER
CONDENSER
FAN MOTOR
OVERLOAD
PROTECTOR
COMPRESSOR
t ℃
PTC STARTER
L
N
M
M
L
N
PLUG
CIRCUITALION
FAN MOTOR
ROOM
EVAP
SENSOR
DOOR FRAME HEATER
MIDDLE FRAME HEATER
MIDDLE FRAME HEATER
CONDENSER
FAN MOTOR
STARTING
CAPACITOR
OVERLOAD
PROTECTOR
COMPRESSOR
CURRENT
RELAY
THERMOSTAT DISPLAY
