VALPRO VP29S-HC - Page 15

Service and Installation Manual
For warranty service, call 1-888-VALPRO8 / 1-813-502-0300 15

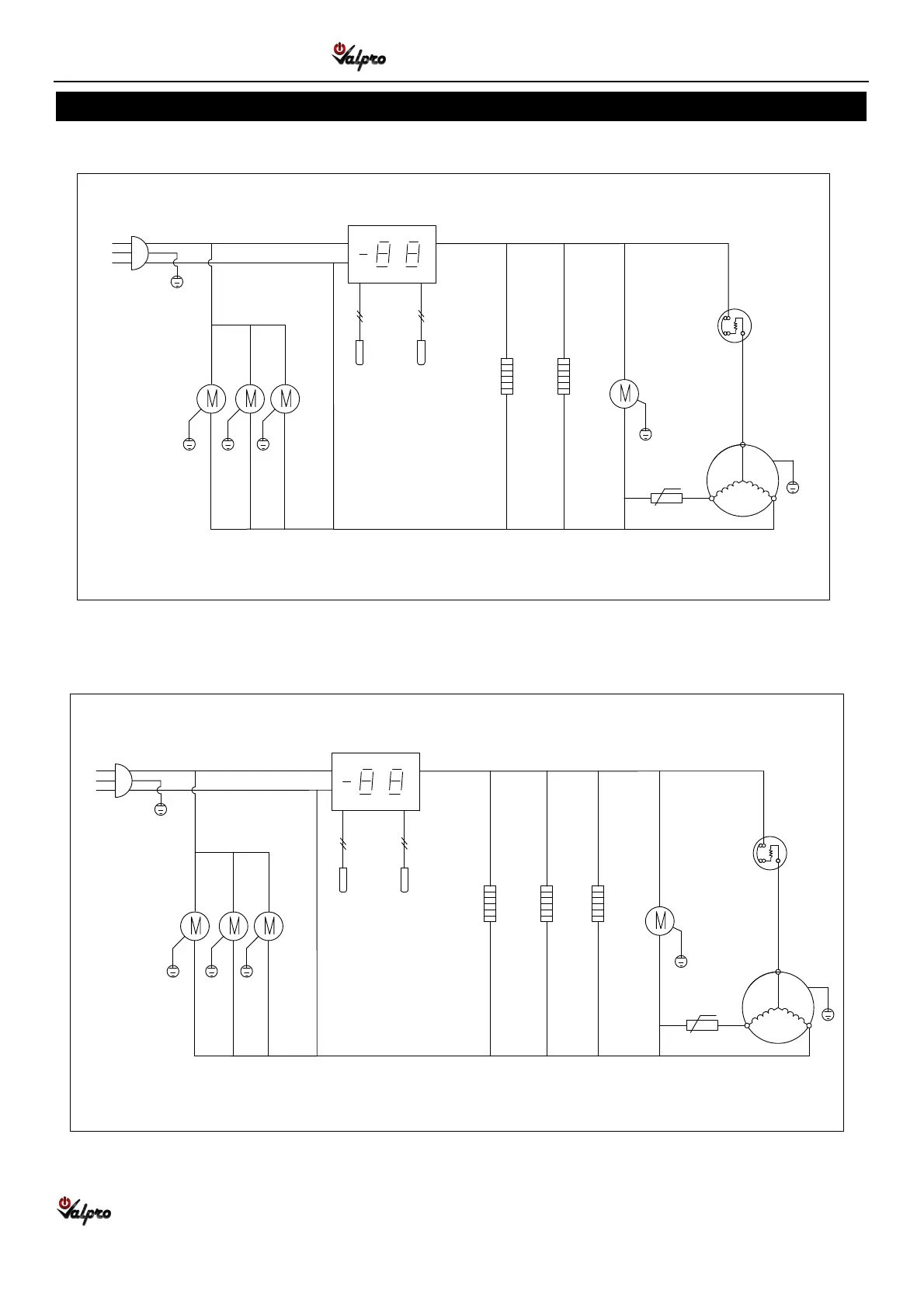

WIRING DIAGRAM
MODEL: VP48S-HC/VP48SM-HC/VP60S-HC/VP60SM-HC
MODEL: VP72S-HC/VP72SM-HC
PLUG
CIRCUITALION
FAN MOTOR
THERMOSTAT DISPLAY
ROOM
EVAP
SENSOR
DOOR FRAME HEATER
MIDDLE FRAME HEATER
MIDDLE FRAME HEATER
CONDENSER
FAN MOTOR
OVERLOAD
PROTECTOR
COMPRESSOR
PTC STARTER
t ℃
L
N
PLUG
CIRCUITALION
FAN MOTOR
L
N
ROOM
EVAP
SENSOR
THERMOSTAT DISPLAY
DOOR FRAME HEATER
MIDDLE FRAME HEATER
t ℃
CONDENSER
FAN MOTOR
OVERLOAD
PROTECTOR
COMPRESSOR
PTC STARTER
