31 BREZZA60 INSTRUCTION AND MAINTENANCE MANUAL
1.8.2 Impeller and shutter cleaning
Impeller and shutter cleaning instructions
3
1
3
1
2

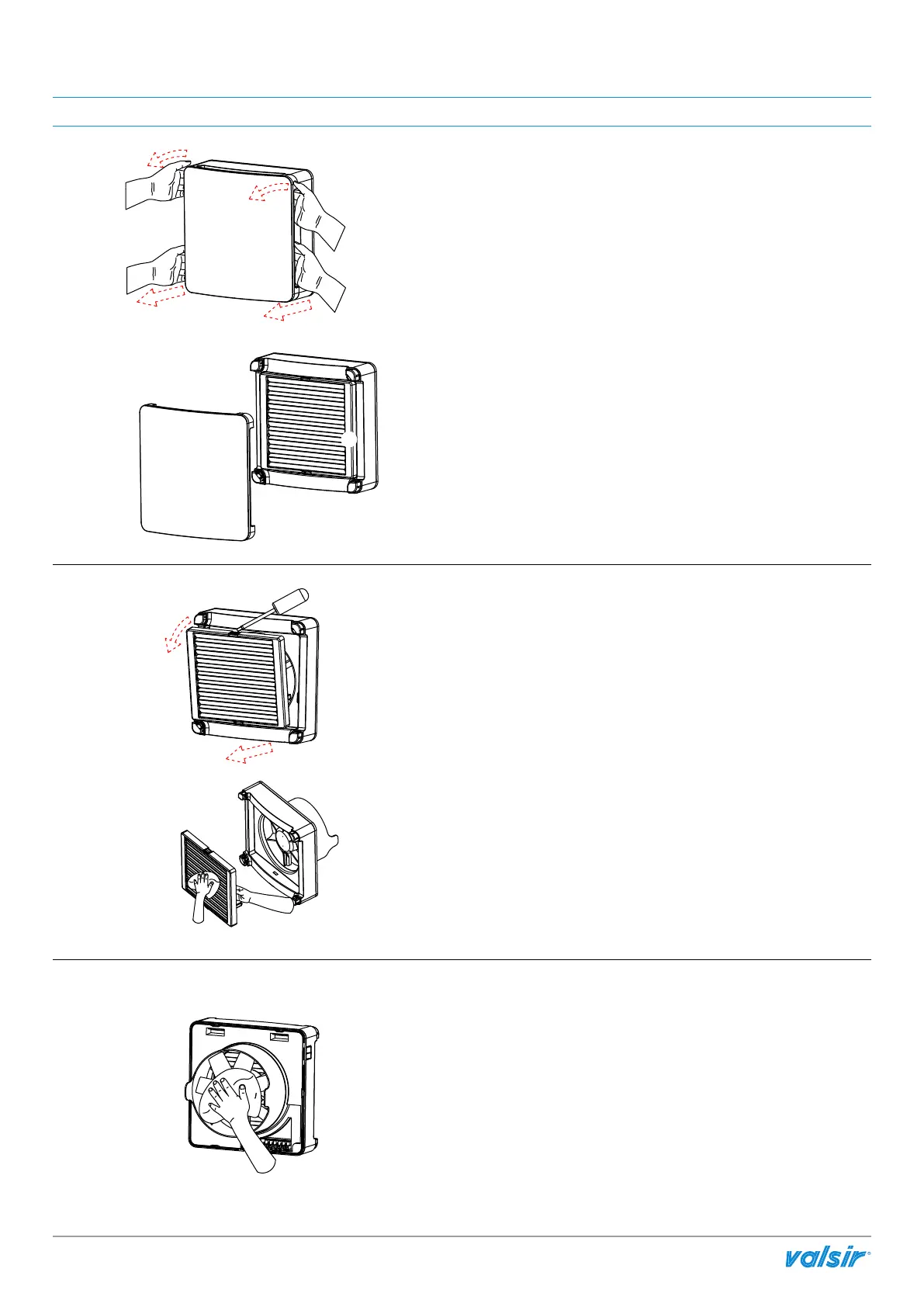

1) Once the cleaning operation has been completed make
sure to re-mount the filters and the heat exchanger in their
location.
Take the main unit group (1 + 2 + 3) and remove the
cosmetic cover (1) by pulling out the upper hooks firstly and
then the lower ones.
2
3
2
3
2) To remove the shutter from the main unit (3) use a flat
screwdriver and prize on the hooks.
Clean any dirt and dust residues on the shutter with a dry
cloth (2).
Carefully re-mount the particular in its location until the
complete assembly.
3
3) Clean the fan blades of the main unit with a dry cloth (3).
