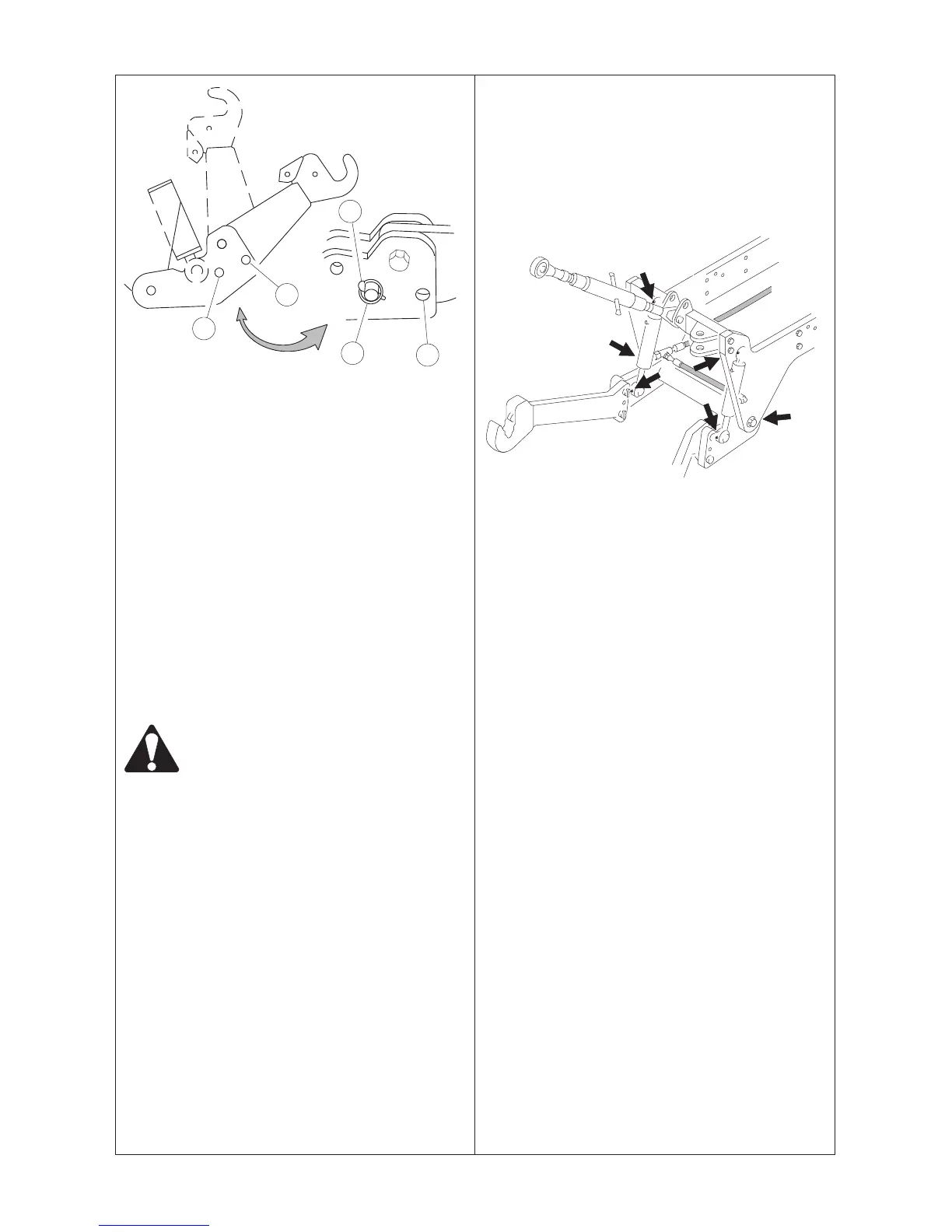

Lifting links positions:
Working position --- the fastening pins are in the holes
(1).
Floating position --- the fastening pins are in the holes
(2).
Transport position --- the lifting links are folded up and
the fastening pins are in the holes (2).
Ensure, that the locking pins of the fastenings pins (3) are
in their places when the lifting links are mounted.
When using the front linkage, read the instructions of the
rear linkage. Note also the following when using the front
linkage:
--- Before folding the lifting links always lift the front linkage
fully up.
--- When driving on public roads, with an implement or
without an implement lift the front linkage fully up.
--- When driving on public roads with an implement on the
front linkage covering the headlights, the upper
headlights (optional equipment) have to be switched on.
WARNING: When you drive on public roads,
and there is no implement on the front
linkage, the lifting links have to be folded
up.
2.
Maintenance
2.1. General
1. Check regularly that all screws and nuts are tight.
2. Tighten all screws and nuts of the linkage after the first
15---25 running hours. Check also that the hydraulic
connections have no leaks.
2.2. Maintenance every 250 hours
69---113
Grease the pins of the lifting cylinders and the shaft of the
lifting links with Valtra Universal Grease.
3.
Specifications
--- Max. lifting force 25 kN, on 2WD models the max load is
1000 kg.
--- The diameter of the lifting cylinders is 60 mm, 2 pcs
--- Lifting range at the end of lifting links, 620 mm
--- The ends of the lifting links can be folded up
--- Quick coupling hooks, category 2
--- Front drawing point is as standard
