Valtra 600 Operator's Manual

---39---

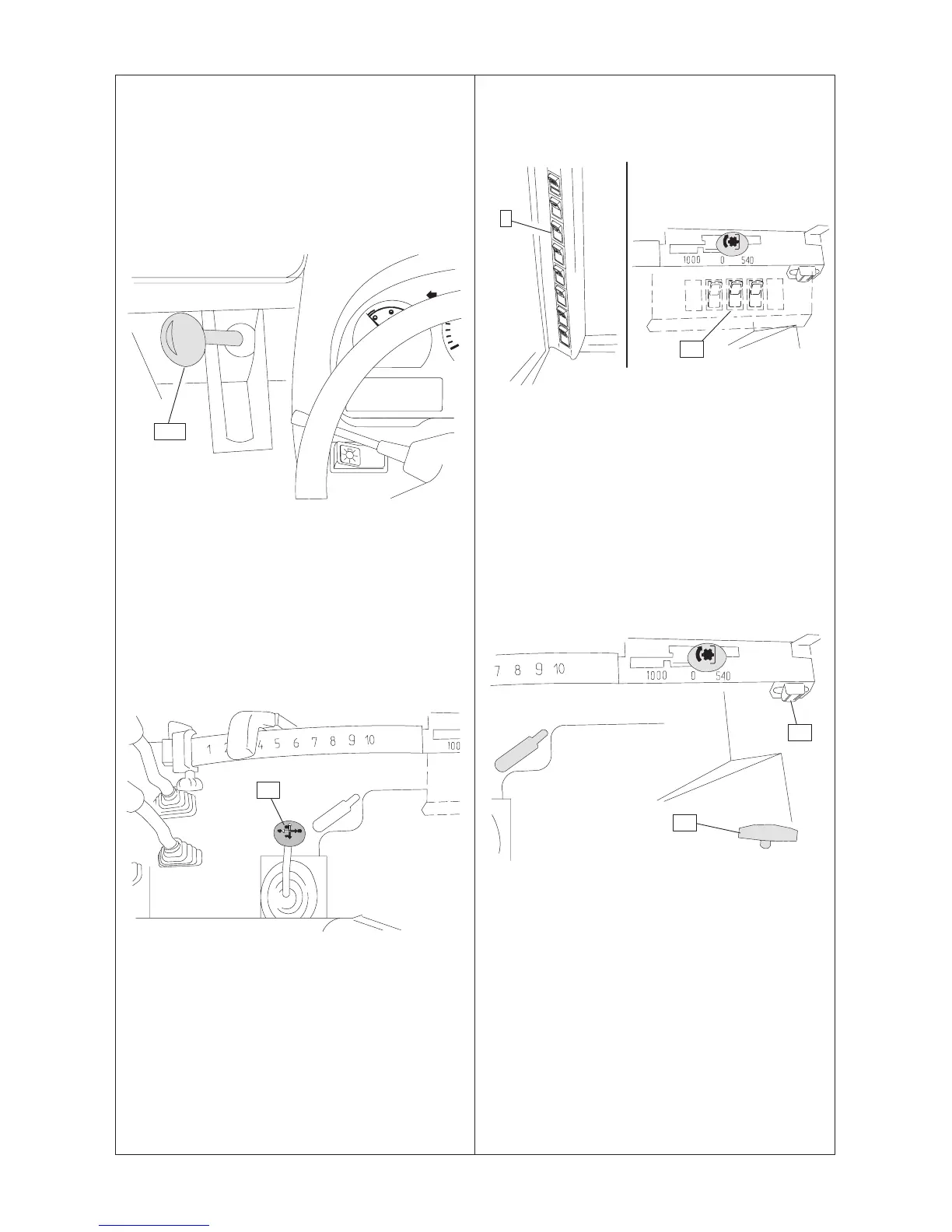

D. Instruments and controls
alternatives:
1000/540
--- the lever left = PTO 1000 connected
--- centre position = PTO disconnected
--- the lever right = PTO 540 connected
540E/540
--- the lever left = PTO 540E connected
--- centre position = PTO disconnected
--- the lever right = PTO 540 connected
3.1A
69---28
When engaging or disengaging the power take---off with
the selector lever, the PTO clutch lever (3.1A) should be in
the rear position (disengaged). The clutch lever (3.1A)
must only be used for temporary disengagement of the
power take---off (further instructions on page 52).
D 2.3.4. Auxiliary hydraulic (4)
D 2.3.4.1. Auxiliary hydraulics, control lever (4.1)
69---28,9
4.1
This lever permits control of single or double---acting
cylinders (e.g. tipping trailer). The outside valve (the upper
double quick---action coupling), is controlled by moving
the lever back and forth, the inside valve (the lower double
quick---action coupling), by left---right movement. When
the lever is pulled back or to the left, pressure acts in the
upper quick---action couplings of the double quick---action
couplings (e.g. tipper control) and vice versa (see
instructions on page 59).
The inside valve can be changed to a single--- or
double---acting by turning the knob under the valve (see
instructions on page 59).
D 2.3.5. Side pillar control panel (5)
5
5.1
69---28,4
Side pillar switches see point “Side pillar control panel” on
page 42.
If the tractor is equipped with a lot of extra equipment
there might not be enough space for all the switches on
the side pillar, In this situation, the rest of the switches are
located on the extra housing (5.1) beside the PTO selec-
tor lever.
D 2.3.6. Other controls (6)
D 2.3.6.1. Trailer hitch release control (extra equip-
ment)
(6.1)
6.1
6.2
69---28,5
When the lower links are in the top position the trailer
hitch can be released by pulling the release control. (See,
Using trailer hitch, operating instructions in section K on
page 127.
D 2.3.6.2. 3---pin power socket (6.2)
More information, see on page 43.
