VAMP Ltd Ethernet adapter

User’s manual

VEA 3CGi

2.1.1. Connection to 100-series relays

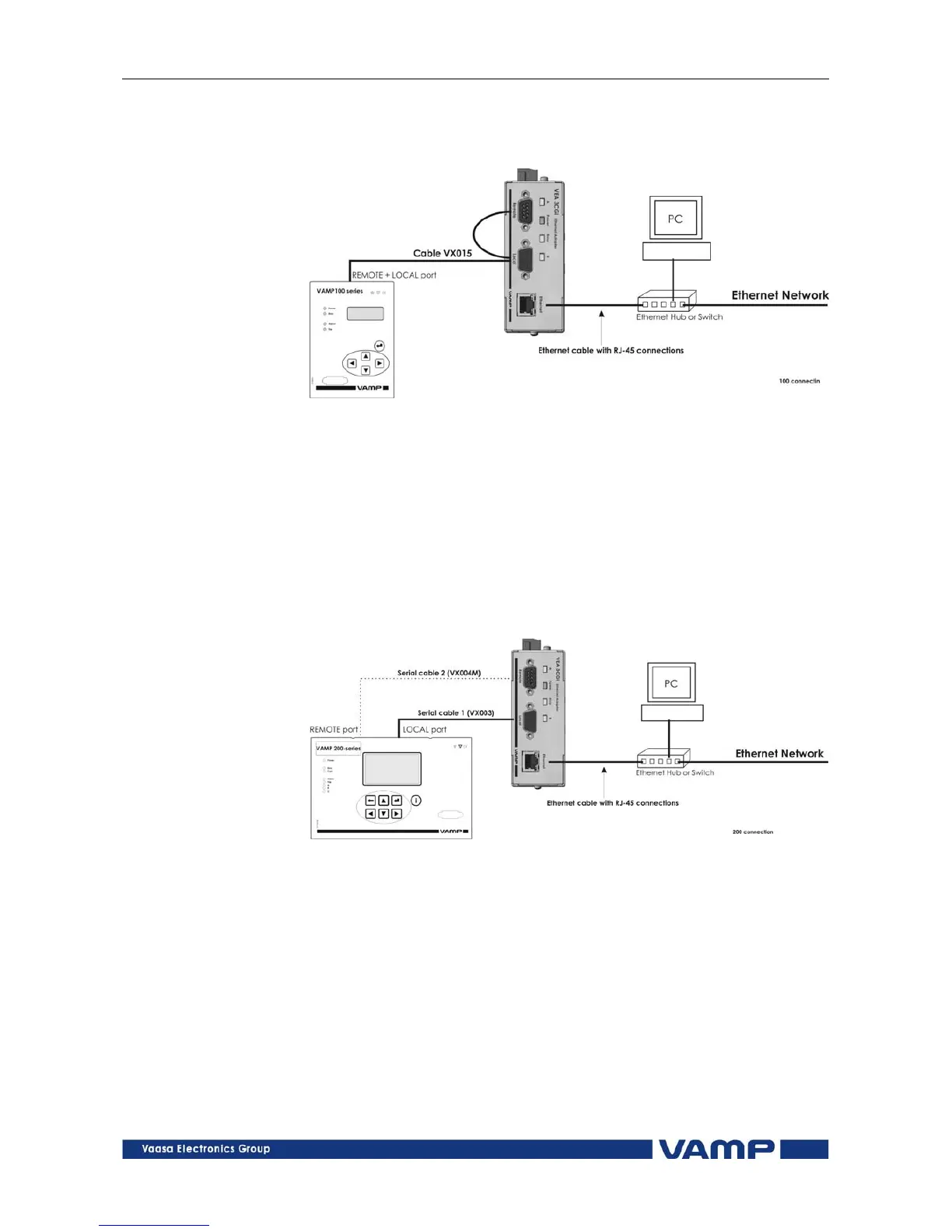

Figure 2.1.1-1 Connection to 100-series relay

 Galvanically isolated.

 Modbus and VAMPSET communication over TCP/IP.

 Powered by VAMP relay via VX015 cable.

 The REMOTE port of the 100-series has both REMOTE

and LOCAL port signals.

 Cable VX015 is connected to both ports of VEA 3CGi.

2.1.2. Connection to 200-series relays

Figure 2.1.2-1 Connection to 200-series relay

 Galvanically isolated

 Modbus and VAMPSET communication over TCP/IP.

 Powered by VAMP relay via VX003 cable.

 Serial cable 1 : RS-232 interface to LOCAL port

- VAMPSET communication

- Clock syncronization

 Serial cable 2 : RS-232 interface to REMOTE port

- Modbus TCP communication

VMVEAi.EN001

Vamp 24h support phone : +358 (0)20 753 3264
