5000/10000 FLYWHEEL GRINDER
MACHINE SET-UP (continued)

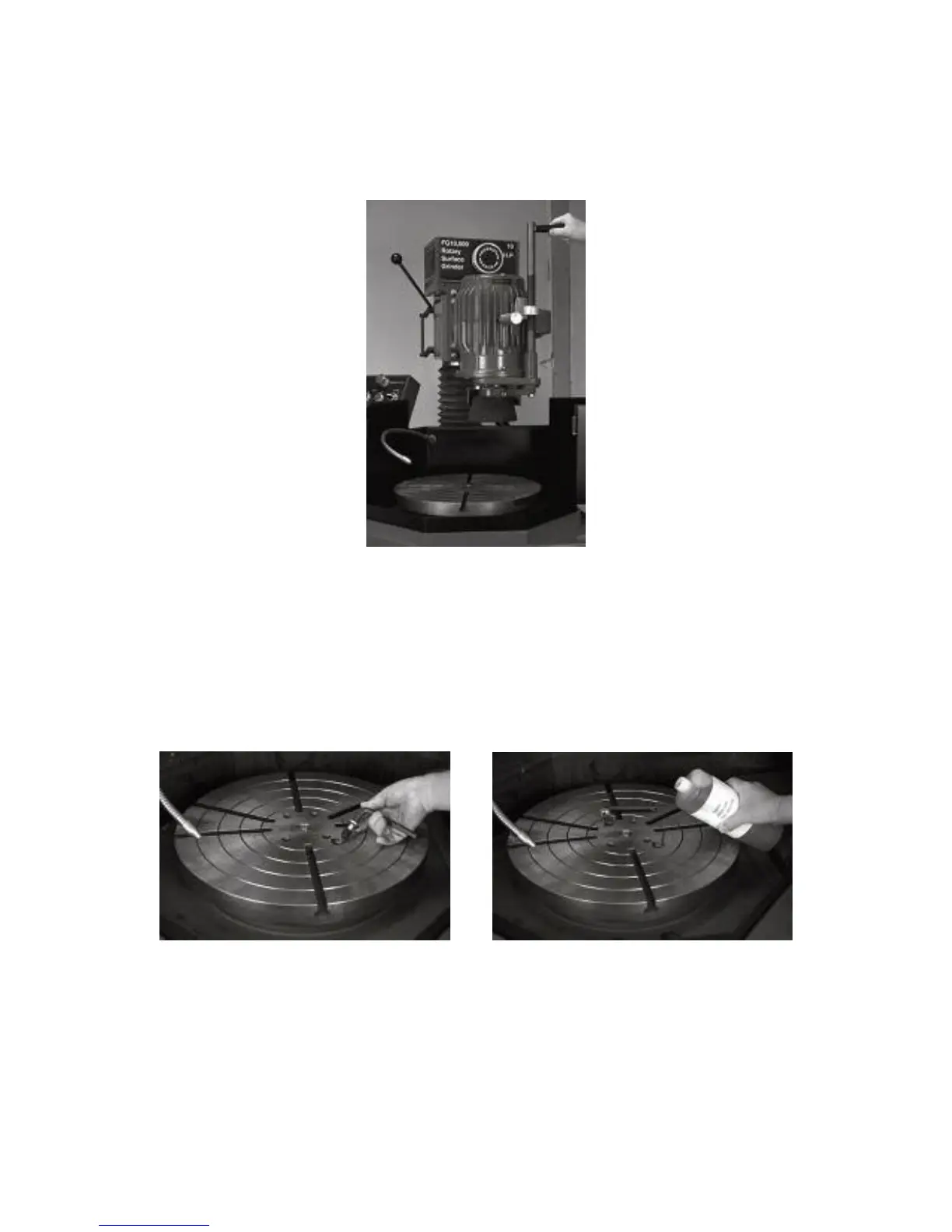

7. Install the plastic handle in wheel dresser (Figure 6)
Figure 6
FILL OIL RESERVOIR
1. Remove the large flat head cap screw from the machine table (Figure 7). Add
approximately one quart Table Lubricant #794-8011-55 to the reservoir through the filler
hole (Figure 8) and replace cap screw. Make certain the small O ring is in place on the
underside of cap screw.
Figure 7 Figure 8
2. Remove the plastic oil container at the rear of the machine from its base by turning
counterclockwise (Figure 9). Invert the container and fill with Table Lubricant 794-8011-55
through the bottom tube. Quickly invert and re-install the oil container, tighten hand tight
only.
Van Norman 20. 888-855-1789
