Van Rysel XCR - Assembly

5
TECHNICAL SPECIFICATIONS
FRAME KIT
FRAME VAN RYSEL XCR
FORK VAN RYSEL XCR
SEATPOST VAN RYSEL XCR
AVAILABLE SIZE XS / S / M / L / XL
HANDLEBAR VAN RYSEL XCR BASE BAR 0mm
FORK SIZES XS / S / M / L / XL
HEADSET
HEADSET BEARINGS 49mm LOWER BEARING & 41,8mm UPPER BEARING
COMPRESSION RING XCR COMPRESSION RING
WHEEL SIZE
MAXIMUM TYRE WIDTH (measured) 700x30C MEASURED
OPTIMAL AERODYNAMICS (measured) 700x25C
BOTTOM BRAKET PRESSFIT BB86
BOTTOM BRACKET SHELL DIAMETER 41mm
BOTTOM BRACKET SHELL WIDTH 86.5mm
DROPOUT AND AXLES
FRONT DROPOUT STANDARD 12X100mm
FRONT AXLE LENGTH 118mm
FRONT AXLE THREAD PITCH P1,0
REAR DROPOUT STANDARD 12X142mm
REAR AXLE LENGTH 164mm
REAR AXLE THREAD PITCH P1,0
SEAT POST
SIZES S : 200mm / S-M : 215mm / L-XL : 290mm
SEATPOST MINIMUM INSERTION 80MM
HANGERS
FRONT DERAILLEUR HANGER BRAZE-ON
REAR DERAILLEUR HANGER STANDARD OR DIRECT MOUNT
GEARING
Chainring size 1X MIN 46T MAX 58T
CHAINRING 2X SMALL CHAINRING MIN 34T MAX 44T
CHAINRING 2X BIG CHAINRING MIN 50T MAX 58T (60T OK if speci󰘰c set up)
CASSETTE SMALLEST SPROCKET SIZE 10T-14T
DRIVETRAIN COMPATIBILITY
electronic groupset only
SHIMANO ULTEGRA & DURA ACE DI2 12S
SRAM ROAD RIVAL, FORCE & RED AXS
BRAKES
Front brake FLAT MOUNT 140 / 160mm
Rear brake FLAT MOUNT 140 / 160mm

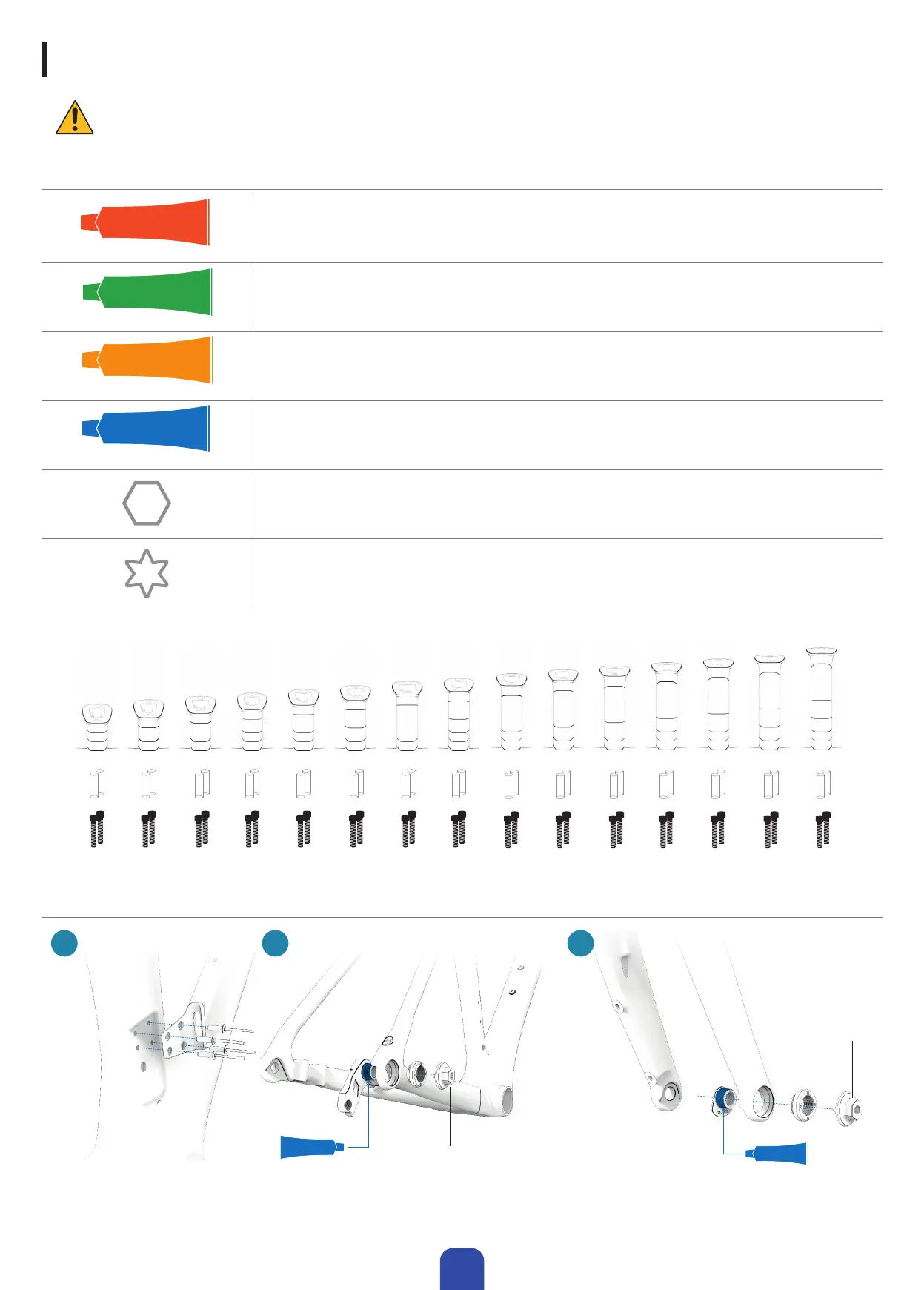

ASSEMBLY
To ensure the handlebars, 󰄋em, seat, seat po󰄋 and wheels are correctly attached, it’s be󰄋 to use the appropriate tools and tighten
each component to its speci󰄈c torque value (in Nm). Please follow the bicycle assembly in󰄋ructions to avoid any safety risks. If you
have a problem, contact a Decathlon workshop to have your bike checked.
LIST OF NECESSARY TOOLS AND SCREWS
ANTI SEIZE
Anti-seize grease: MOTOREX ANTISEIZE
GREASE
Assembly grease: MOTOREX BIKE GREASE
CARBON
Carbon pa󰘵e: MOTOREX CARBON PASTE
MEDIUM THREAD LOCK
Thread lock: LOCTITE 243
Allen keys: 2.5 / 3 / 4 / 5 / 6 / 8
Torx: 25 / 30
10mm
55mm50mm45mm40mm35mm30mm25mm20mm
10mm 10mm 10mm
15mm
15mm
15mm
15mm
20mm
20mm
20mm
40mm
20mm
22.5 27.5
32.5 37.5
42.5 47.5 52.5 57.5
40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm
95mm85mm80mm75mm70mm65mm60mm
62.5 67.5
72.5 77.5
82.5 87.5 92.5
80mm 85mm 90mm 95mm 100mm 105mm 115mm
10mm 10mm 10mm 10mm
15mm
15mm
15mm
15mm
20mm
20mm
20mm
20mm
40mm
40mm
40mm
40mm
40mm
40mm
40mm
PREPARING THE FRAME AND FORK
12 N.m
MEDIUM THREAD LOCK
12 N.m
MEDIUM THREAD LOCK
2 31
Rivets
Length: 10mm
Diameter: 3,2mm
Stem diameter: 2,1mm
