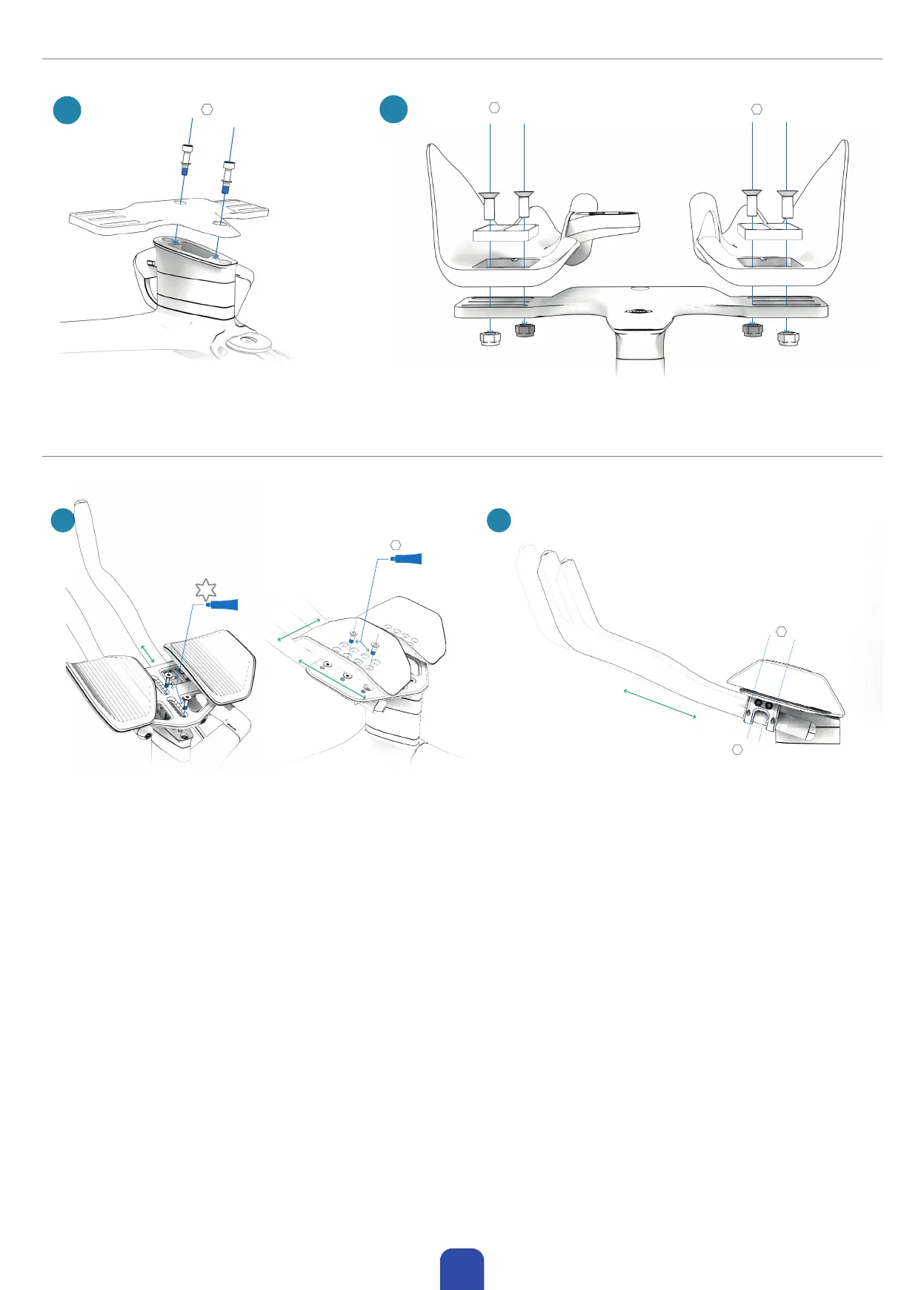

STEM ASSEMBLY
MEDIUM THREAD LOCK
4
6 N.M
1
2
WHEEL AXLES ASSEMBLY
6
10 N.M
6
10 N.M
GREASE
COCKPIT ASSEMBLY (FOR UCI USE)
4
6 N.M
FREIN FILE T M OYEN
4
6 N.M
4
6 N.M
1
2
COCKPIT ASSEMBLY (FOR TRIATHLON USE)
MEDIUM THREAD
LOCKER
MEDIUM THREAD
LOCKER
6 N.M
3
4 N.M
T25
4
6 N.M
4
6 N.M
TRIATHLON
1 2
