1. HDMI IN - Connects to a HDMI source with a HDMI male-male cable
2. IR Blaster - Infrared 3.5mm socket for plugging in the extension cable of IR blaster
3. IR Receiver - Infrared 3.5mm socket for plugging in the extension cable of IR receiver
4. 12 V DC - Connect to 12 V DC power supply
5. Power Indicator Light
6. Status Indicator Light
7. RJ45 (HDMI Signal In) - Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit
8. HDMI OUT - Connect to a HDMI display with a HDMI male-male cable
9. IR Blaster - Infrared 3.5mm socket for plugging in the extension cable of IR blaster
10. IR Receiver - Infrared 3.5mm socket for plugging in the extension cable of IR receiver
11. 12 V DC - Connect to 12 V DC power supply
12. Power Indicator Light
13. Status Indicator Light
14. RJ45 (HDMI Signal In) - Plug in the Cat-5/5e/6 cable that is linked to the transmitting unit

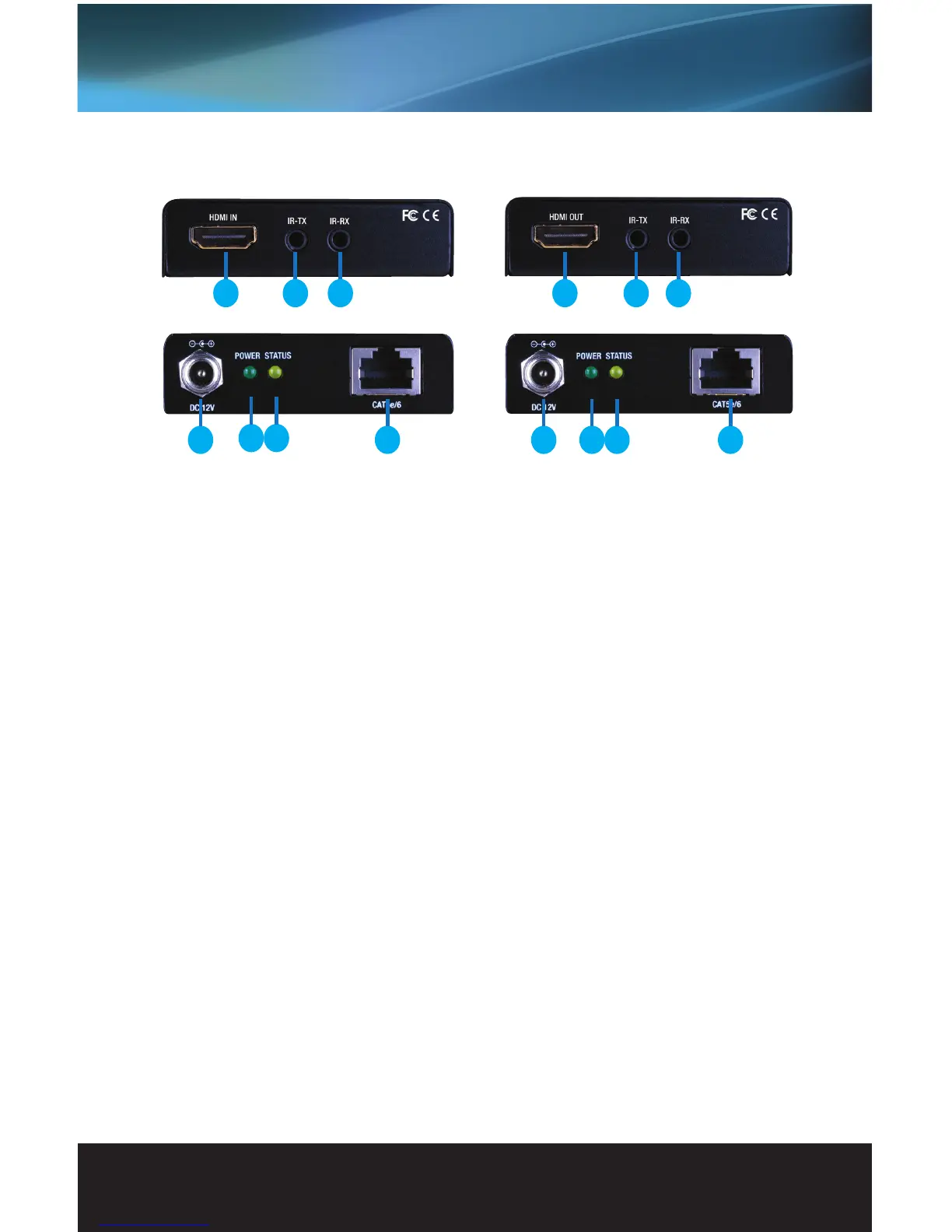

PANEL DESCRIPTIONS
1 2 3
4
5 6
7
8 9
10
11 12
Transmitting Unit Receiving Unit
13 14
EDID
The EVEX2006 is equipped with EDID management, however there is no need to adjust any dip switches or
dials, the unit automatically reads the EDID from the display and save it internally. This feature was created
for the installer in mind, for a plug and play installation
