6

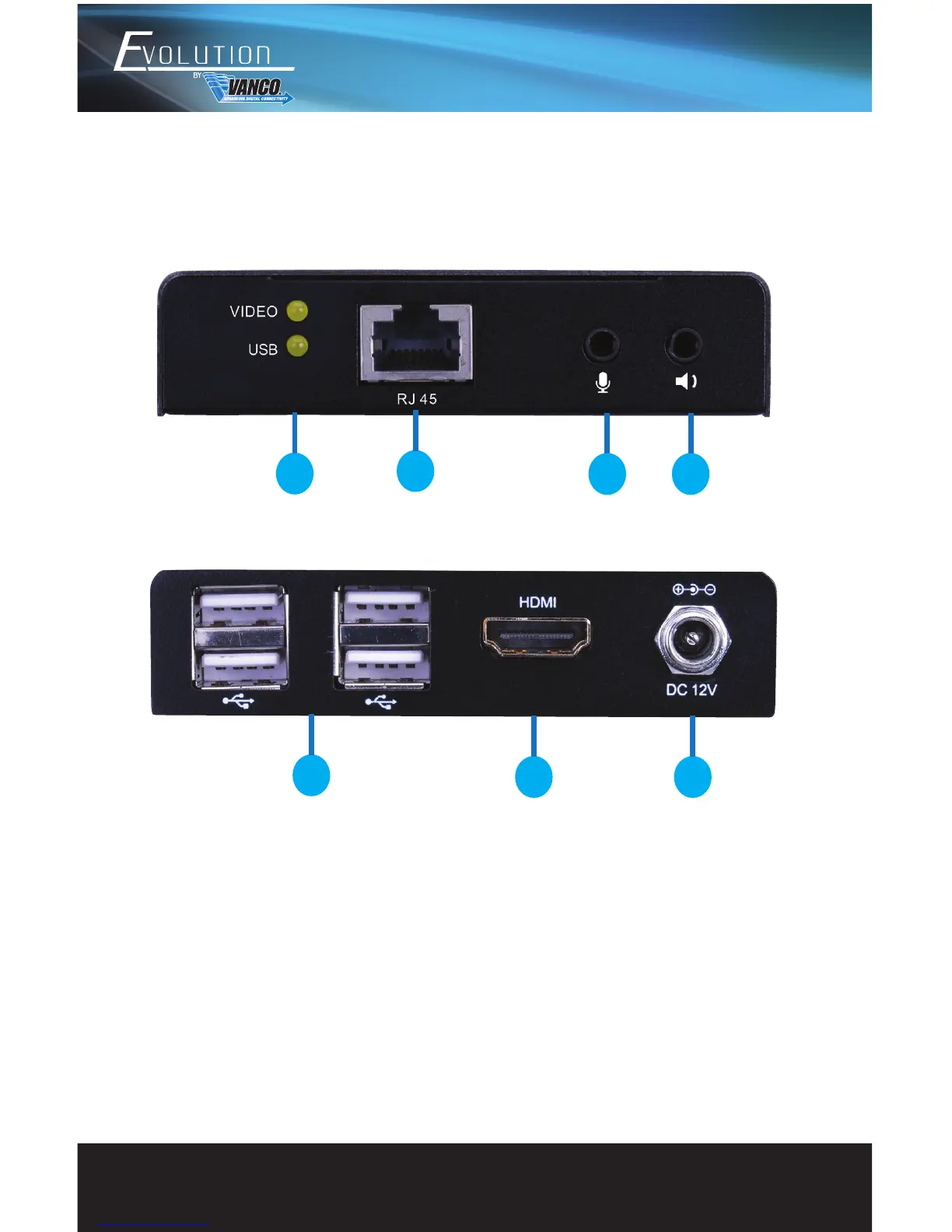

PANEL DESCRIPTIONS
1. STATUS LEDs: “Video” illuminates when a signal is being received from the TX unit; “USB” illuminates when
USB port is connected to a compatible source
2. RJ45 PORT (connect a single home run Cat5e/6 cable)
3. MICROPHONE INPUT: Connect a microphone that is compatible with the source (test by connecting
microphone directly to the source)
4. AUDIO OUT/EARPHONE PORT: Connect an earphone or similar device that is compatible with the source
(test by connecting microphone directly to the source)
5. USB 2.0 PORTS: Connect any 2.0 USB capable device such as keyboard or mouse to control the source
6. HDMI OUTPUT: Connect an HDMI display such as an HDTV or Projector
7. DC 12V: Connect the included power supply to power the extender unit (Powering this unit up requires no
power supply needed at the TX unit)
4
1
2
3
6
5
7
EVEXKVM1-RX (Receiver Unit)
