NOTICE
1. Vanco HDMI and Cat5e/6 cables are strongly recommended for use with this product to ensure best
results.
2. The transmission length is largely affected by the type of Cat5e/6 cables utilized, the type of HDMI
sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of
300m [1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the
form of xed length patch cords). Shielded STP cables are better suited than unshielded UTP cables.
A solid UTP Cat5e/6 cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, use solid UTP/STP category cables.

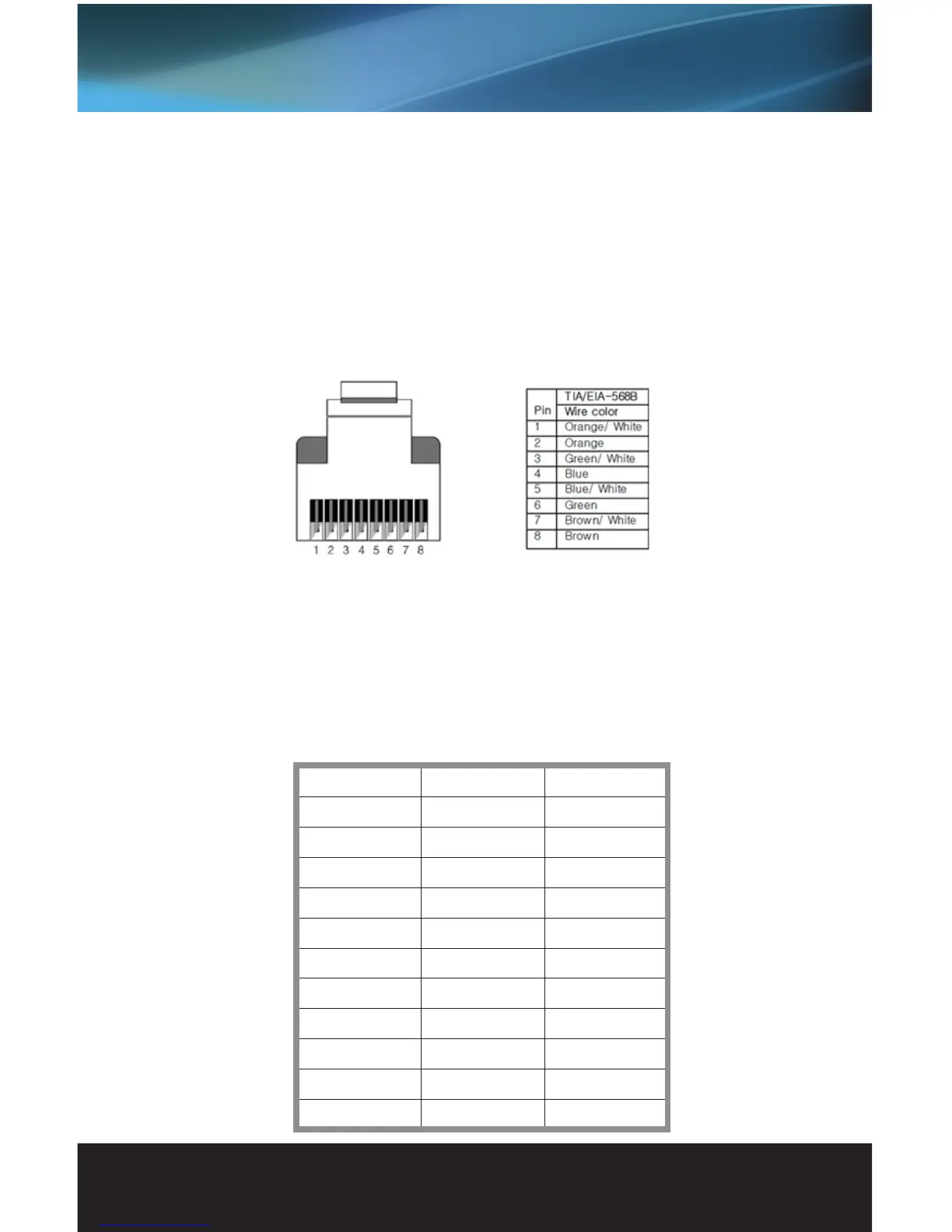

3. EIA/TIA-568-B termination (T568B) for Cat5e/6 cables is recommended for better performance.
4. To reduce the interference among the unshielded twisted pairs of wires in Cat5e/6 cables, one can use
shielded STP cables to improve EMI problems, which worsens in long cable transmission.
5. The quality of Cat5e/6 cables can have a major effect on how long the transmission limit can achieve and
quality of picture, the actual transmission range is subject to the Cat5e/6 cable utilized. For the best results,
Cat6 is recommended.
6. If your HDMI display has multiple HDMI inputs, it is found that the rst HDMI input [HDMI input #1]
generally can produce better transmission performance among all HDMI inputs.
Hactive Vactive Frequency
720 576 50Hz
720 480 60Hz
640 480 75/60Hz
800 600 75/60Hz
1024 768 75/60Hz
1280 800 60Hz
1280 1024 60Hz
1440 900 60Hz
1680 1050 60Hz
1280 720 25/30/50/60Hz
1920 1080 25/30/50/60Hz
RESOLUTIONS SUPPORTED
