7

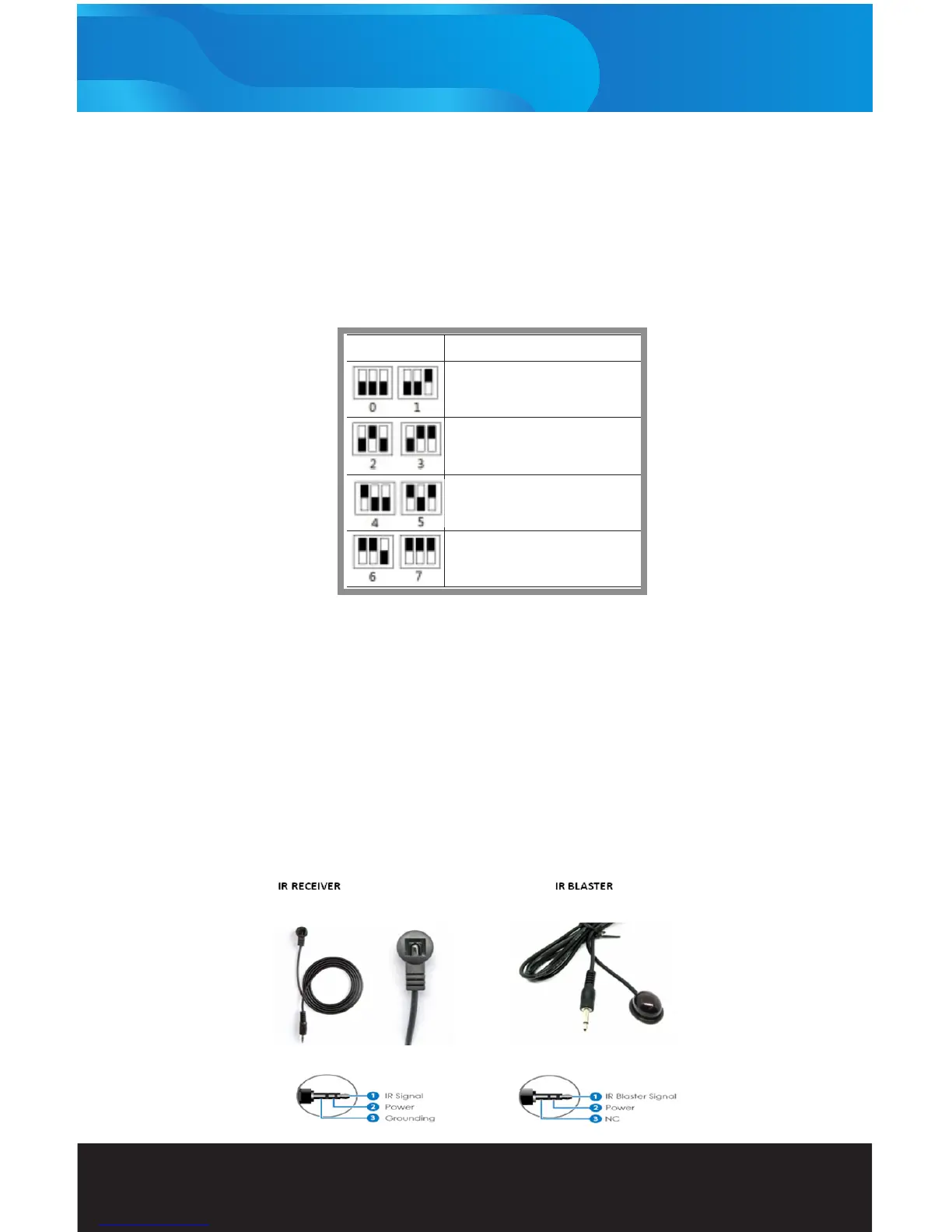

If you encounter ickering, blinking or distortion on the display, changing the EQ switch
settings can improve the image. Use the chart below as reference but remember that
couplers, wall-plates, or patch panels can result in different settings being needed.
Position Cable Length
Under 15m (49.5)
15-50m (49.5 - 99)
20-40m (99 - 132)
40-50m (132 - 164)
RECEIVER EQUALIZATION
ADJUSTMENTS
IR
The IR control can receive an IR signal from TV end to control the source (Blu-ray DVD),
as well as from a control system or rack to control a display. u-ray DVD), as well as
from a control system or rack to control a display.
1. Insert the 3.5mm IR TX Emitter included with the unit into the IR TX Emitter port.
2. Some later adjustment may be needed to the location of the sensor to achieve the best performance
results - sometimes moving the sensor to different areas on the source can improve IR performance.
3. Insert the 3.5mm IR RX Receiver included with the unit into the IR RX Receiver port.
