Vante SEBRA MINI 2380 - Component Identification; Figure 2-1, 2380 MINI Hand-Held Tube Sealer Components; Figure 2-2, Model 2380 Power Interface Panel

7
P/N VT-108723-US, Manual revision: C Vante
®
SEBRA
®
MINI
™
Tube Sealer Power Source
1.
3.
2.
4.
5.
6.
Component identification
1. Model 2380 RF power
source
2. Operation manual
3. Model 2380200 battery
pack
4. Model 1103 RF power
cable (Optional Model
1109 coiled cable not pic-
tured)
5. Carrying strap
6. Battery charger
7. Power cord
8. Carrying pouch
2-1 shows the component Sealer parts.

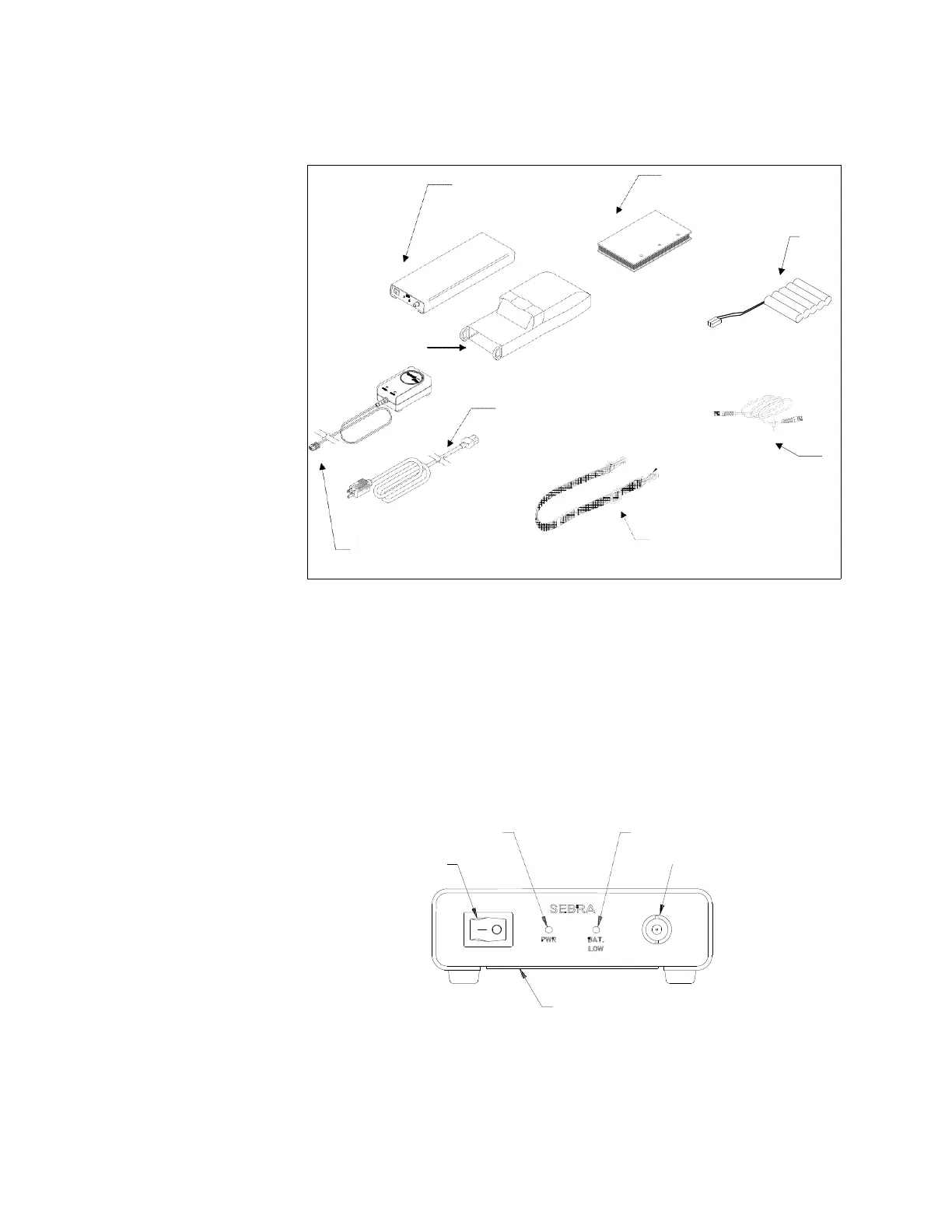

Figure 2-1, 2380 MINI™ Hand-Held Tube Sealer Components
Shown in 2-2, is the power interface panel on the front of the RF power source.
The serial plate (2-3), located on the underside of the RF power source,
indicates the model number and serial number of the unit.
Refer to the serial number when contacting Vante
®
Customer Care Center. See
Table 2-1, “2380 Sealer Component Functions,” on page 8 for a
complete
description of the functions of the indicated items.
RF Ready Light
Power Switch
Battery Low Indicator Light
RF Power Outut
Serial Plate on Underside of Unit
Figure 2-2, Model 2380 Power Interface Panel
1.
2.
3.
8.
7.
4.
6.
5.
