P/N VT-108723-US, Manual revision: C Vante
®
SEBRA
®
MINI
™
Tube Sealer Power Source
14

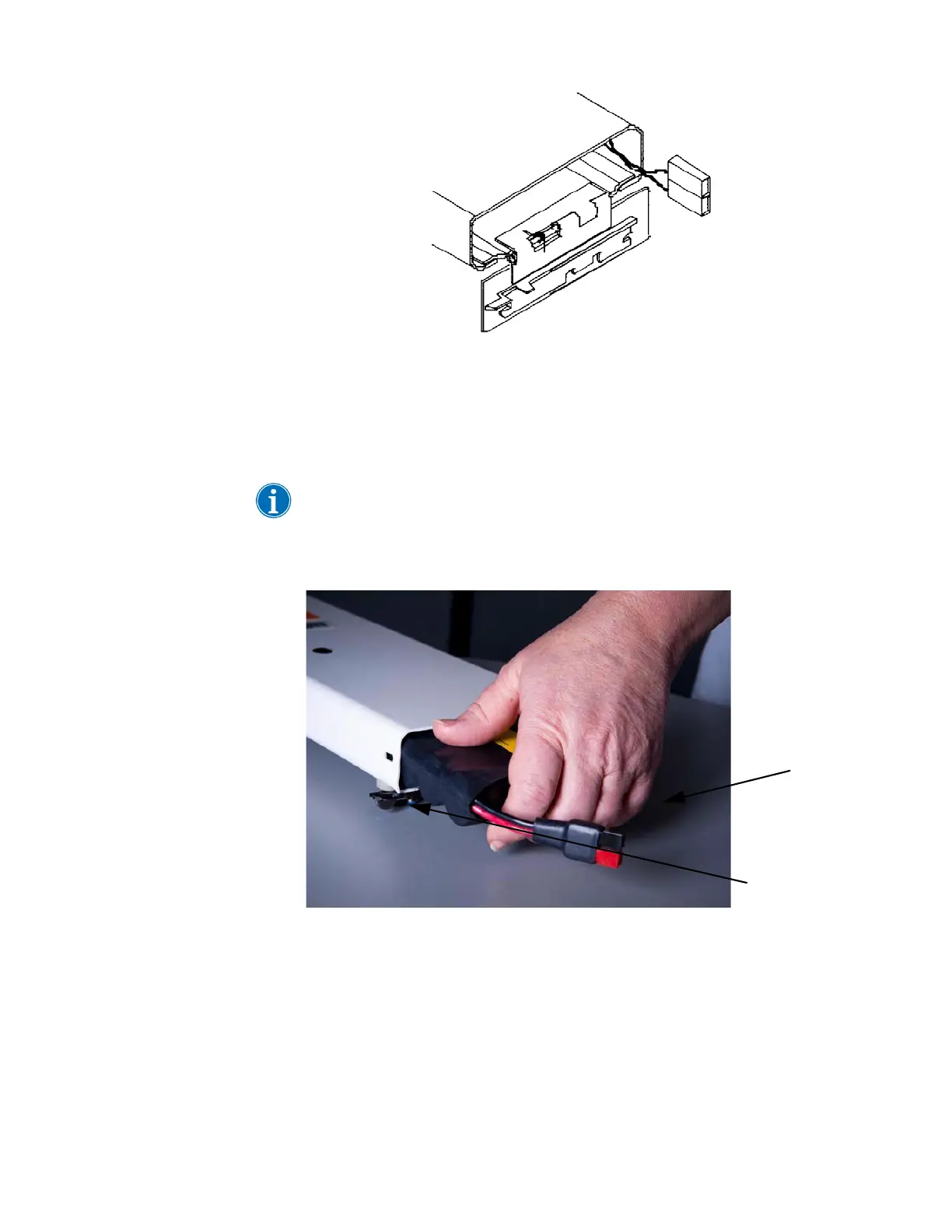

Figure 3-2, Battery Connector Location
5.
Ensure the connectors are positioned on the side (not the top or bottom)
of the battery. Slide the battery into the battery compartment by holding
the battery underneath and ensuring the wires are aligned properly (See
3-3, below).
Note: Ensure the latch is underneath the device and position hand underneath
the battery while inserting in the case. This prevents any damage to the wires
or battery. Do not pull on the wires.
Position hand
underneath
batteryto insert
Latch is
underneath
device.
Figure 3-3, Properly Installing the Battery
6.
Once the battery is fully seated, engage the RF power source connector
to the battery connector. See 3-4.
