6. OWM7111IOT Mounting instructions
Notes:
• Any accessories, like screws, mounng holders should not be replaced by the
end user.
• The installer should be well trained and well understanding the FCC related
rules.
• The installer will not make any change which may break the FCC rules.

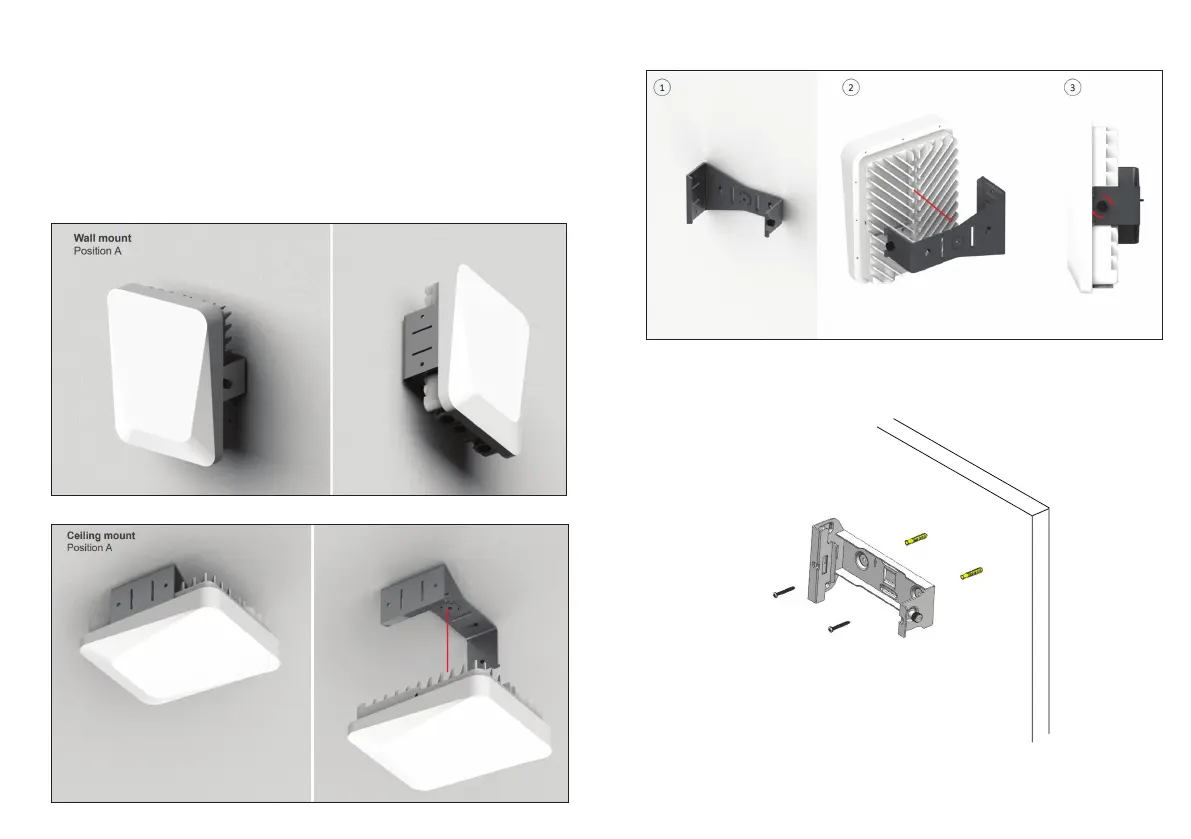

6.1. Wall/ceiling mounting in Postion A
Wall/Ceiling mounted - Position A
1 Assemble bracket on wall by screws, using:
2Pcs screw: M5x40mm
2pcs plasc anchors
2 Assemble product on bracket.
