Varia VS3 - Burr Change; Reassembly

USER MANUAL
5.2 Burr Change / Reassembly
B
D
E
F
H
A
C
G

K
J

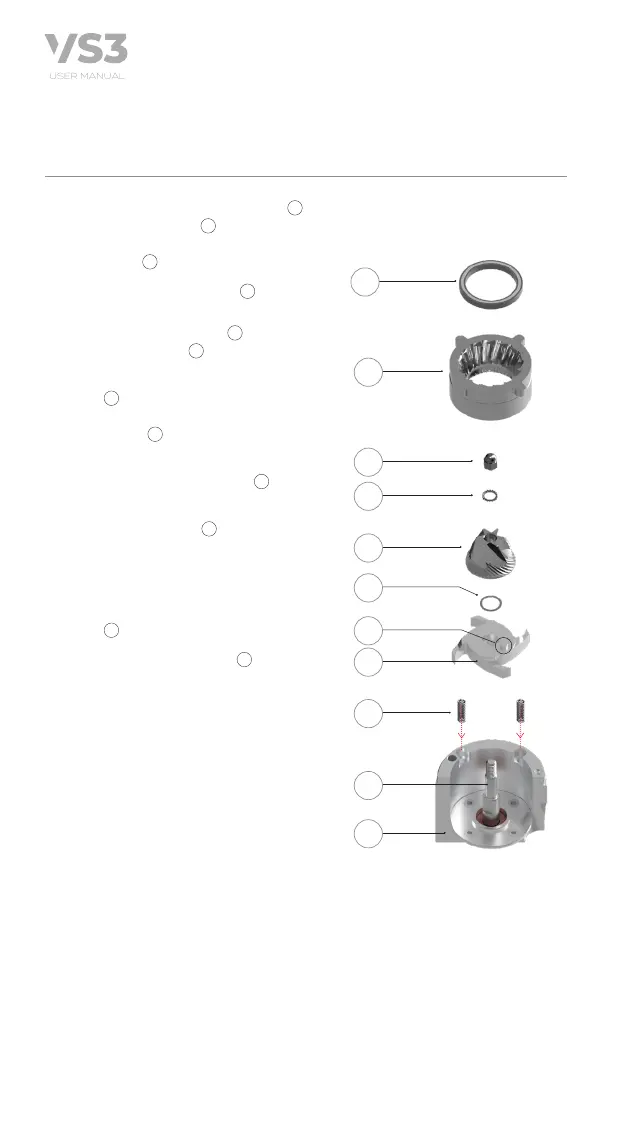

1. Lower the lower grounds spindle
H
onto the driveshaft
J
, lining up with
the corresponding flat side on the
driveshaft
J
.
2. Then place a thin washer
F
on top
of the grounds spindle.
Replace the 4 x springs

back into
the burr chamber
K
.
3. Place the new or cleaned inner
burr
E
onto the grounds spindle,
rotate until it engages with the
locking pin
G
on the grounds
spindle.
4. Replace the locking washer
D
on
top of the inner burr.
5. Replace the set nut
C
onto the
driveshaft thread and use the tool
to tighten - in an anti-clockwise
direction.
6. Replace the new or cleaned outer
burr
B
back into the burr chamber.
7. Replace the ring bearing
A
on top
of the outer burr housing - ensuring
this ring bearing fits inside the cavity
before the next step.
8. Replace the adjustment collar and
hopper and tighten the hopper to
the “0” point.
9. Dial in your required grind setting.
10. Lastly, replace your lid and power
supply and you are ready to grind.
