Varian ProStar - Page 44

INJECT
ADVANCE
PEAK
A-GND
ANALOG
RACK
EVT MARK
+13VDC
GND
CHASSIS
OUTPUTS INPUTS
1234 5

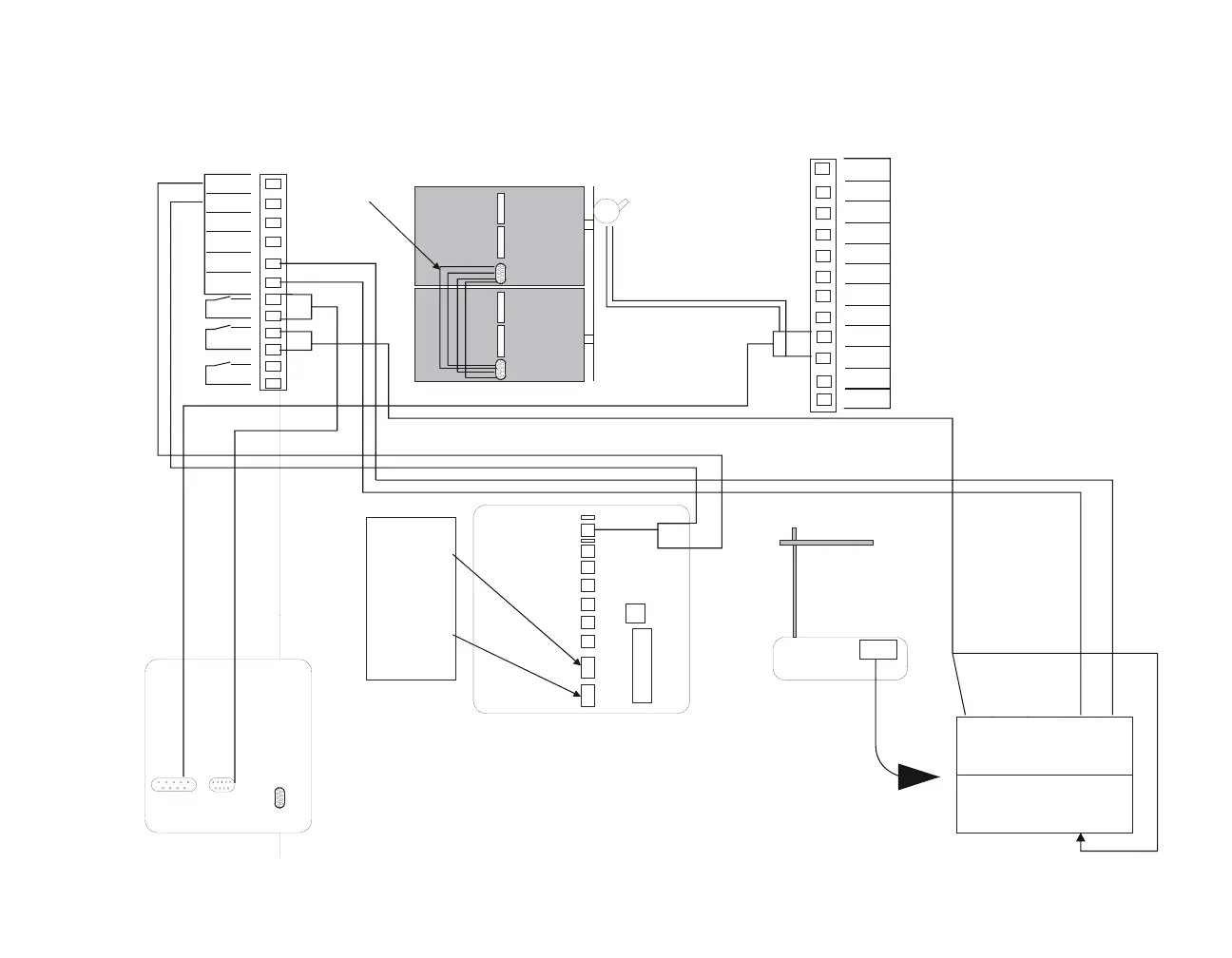

210/215/218 Pump (Master), 310
UV Detector, and 410 AutoSampler
ProStar 701
Position sensing
switch of
Rheodyne
manual injector
is connected to
Start In
210/215/218 Pump
Sync cable for
ProStar 410
AutoSamplers
0393516301
Start In -
Start In +
Ready In -
Ready In +
Fault In -
Fault In +
Gnd
Gnd
J9
Start Out -
Start Out +
Ready Out -
Ready Out +
Fault Out -
Fault Out +
Ready In enable
+5V
J10
1v 10V (switch)
1mV
10mV (switch)
Data system
output 2AUFS
Chart recorder
Output
Peak sensing relay
Device Address
Relay 1
Relay 2
Relay 3
Relay 4
J9
J10
Syn
Signal
ProStar 310 UV-Detector
ProStar 410 AutoSampler
3
1
2
ANALOG
OUT GRD
INTGR 1
HI
INTGR 1
LOW
INTGR 1
GRD
CHASSIS
GRD
ANALOG
OUT
AUX
+5V
AUX
GND
STOP
D GRD
HOLD
D GRD
TRANSFER
D GRD
INJECT
D GRD
MARK
D GRD
Shielded cable
R007200141
Extension
cable
R000815107
Shielded cable
R007200141
P1 cable P2 cable
Shielded cable
R007200141
Detail
