11-03
EP E series
Illustrations may differ from the actual product
Allowing for printing errors and errors on proofs
15

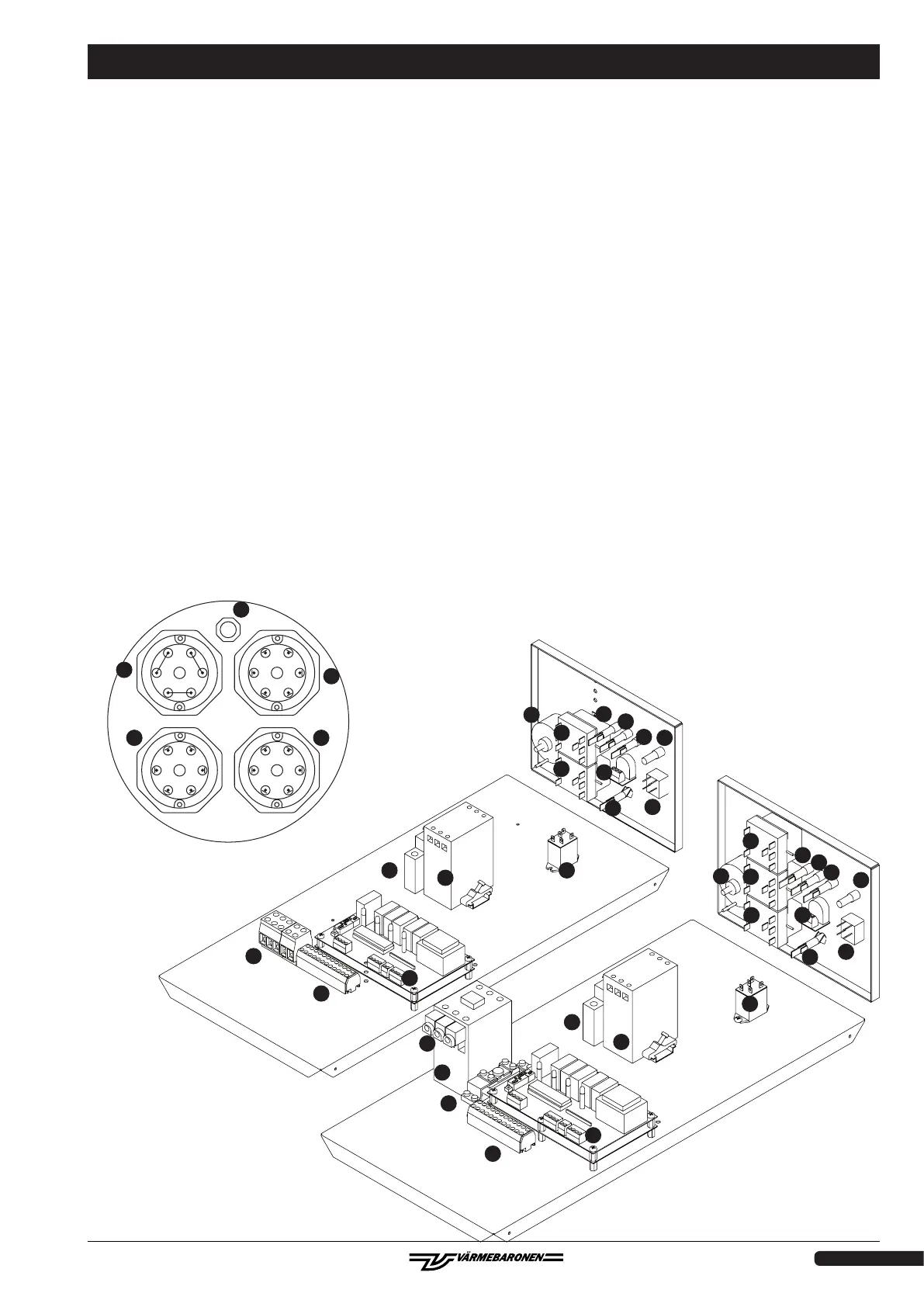

Components
EP 26 E
EP 42 E
EP 26 E
EP 42 E
22
21
41
22
22
1
2
7
8
1
7
8
12
9
10
14
11
15 13
16
19
18
12
17
38
9
14
15
10
13
11
18
17
19
20
38
40
39
Ref. Product no. Name 26 E 42 E
923 03 Panel 1 1
21 11 00 16 Immersion heater 6 kW - 1
22 11 00 19 Immersion heater 7.5 kW 3 -
22 11 00 44 Immersion heater 12 kW - 3
21 11 00 49 Immersion heater 3.75 kW 1 -
16, 17, 18 12 00 25 Overheat protection 2 3
14 13 00 32 Switch 2-pole 1 1
15 00 51 Set of wires for EP 42E - 1
15 00 54 Set of wires for EP 26E 1 -
1 16 00 03 Terminal block 12-pole 1 -
2 16 00 04 Terminal block 2-pole 1 1
2 16 00 05 Terminal block 3-pole 1 1
16 00 06 End plate 1 1
16 00 09 Jumper 2-pole, 6mm 1 1
16 00 11 Jumper 4-pole, 6mm 1 1
16 00 12 End support 2 2
16 00 13 Bar bracket 1 1
40 16 00 18 Neutral terminal NPF 35 - 1
6
6
40 16 00 20 Earth bar JS 35 - 1
39 16 01 05 Terminal 100-CT43 - 3
13 17 00 06 Relay 1-pole alt. 1 1
19 17 00 06 Contactor 100-C30, 230V 1 1
20 17 00 75 Contactor 100-C43, 230V - 1
15 18 00 22 Circuit breaker 1-pole, 6 A 1 1
12 19 00 06 LED 230 V, red 1 1
6,9,10,11 19 00 10 LED lens 10mm 1 1
6,9,10,11 19 00 20 Conxrite cable with sleeve 1 1
6,9,10,11 19 00 21 Conxrite lens 1 1
6,9,10,11 19 00 22 LED 5mm green 1 1
7 21 01 02 Potentiometer OX7E 1 1
4 21 02 00 Temperature sensor, 1800 mm 1 1
8 21 02 17 PCB OX 7E-125 1 1
34 24 03 50 Drain valve R15ext 1 1
41 24 62 51 Immersion tube 9x1x100 DN 10 1 1
30 00 17 Viton O-ring 56x3.53 4 4
36 00 21 Current transformer 3 3
38 38 00 03 Thermometer 0-120°C 1 1
