VarTech Systems VT121XA4 User Manual

6
VT121 All Weather User’s Guide 150-183

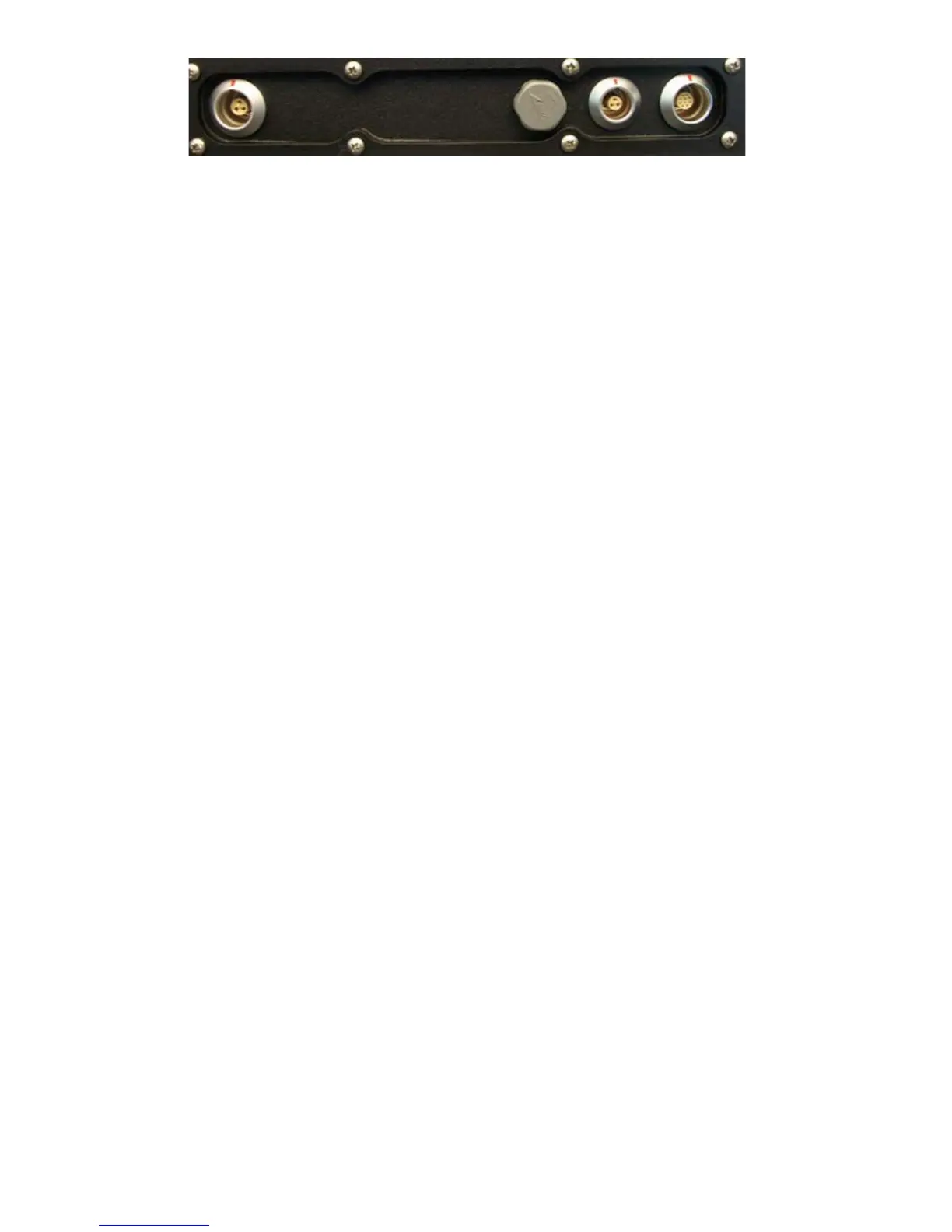

Typical Input Assembly
Connect to an Analog Video Source
All of the monitors support analog video. Your monitor is shipped with a high-quality analog video cable.
Use this video cable to connect a computer to the monitor.
Follow these steps to connect the monitor to an analog video source.
1. Connect one end of the 3 m (10 ft), analog video cable to the circular, 10pin VGA video input connector
on the monitor. Careful to align the red lines
2. Connect the other cable end to the VGA port of the computer.
You can use a couple to join to another cable with a maximum combined length of 15 m (50 ft) at lower monitor
resolutions, provided it is a high-quality video cable. Video amplifiers are available for longer distances.
GETTING STARTED
