Vehicle care 191
No. Circuit
33 Engine control module
34 Horn
35 Air conditioning system
36 Front fog lamp
J-cases Fuses
No. Circuit
1 Electrical brake control module
2 Front wiper
3 Power module
4 Power terminal of instrument
panel fuse box
5 –
6 Fuel heater
7 Starter
8 Cooling fan
9 Cooling fan
No. Circuit
10 Engine control module/Glow
plug
11 Starter
Instrument panel fuse box

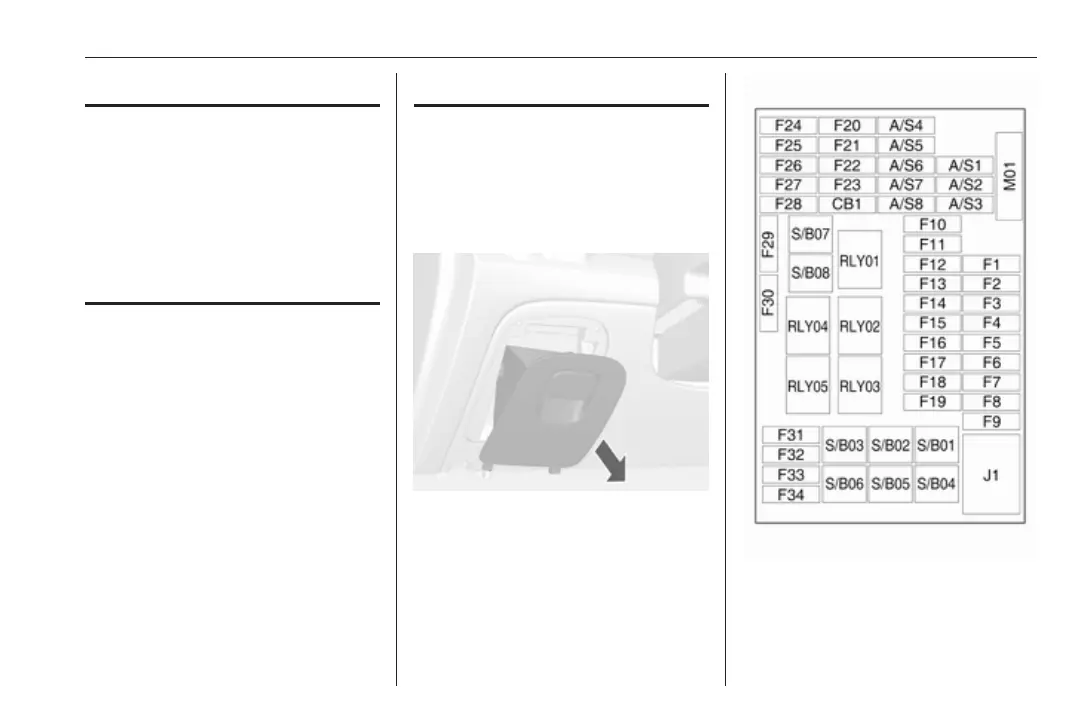

Interior fuse block is located on the
underside of the driver's side
instrument panel.
To access the fuses, remove the
storage.
To remove the storage, open and pull
it.
