Vava VA-LT002 - Product Diagram; Projector; Remote Control

03/04

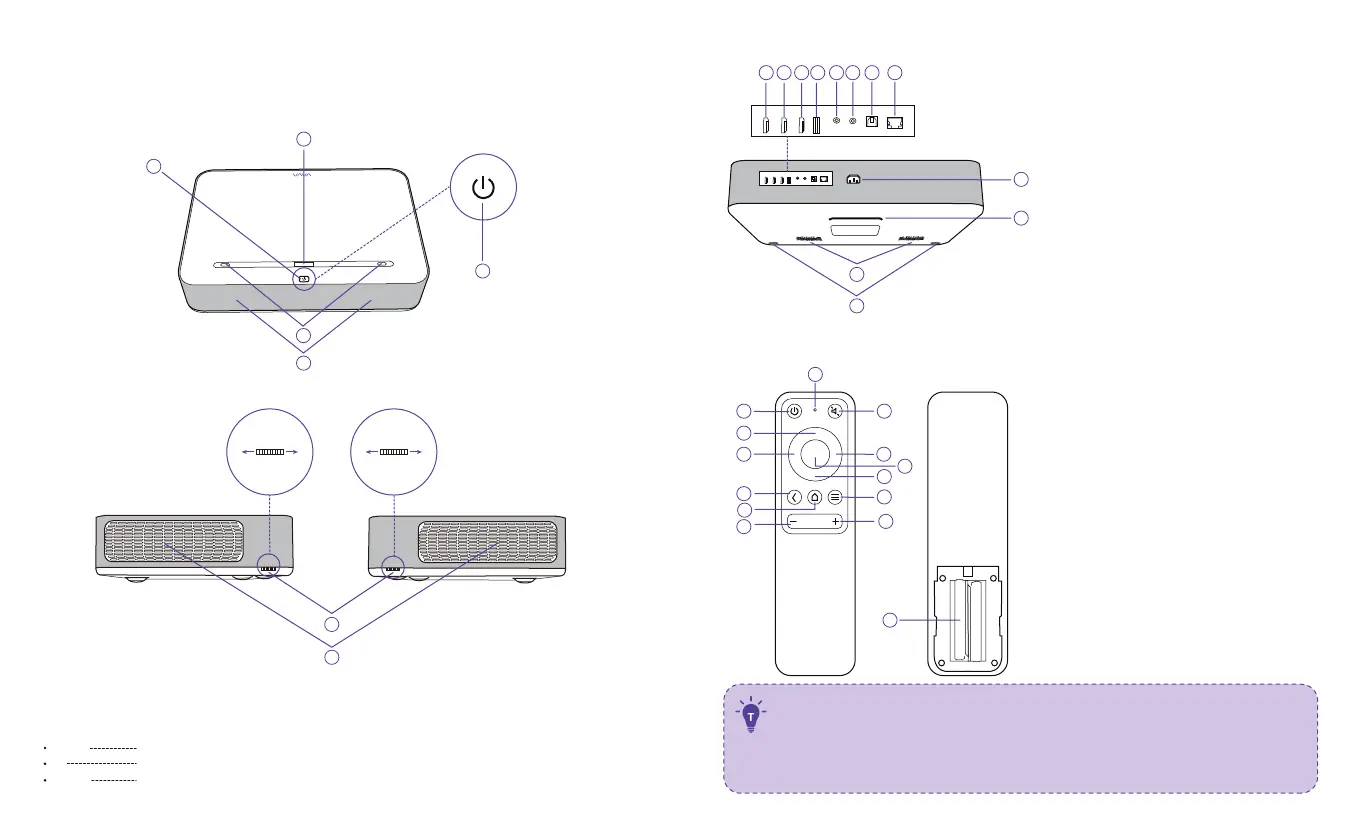

PRODUCT DIAGRAM
PROJECTOR
Front / Top
1. Speaker
2. Power Button
3. Status Indicator
4. PIR Sensor
5. Lens
6. Height Adjusting Wheels
7. Heat Dissipation Vents
Projector is starting / shutting off; buttons do not work
Projector disconnects from power / is working normally.
Projector connects to power but is not on.
· Flashes
· Off
· Solid On
Forward- Lower
Backwards-
Higher
Back / Bottom
1
4
3
5
2
6
7
8. HDMI Input 1
9. HDMI Input 2
10. HDMI 3 ARC
11. USB Port
12. Audio Output
13. AV Input
REMOTE CONTROL
1
2
3
4
5
7
6
8
9
11
10
12
13
14
1. Power
2. MIC
3. Mute
4. Up
5. Left
6. Right
7. OK
8. Down
9. Return
10. Home
11. Menu
12. Volume -
13. Volume +
14. AAA Battery Holder
1) Press Return and Menu buttons at the same time for Bluetooth pairing.
2) During video playing, press Menu button to enter the Menu interface;
otherwise, press and hold the button to enter the interface.
3) MIC function is not available for now and reserved for future use.
4) 2 AAA batteries are required for the Bluetooth remote control.
Side
8 10
9
11 12 13 14 15
18
16
19
17
14. S/PDIF Port
15. Ethernet Port
16. Power Port
17. Rear Foot
18. Speaker Air Vents
19. Front Foot x 2
Forward- Higher
Backwards-
Lower
