Vava VA-LT002 User Guide

05/06
QUICK INSTALLATION GUIDE
PREPARATION
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Take the following 4 items into consideration when installing the projector.
1) Distance between the projector back and the wall (W1)
2) Heights: image width (height) (H1), height between the bottom of the image and the
desk (H2), height of the desk (H3), and the recommended height of the wall (H4)
3) Surface for placing the projector
You can place the projector on almost any sturdy, flat and level surface (e.g., a desk).
Dimensions of the desk:
- Mobile desk: W2, H3, and L2
- Immobile desk: W2, H3, L2 and W1 (enough space shall be left to move the device
on the desk)
4) Image of the projection
The wall for the projection should be larger than the area of your desired image size.
Wall area: length (L3, ≥L1) x width (H4, ≥H1 + H2 + H3) in the diagram.
L2(21.0in)
Desk
Length
(L2)
L2≥L
Desk Width
(W2)
Mobile
Desk:
(W2≥W)
Immobile
Desk:
(W2≥W+W1)
center at
1.3m high
Desk
Height
(H3)
L3≥L1
Wall
Length
(L3)
Wall
Width
(H4)
H4≥H1+
H2+H3
≥53.3cm
/ 21.0in
≥36.8cm
/ 14.5in
≥45.3cm
/ 17.8in
≥50.2cm
/ 19.8in
≥55cm
/ 21.7in
≥64.6cm
/ 25.4in
≥79.2cm
/ 31.2in
53.9cm
/ 21.2in
45.4cm
/ 17.9in
37.0cm
/ 14.6in
20.1cm
/ 7.9in
0cm
/ 0in
≥177.1cm
/ 69.7in
≥199.3cm
/ 78.5in
≥221.4cm
/ 87.2in
≥265.7cm
/ 104.6in
≥332.1cm
/ 130.7in
≥179.8cm
/ 70.8in
≥186.5cm
/ 73.4in
≥192.3cm
/ 75.7in
≥204.7cm
/ 80.6in
≥228.7cm
/ 90.0in
SD
80"
90"
100"
120"
150"
Device
Dimensions
(LxWxH)
53.3 x 36.8
x 10.7cm /
21.0 x 14.5
x 4.2in
Length
(L1)
177.1cm
/ 69.7in
199.3cm
/ 78.5in
221.4cm
/ 87.2in
265.7cm
/ 104.6in
332.1cm
/ 130.7in
Width
(H1)
99.6cm
/ 39.2in
112.1cm
/ 44.1in
124.5cm
/ 49.0in
149.4cm
/ 58.8in
186.8cm
/ 73.5in
Device-Wall
Distance
(W1)
8.5cm
/ 3.3in
13.4cm
/ 5.3in
18.2cm
/ 7.2in
27.9cm
/ 11.0in
42.4cm
/ 16.7in
Image-Desk
Height Gap
(H2)
26.3cm
/ 10.4in
28.6cm
/ 11.3in
30.8cm
/ 12.1in
35.2cm
/ 13.9in
41.9cm
/ 16.5in
SD
80"
90"
100"
120"
150"

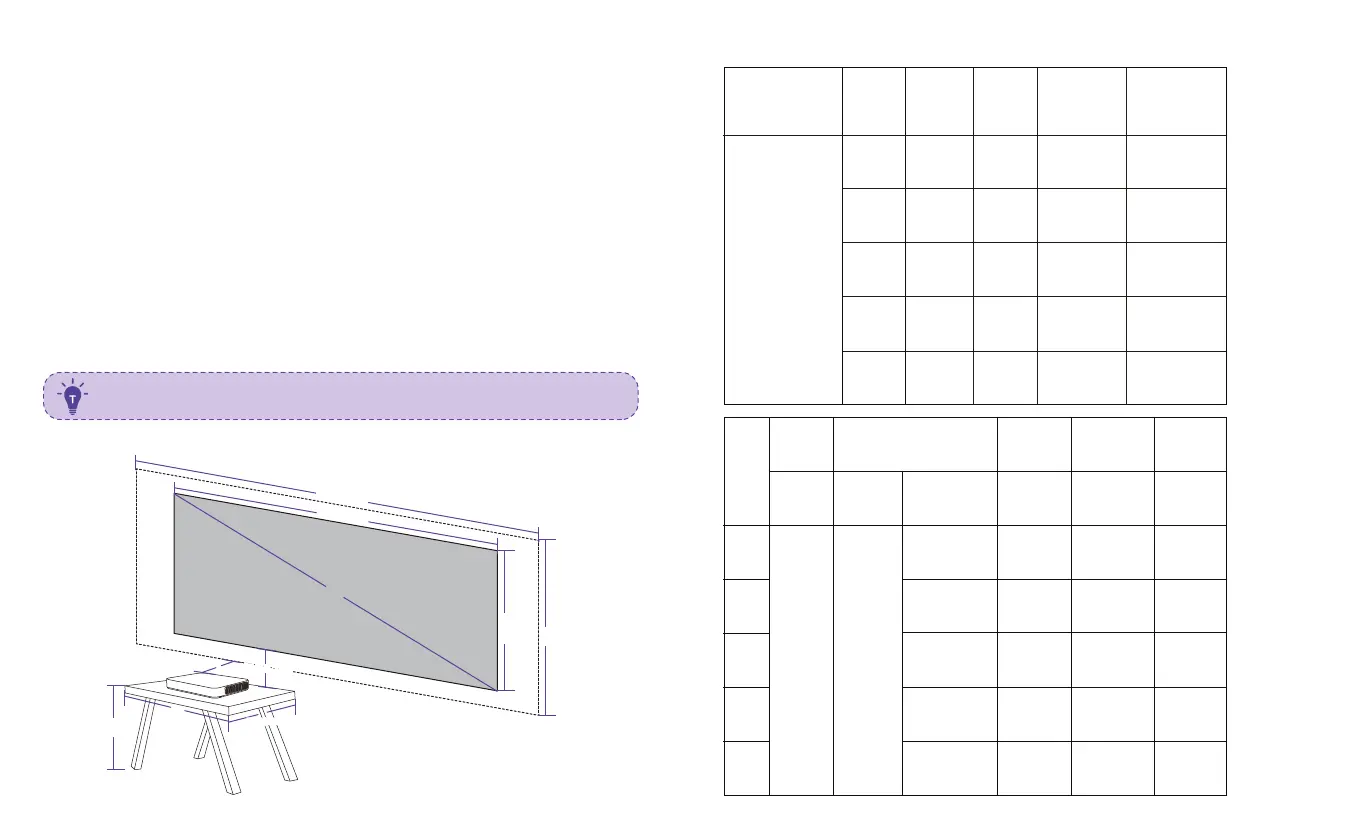

Projection Distance & Image Dimensions
L3(87.2in)
H4(75.7in)
H1
(49in)
SD
L1(87.2in)
W1(7.2in)
H2(12.1in)H2(12.1in)
H3(14.6in)
W2(21.7in)W2(21.7in)
Parameters for Projection (100'' for example)
Please make sure that the surface for placing the projector and the wall or
screen for the projection is flat enough to avoid distorted image.

Vava VA-LT002 Specifications

General

Type	laser
Light Source Life	20000 hours
Color	white/gray, gray
Throw Type	ultra short throw
Portable	fixed
Noise Level	32 decibels
Color Brightness	1800 lumens
White Brightness	1800 lumens
Resolution	4k (2160p)
Native Resolution	1920 x 1080
Contrast Ratio	1, 500, 000:1
Aspect Ratio	not applicable
Throw Ratio Range	0.233
HDR	yes
HDR Format	hdr 10
Keystone Effect	yes
3D	yes
Minimum Screen Size	80 inches
Maximum Screen Size	150 inches
Focus Adjustment	manual
Digital Zoom	yes
Minimum Distance	0.6 feet
Maximum Distance	1.39 feet
HDMI Ports	3
HDMI 2.0 Ports	3
HDMI 2.1 Ports	0
HDMI 2.2 Ports	0
HDMI ARC Ports	no
USB Ports	1
Video Input	hdmi, usb, s/pdif
Inputs	hdmi, usb
Bluetooth	true, 4.2
Built In Speakers	yes
Speakers Output	60 watts
Voice Assistant	no
Remote Control	yes
Smart Functions	yes

Weight and Dimensions

Depth	20.98 inches
Height	4.21 inches
Width	14.49 inches
Net Weight	23.81 pounds
