13

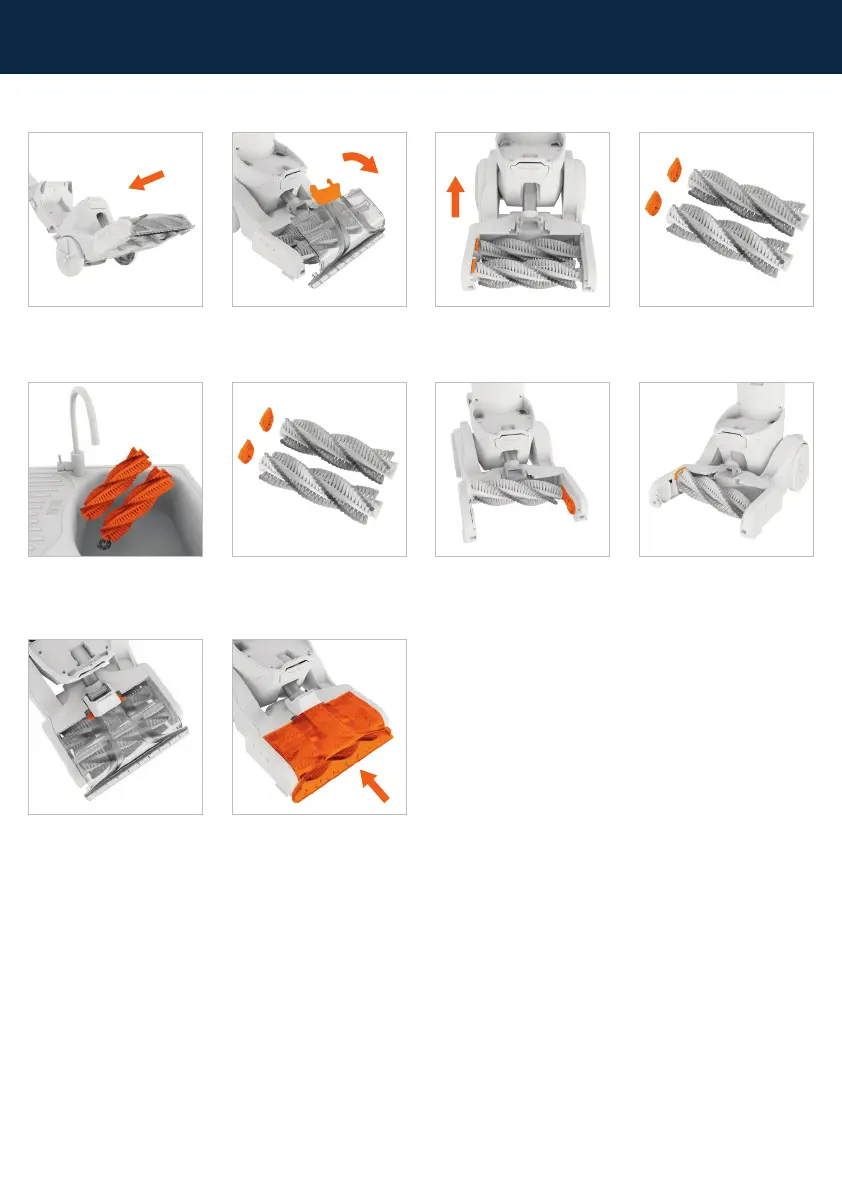

Removing and cleaning the brushbars
Lift the nozzle release clip
and pull the nozzle forward
to remove.
Pull the tabs up on the
side of both brushbars to
remove them.
Remove both tanks and tilt
the machine back.
To replace the brushbars, align the right side of the first
brushbar onto the circular gearing. Push the left tab
downwards until it clicks into place. Repeat the same
process with the other brushbar.
Pull to remove the
brushbars end caps.
Replace the brushbars
end caps.
Rinse the brushbars under
warm water (max 40�C)
to remove dirt/debris.
To replace the nozzle align
the tabs at the top of the
nozzle with the machine.
Push the nozzle backwards
until it clicks into place.
Cleaning and maintenance
