1. Insert the flexible hose into the inlet on the main
body of the vacuum cleaner. Push in and twist
clockwise a quarter turn until tight (Fig. 4/1).
5. Replace top cover.
4. Position the dust bag to fill the inside of the bin
(Fig 3/4).
3. Fit the dust bag by aligning the front of the dust
bag with the inlet slots (Fig. 3/3).
2. Remove the accessories (Fig. 3/2).
1. Unclip the retainer clips on either side of the
vacuum cleaner and lift off to gain access to the
dust bag compartment. (Fig. 3/3).

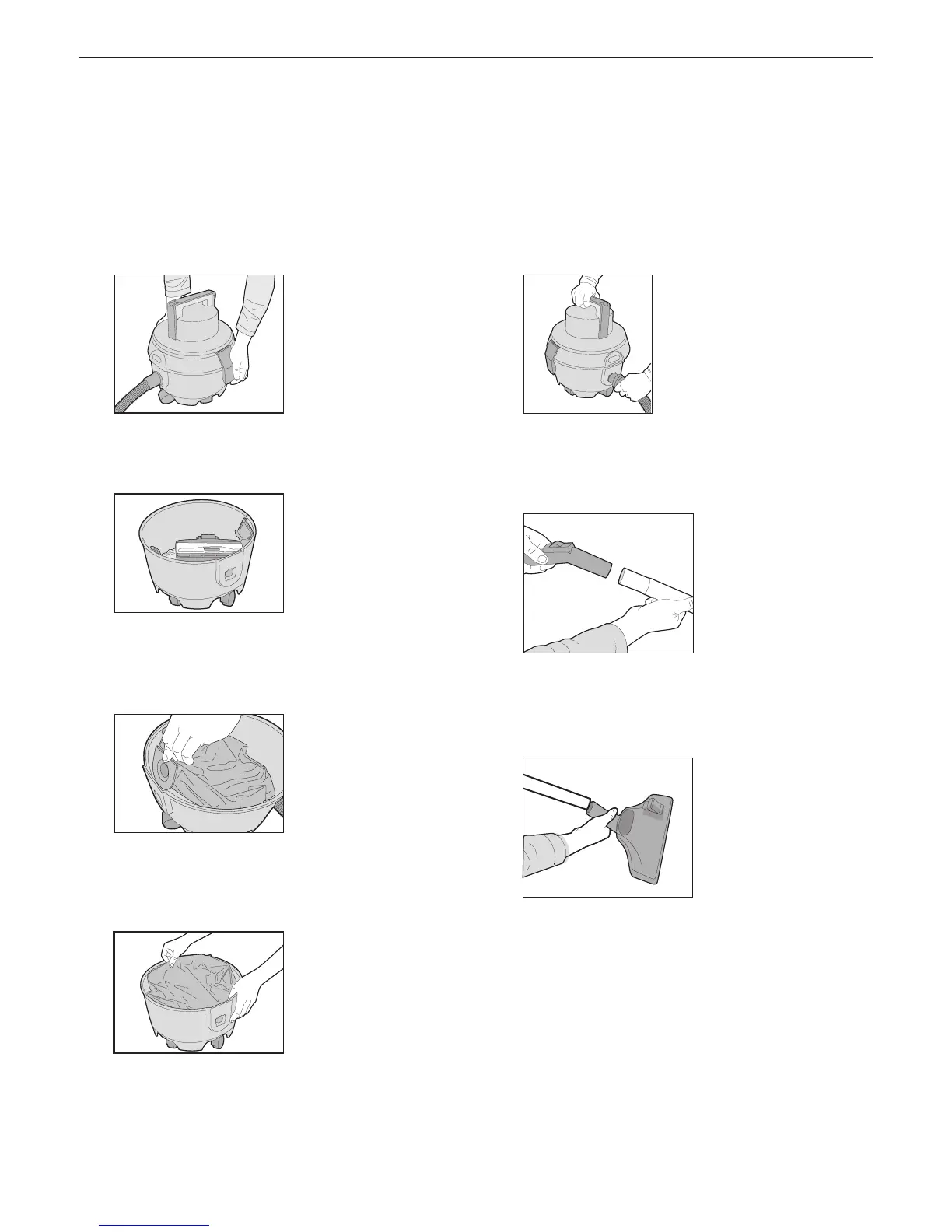

3. Initial Set Up
IMPORTANT : The accessories are stored in the dust
bag compartment and need to be removed before
operating the vacuum cleaner.
Fig.3/1
Fig.3/2
Fig.3/3
Fig.3/4
4. Use and Function
IMPORTANT: Always remove the power plug from
the wall outlet before assembling or before removing
accessories.
Fig.4/1
(Fig. 4/2)
4
Initial Set Up/Use and Function
2. Push the two-piece extension tube onto the end
of the handle (Fig. 4/2).
(Fig 4/3)
3. Fit the combination floor tool by pushing on to
the extension tubes (Fig 4/3).
