VBM JUNIOR 2B - Component Identification

15
on
off
on
off
on
1
6
7
8
9
12
10
11
13
5
4
3
2
14
15
ENG
4,

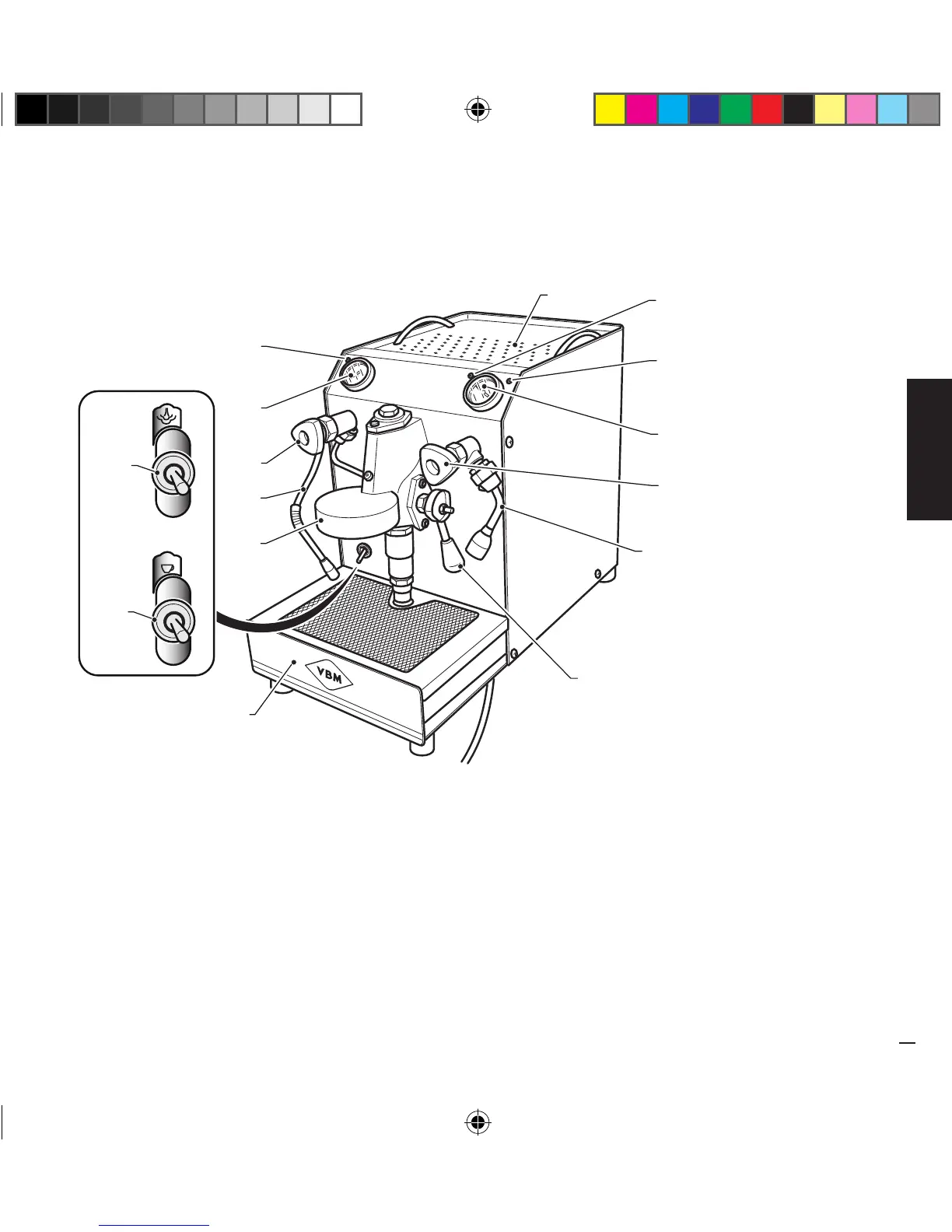

COMPONENT IDENTIFICATION.
1 Lamp line.
2 Working lamp resistance.
3 Steam pressure gauge.
4 Pressure gauge indicating pump
pressure.
5 Lamp lack of water in the tank.
6 Spear steam.
7 Control knob for steam output.
8 Hot water nozzle.
9 Control knob dispensing hot water.
10 Coffee dispensing lever.
11 Coffee dispensing group.
12 Shelf for cups.
13 Removable tray.
14 Switch “ON / OFF” steam / hot water.
15 Switch “ON / OFF” coffee boiler.
