VBOX 3i - Page 114

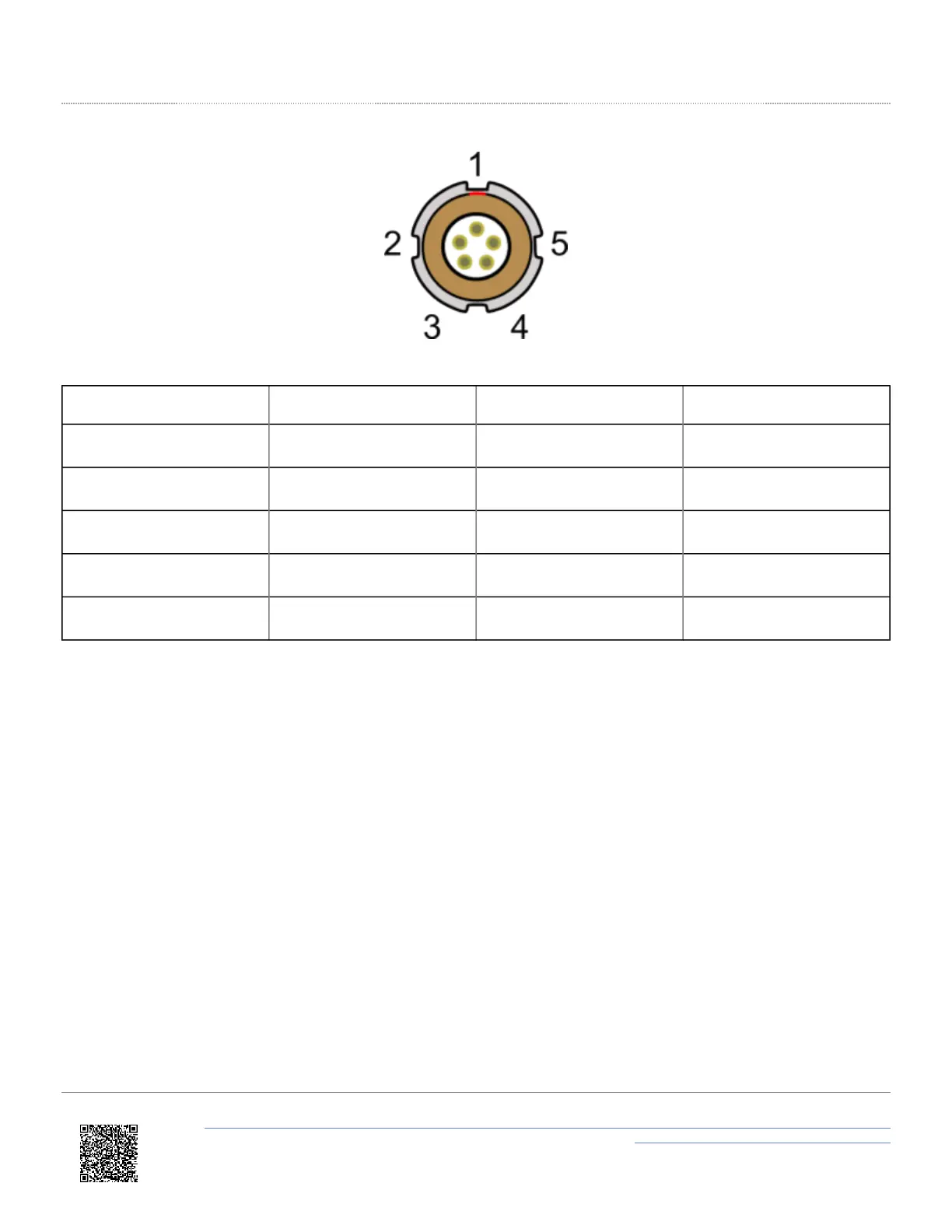

Connector 6 - SERIAL (Lemo 5 PIN)
PIN I/O Function Range
1 O RS232 Tx (PORT A) +/- 12 V
2 I RS232 Rx (PORT A) +/- 12 V
3 I/O CAN High (PORT B)
4 I/O CAN Low (PORT B)
5 O +V Power Same as Power +
