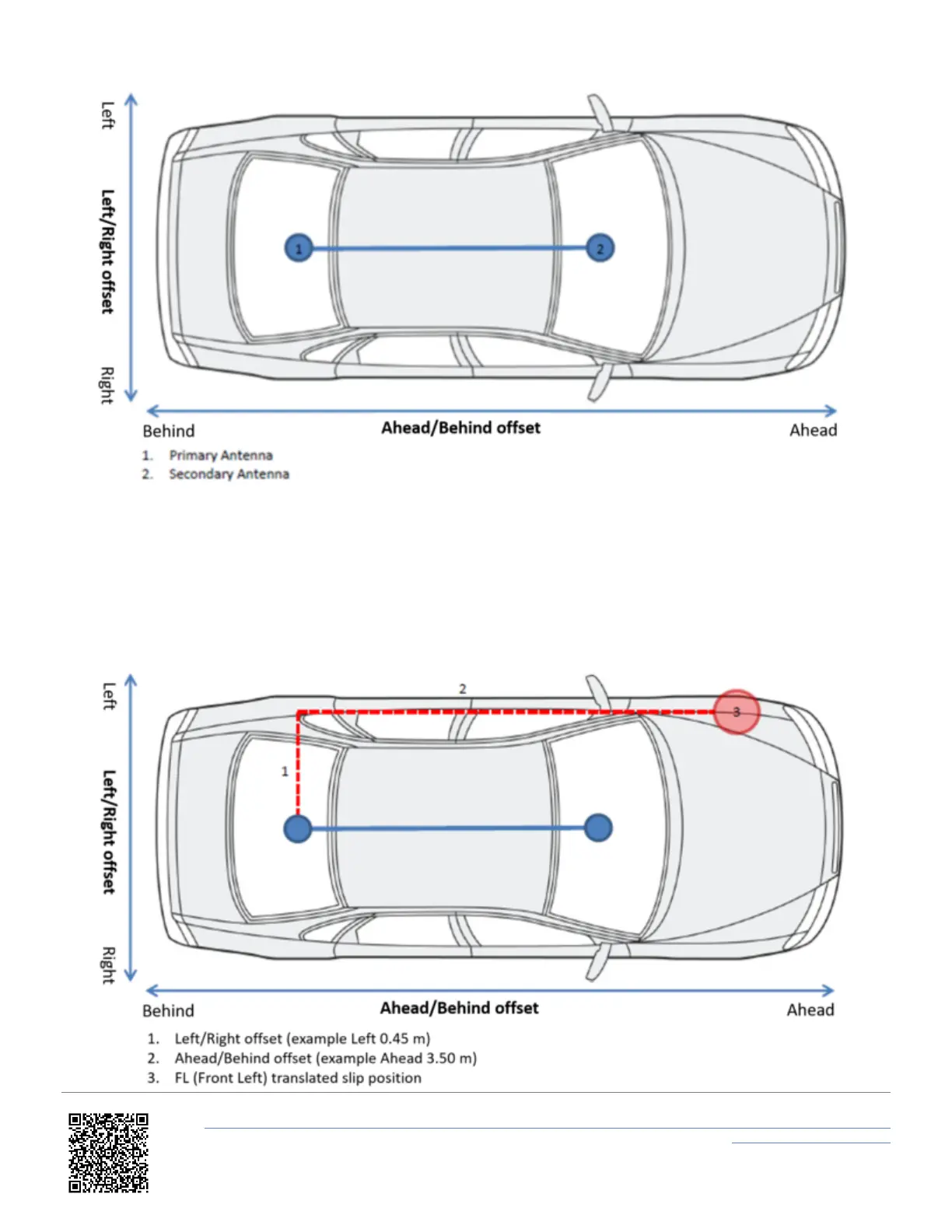

In section 1 on the diagram below there is a Left offset between the primary antenna and the target area for slip
measurement. Same again for section 2, there is an Ahead offset. These offsets will need to be applied by VBOX
Manager.
