08 - VB3i CAN

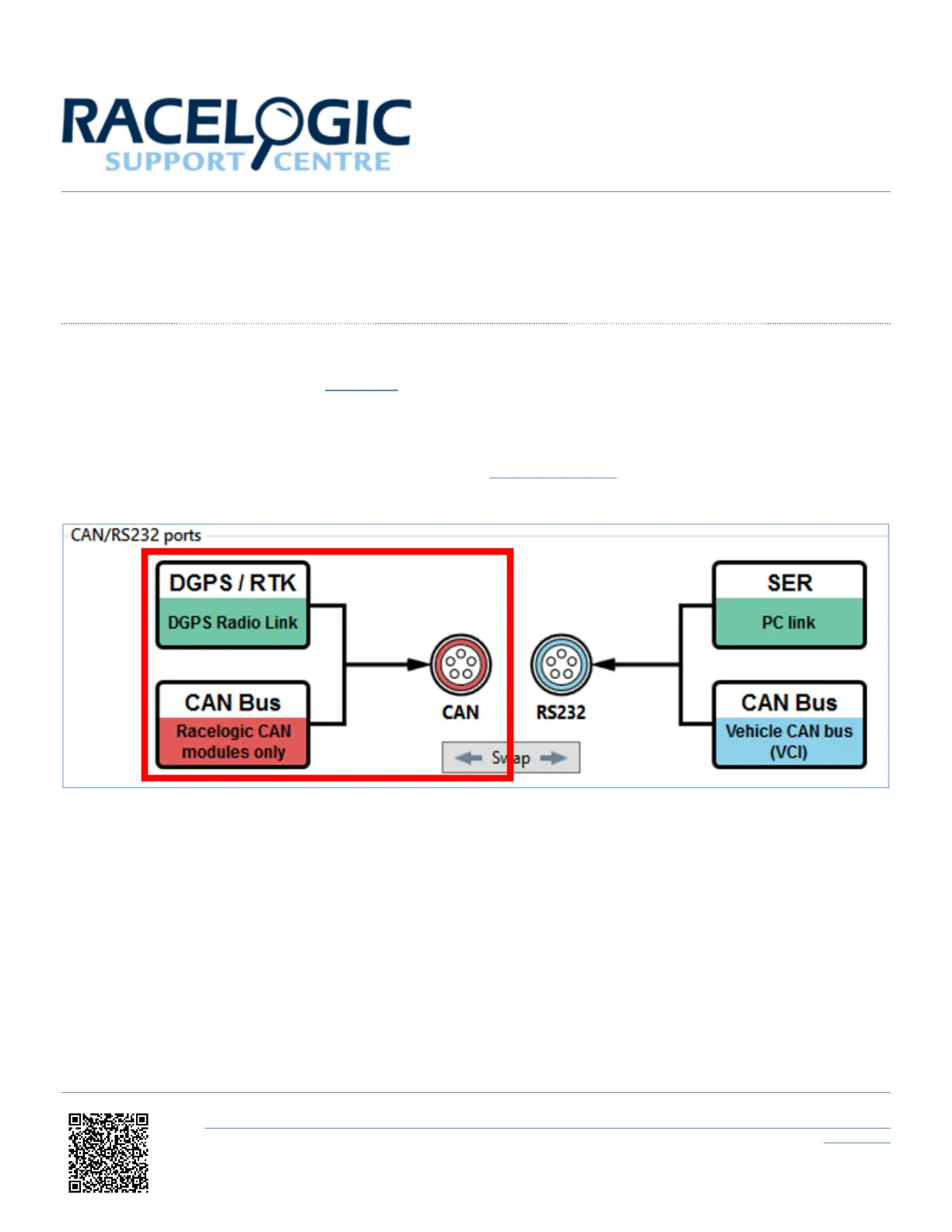

Racelogic CAN Bus
The Racelogic CAN bus connection (CAN port by default) can be used to connect Racelogic modules (i.e. TC8, FIM03
etc), and displays such as VBOX Manager and Multi-Function Display. This port will allow the VBOX 3i to log up to a
maximum of 32 Racelogic module channels.
Note: For the Racelogic CAN port, it is recommended that the CAN Termination resistor is on.
Note: VBOX 3i has an additional channel limit of 64. Additional channels consist of VCI channels (up to 16), RL CAN
channels (up to 32) and any other channels that fall outside the channels on the Standard tab in VBOX Setup, such as
AD inputs, IMU KF channels, Twin antennas channels, ADAS channels and so on.
Channel selection is controlled using VBOX Setup. Additional channels can be logged by the VBOX 3i up until the point
the Log channel usage is maxed (100%)
