Measuring Translation Points

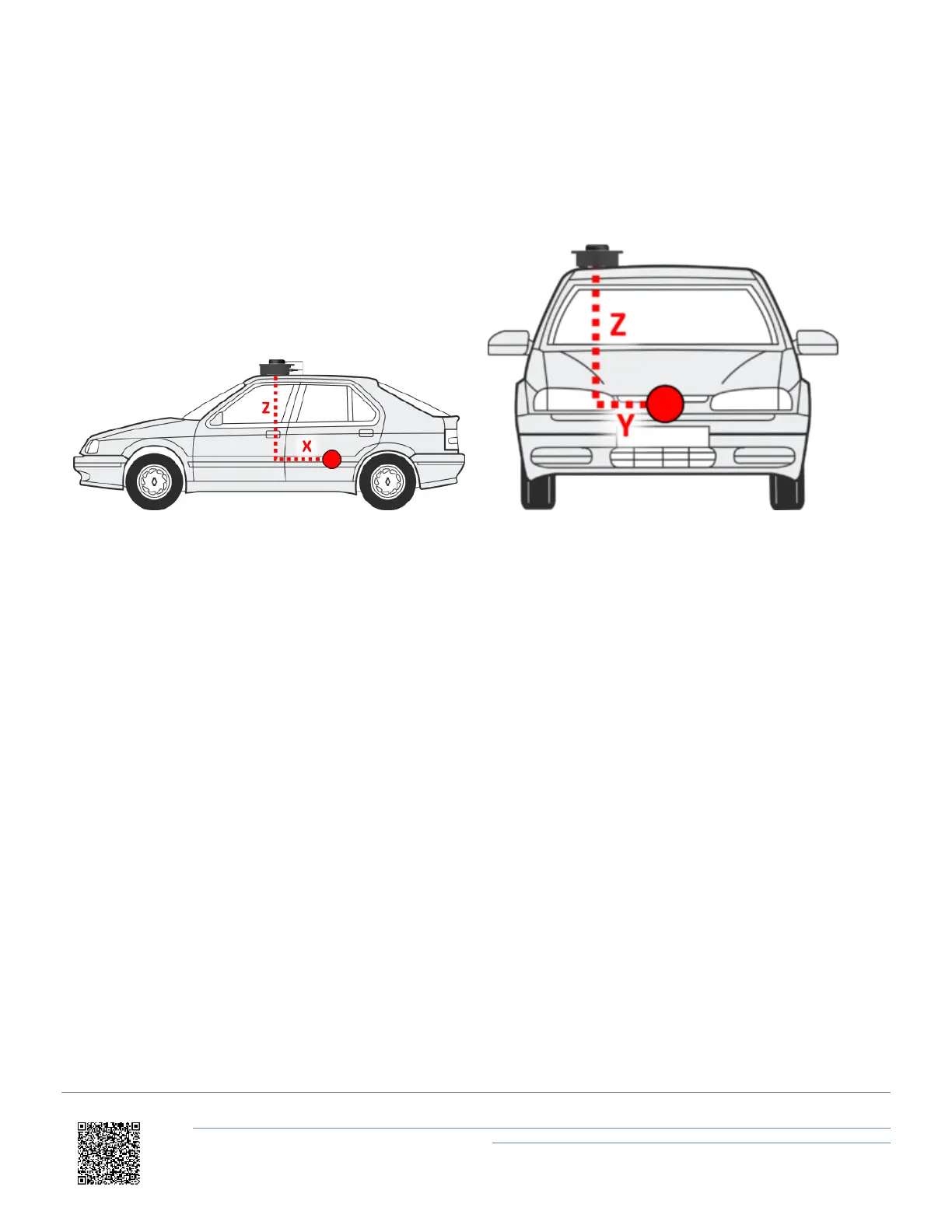

Customer required translation measurements should be made in the same plane as to which the IMU is mounted (i.e.
perpendicular to the IMU base, not straight down to the ground).
Important notes when using ADAS Setup
1. If using IMU filter with ADAS mode, the GPS antenna and IMU must be co-located (roof mount) or positioned so
there is no relative X or Y offset between them. If there is a difference, manual contact points should reference the
IMU location, rather than the GPS antenna.
2. When using IMU Filter the user cannot use 'SET POINTS' functionality to define contact points in 1, 2 or 3 target
ADAS modes.
