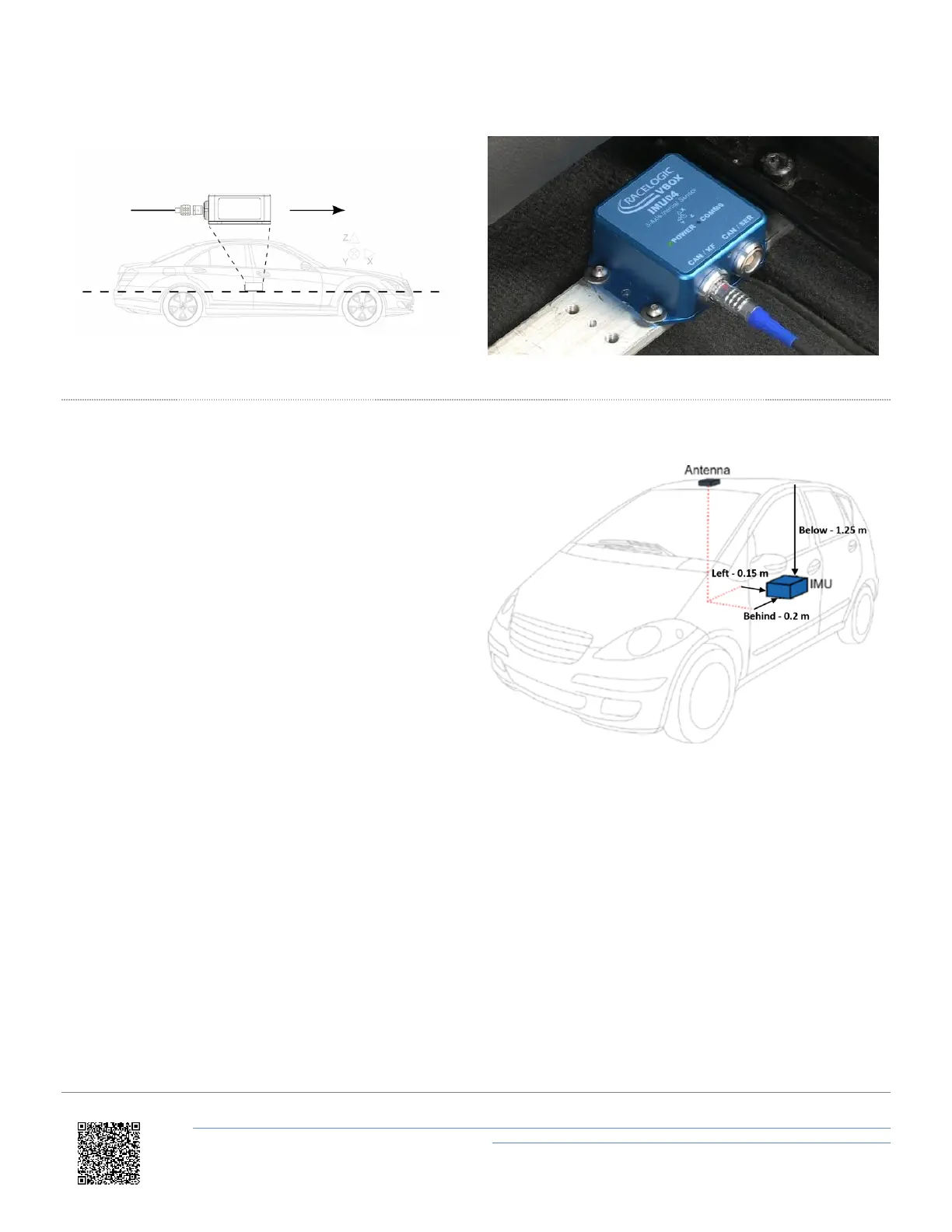

Measuring IMU-Antenna Offsets
When using either a fixed mounting point or the
mounting arm, you must measure the relative position of
the IMU in relation to the antenna* to at least within +/- 5
cm. These distances must then be entered into the
VBOX via either VBOX Setup or using VBOX Manager.
These measurements are required when using
either an IMU04 or an IMU03 unit.
*When using a twin antenna system, these
measurements must be taken from the primary antenna
(A).
