- Thread the indicating instrument cables from behind the
mounting hole through the housing mounting nut.
- Place the supplied black rubber ring on the instrument back.
- Make the electrical connections of the indicating unit per cir-
cuit schematically (see „Electrical installation“) and insert
the instrument into the installation hole.
- Secure the instrument by tightening the housing nut.
At d= 0.5 to 6.5 mm, installation A.
At d= 6.5 to 16.5 mm, installation B.
- The housing nut should only be tightened by hand.

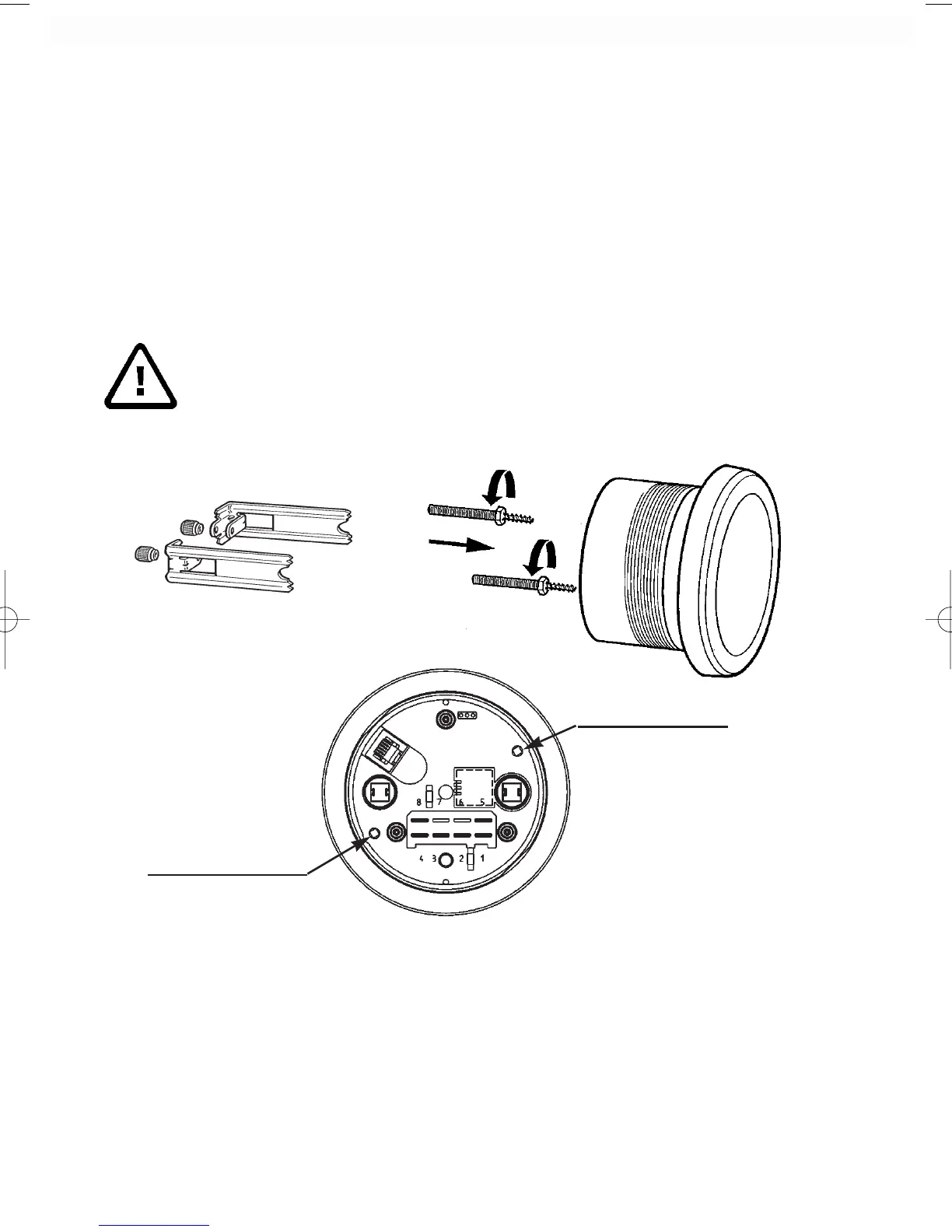

Install the indicating instrument with stud and bracket (see
below) if you expect strong vibrations at the location where
the instrument is to be installed (e.g. high-speed boats).
1,5 Nm max.
1,5 Nm max.
Threaded studs are
screwed in here
Threaded studs are
screwed in here
38
INSTALLATION
echo_e.qxd 16.04.1998 08:21 Seite 14
