31

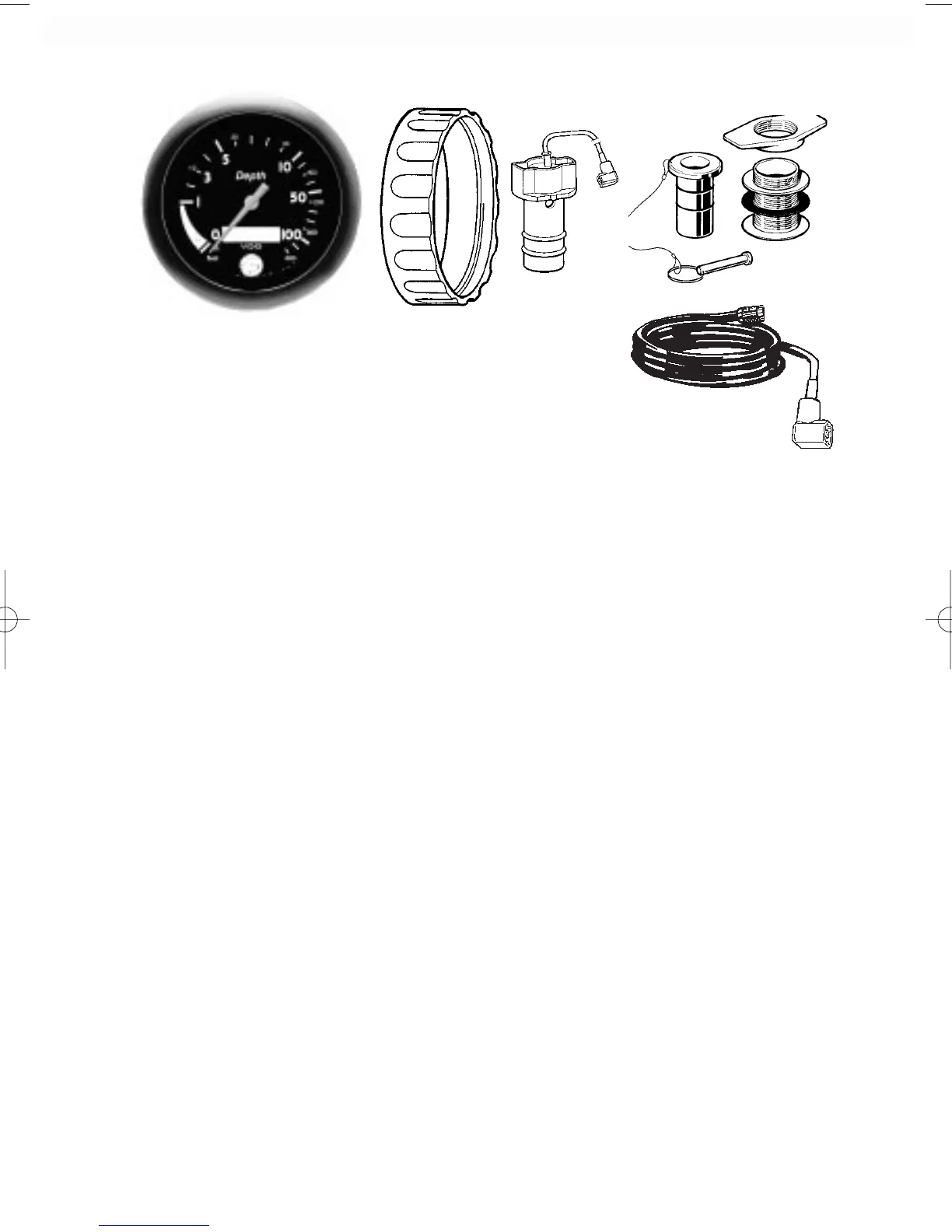

System components
The system, as supplied, consists of:
- Indicating instrument
- Nut for indicating instrument fixation
- Echo sounder with cable, length 1 m
- Connecting cable between echo sounder and indicating unit,
length 10 m
- Hull sleeve with sealing washers, fixation nut, retainer pin and
rings (only for systems with through-hull echo sounder)
- Blind plug with control rope (only for systems with through-hull
echo sounder)
- Installation and operating instructions
Accessories (not supplied with the system):
- Fixation parts kit (studs and bracket) N05 800 792
- Illumination parts kit (24V /1.2W) N05 800 550
- Repeater instrument VDO Depth Sounder N01 410 702
- Alarm buzzer (12/24 V) N03 230 702
Spare parts:
- O-Ring for depth sounder / blind plug (2x) N05 801 418
- Illumination parts kit (12V / 1.2W) N05 800 552
Other spare parts are available on request.
VDO DEPTH SOUNDER
echo_e.qxd 16.04.1998 08:17 Seite 7
