45
INSTALLATION
Connection of a repeater
Make the power supply con-
nection for the repeater the
same as the main unit (see
page 44). The connection bet-

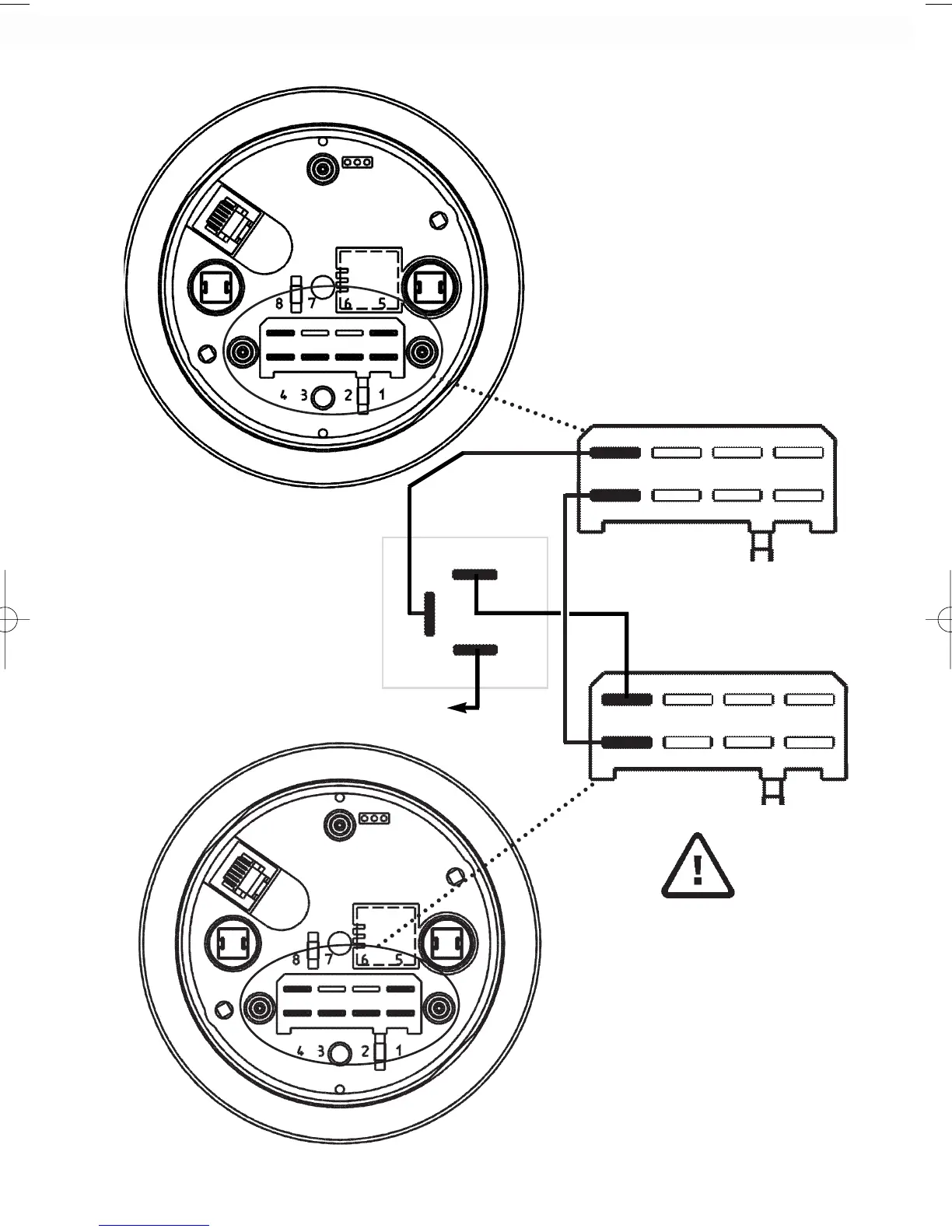

ween the main and the repea-
ter, including the alarm buzzer,
is shown in the diagram below.
Main-unit
Repeater
Note that the unit, keel depth
and alarm must also be set
(see page 33) on the repeater.
4
8
4
8
+
-1
-
A B
S 1
echo_e.qxd 16.04.1998 08:23 Seite 21
