VDO DLD Wide Range II - Connection diagram - CAN interface

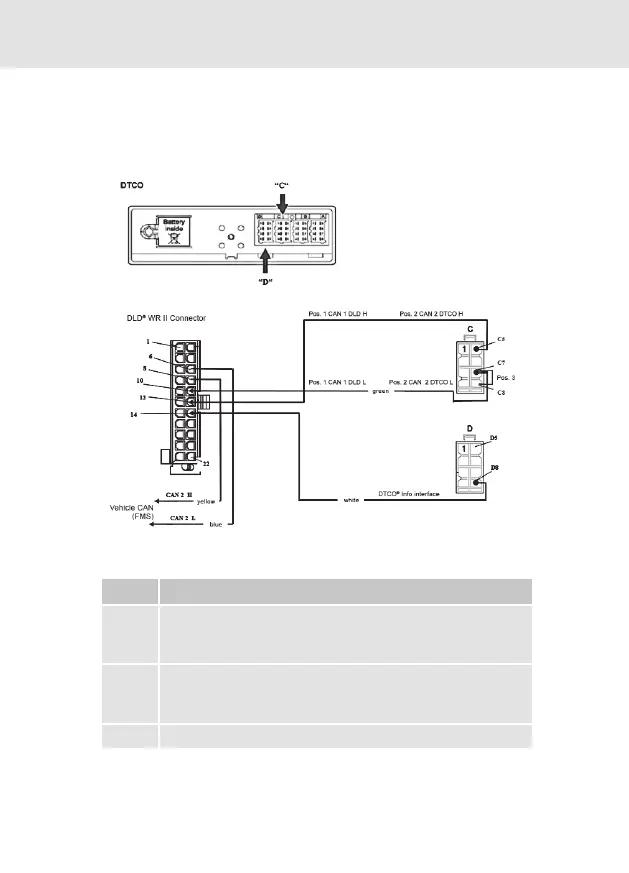

Connection diagram – CAN interface
Pos. Designation
1 DLD CAN1 (connect to DTCO CAN2)
- CAN1 H
- CAN1 L
2 DLD CAN2 (connect to Vehicle CAN)
- CAN2 H - FMS Interface
- CAN2 L - FMS Interface
3 CAN_RESISTOR (termination by cable bridge)
