23.9. Press Setup key to enter PIP setup menu, press Brt+ or Brt- key to select
setup option, rotate OK to change parameter, press OK to save parameters
(before setting parameters you can press M1 M2 M3 to select a mode to
save these parameters);
23.10. The size of PIP and Main window depend the width and height you set, the
PIP and Main window location depend the H_Start and V_Start you set,
( normally the PIP and Main window must in the area of actual LED screen,
the video source of Main and PIP window can’t from same signal group );

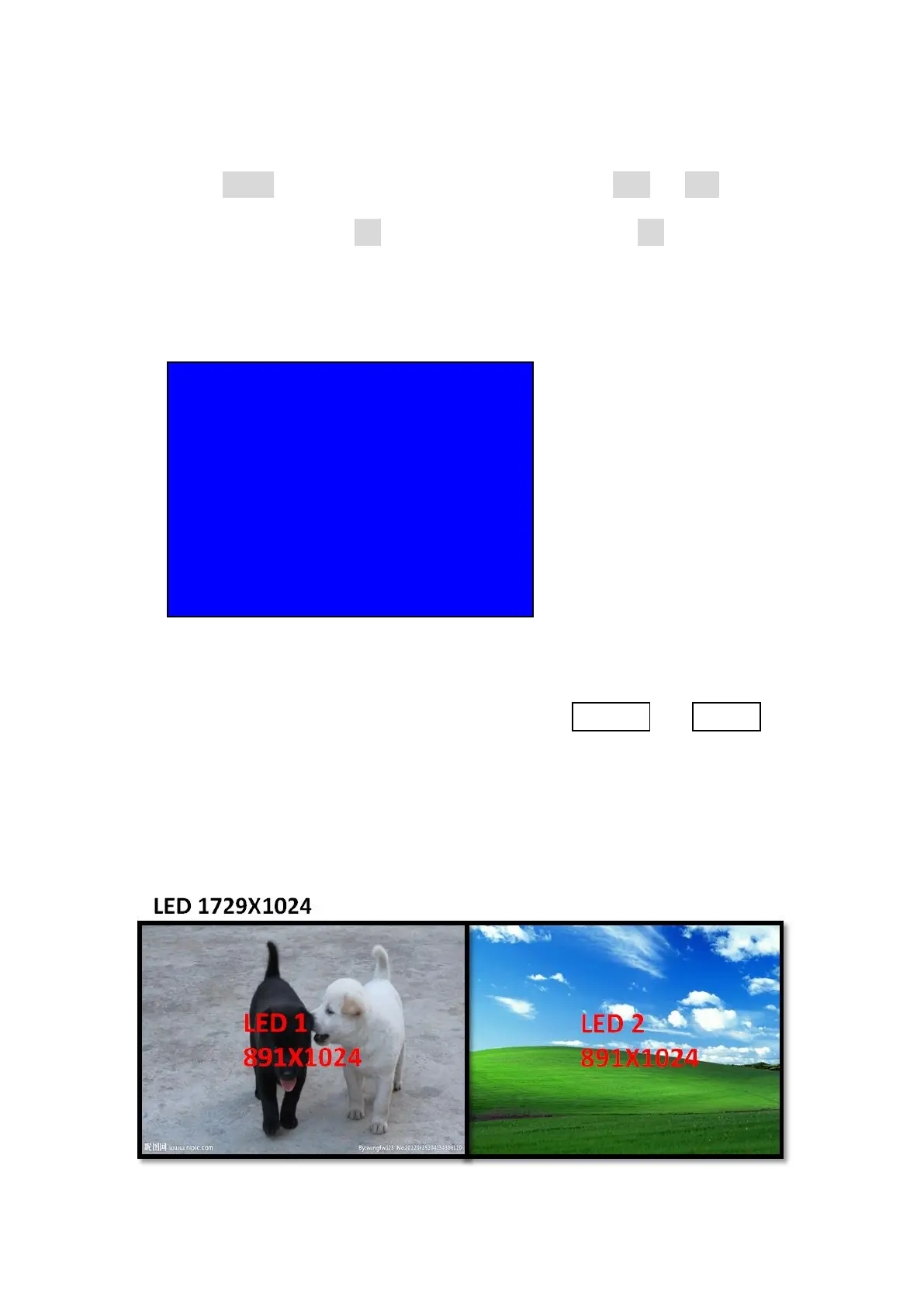

23.11. The display you can see on LED screen 1792 X 1024 as the picture below;
D. PIP / PBP Mode = 1
--------------------------------------------------------------------
D.1 PIP Width 891
D.2 PIP Height 1024
D.3 PIP H_Start 896
D.4 PIP V_Start 0
D.5 Main Width 891
D.6 Main Height 1024
D.7 Main H_Start 0
D.8 Main V_Start 0
To Next Page
