25.5. When you configure sending card system, the resolution of sending card
must be as same as the output resolution of LVP615’s, and make sure let the
input source resolution of LVP615 less than 1920 x 1080 or equals;

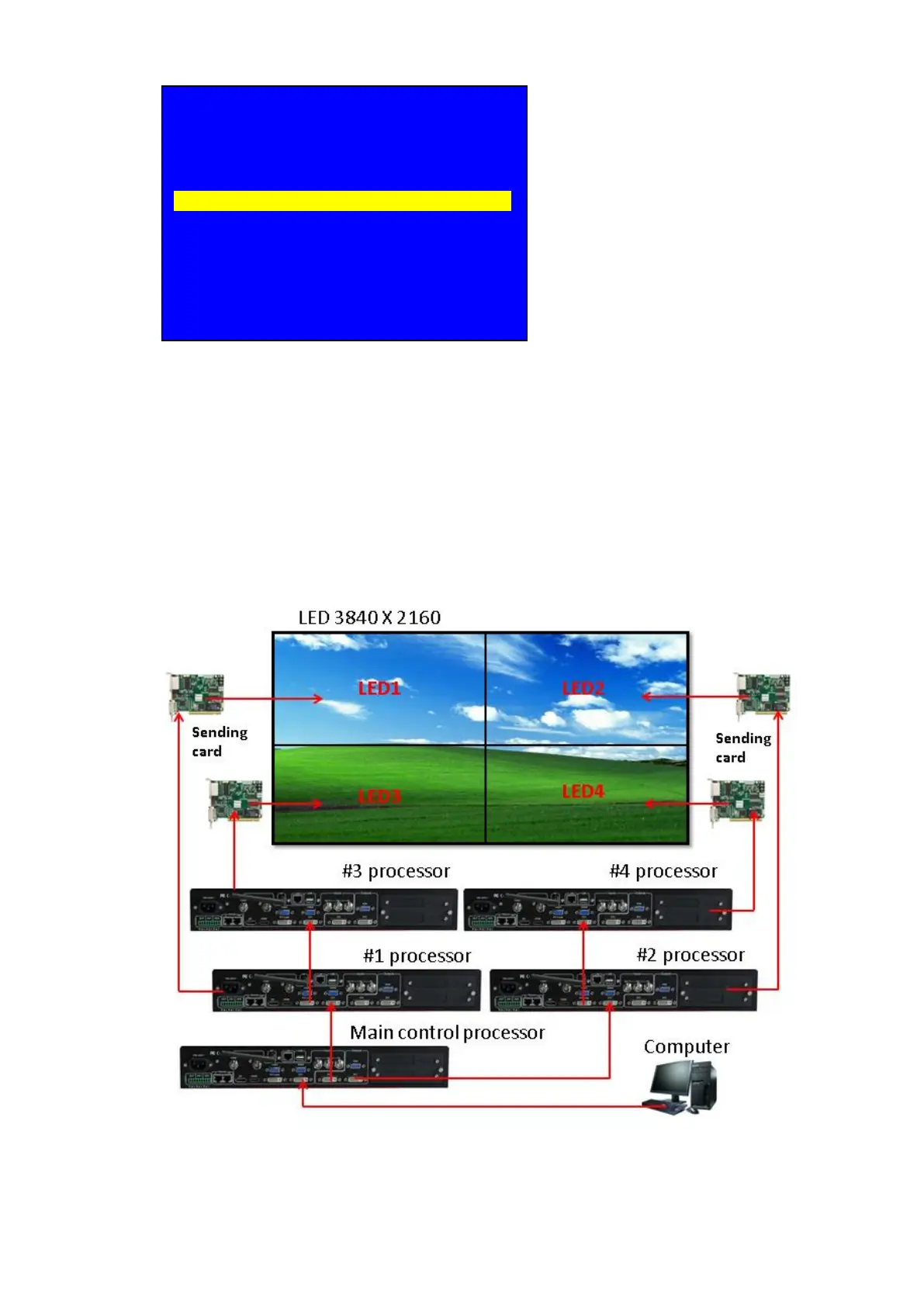

26. Example 4 LED 3840 x 2160
26.1. LED 3840 X 2160 composed by 4 LED screens LED1 LED2 LED3 LED4
8. Output Image
--------------------------------------------------------------------
1.2 Resolution 2048 x 1152_60
1.2 Out Width 2048
1.3 Out Height 512
1.4 Out H_Start 0
1.5 Out V_Start 0
1.6 Test Pattern Off
