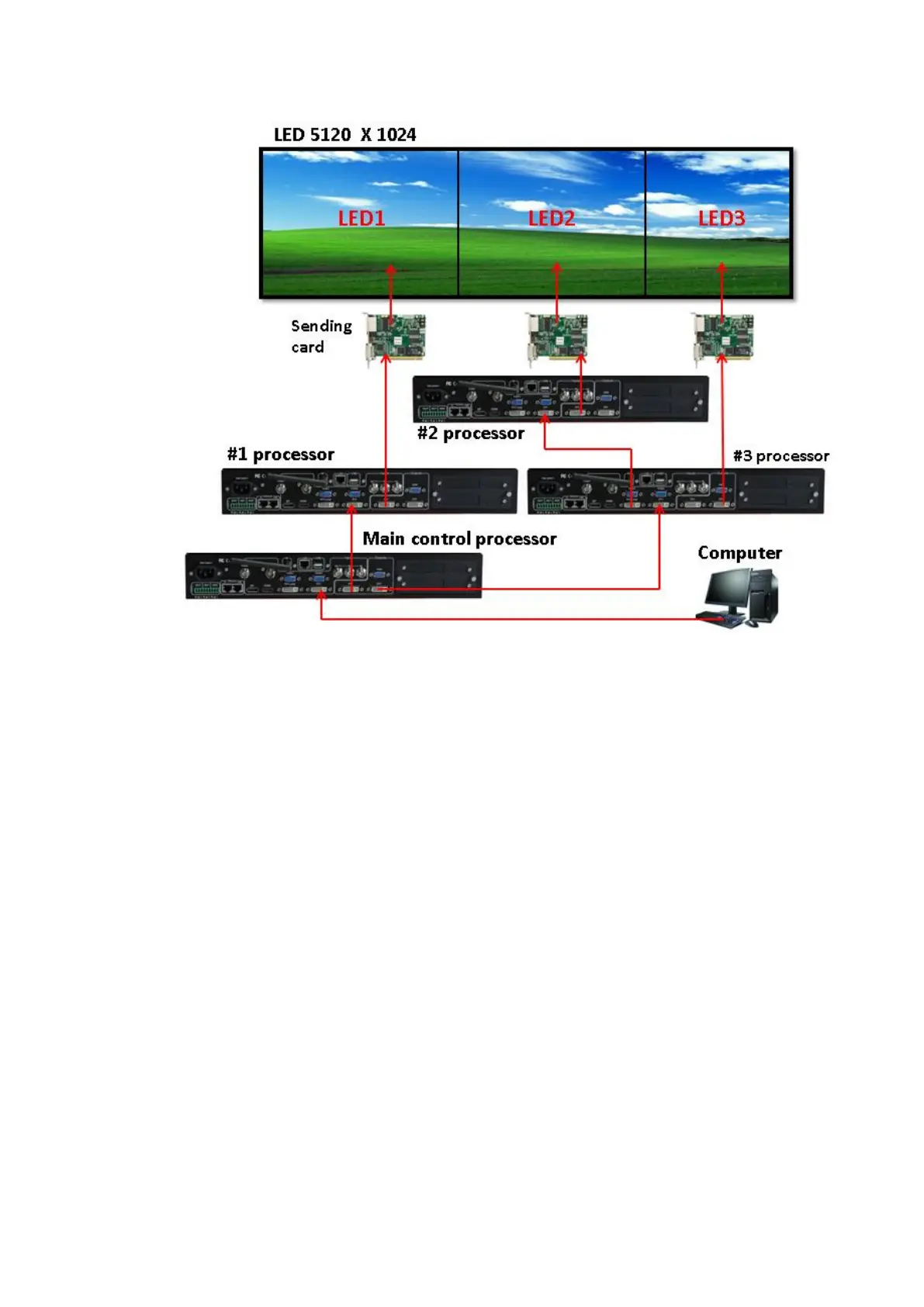

27.1. LED 5120 X 1024 composed by 3 LED screens LED1 LED2 LED3 and the
resolution of every LED screen: LED1 1792 x 1024, LED2 1792 x 1024, LED3
1536 X 1024;
27.2. When you open LVP615’s Mosaic function to splicing very bigger LED screen,
there are some conditions you need to consider:
5. Every processor must set same output resolution;
6. Only # 1 2 3 processor must open Mosaic function, press Mosaic key to
open or off the function;
7. After opening Mosaic # 1 2 3 processor only have Mosaic and PIP
function;
8. We use main processor to switch input video source;
