TCY-FT-U
Technical Specifications
Doc: 70-00-0128B, V1.2, 20110621 © Vector Controls GmbH, Switzerland Page 2
Subject to alteration
Technical specifications
Power Supply
Operating Voltage 24 V AC ± 10 %, 50…60 Hz, Class 2, 48VA max
Power Consumption Max. 1.5 VA
Electrical Connection Terminal Connectors,
wire 0.34…2.5 mm
2
(AWG 24…12)
Signal inputs
Temperature Input
Range
Accuracy
0…50 °C (32…122 °F)
0.5 K
Signal outputs
TRIAC Outputs
Switching power 24 VAC, 250mA max
Do not use actuators with power consumption > 6VA
Environment
Operation
Climatic Conditions
Temperature
Humidity
To IEC 721-3-3
class 3 K5
0…50 °C (32…122 °F)
<95 % r.H. non-condensing
Transport & Storage
Climatic Conditions
Temperature
Humidity
Mechanical Conditions
To IEC 721-3-2 and IEC 721-3-1
class 3 K3 and class 1 K3
-25…70 °C (-13…158 °F)
<95 % r.H. non-condensing
class 2MT2
Standards
conform according to
EMC Standard 89/336/EEC
EMEI Standard 73/23/EEC
EN 61 000-6-1/ EN 61 000-6-3
Product standards
Automatic electrical controls for
household and similar use
Special requirement on temperature
dependent controls
EN 60 730 –1
EN 60 730 – 2 – 9
Degree of Protection IP30 to EN 60529
Safety Class III (IEC 60536)
Cover, back part
Mounting Plate
Fire proof ABS plastic (UL94 class V-0)
Galvanized Steel
General
Dimensions (H x W x D) Front part: 112 x 73 x 15 mm (4.4” x 2.9” x 0.6”)
Power case: ø 58 x 32 mm (ø 2.3” x 1.3”)
Weight (including package) 260 g (9.2 oz)

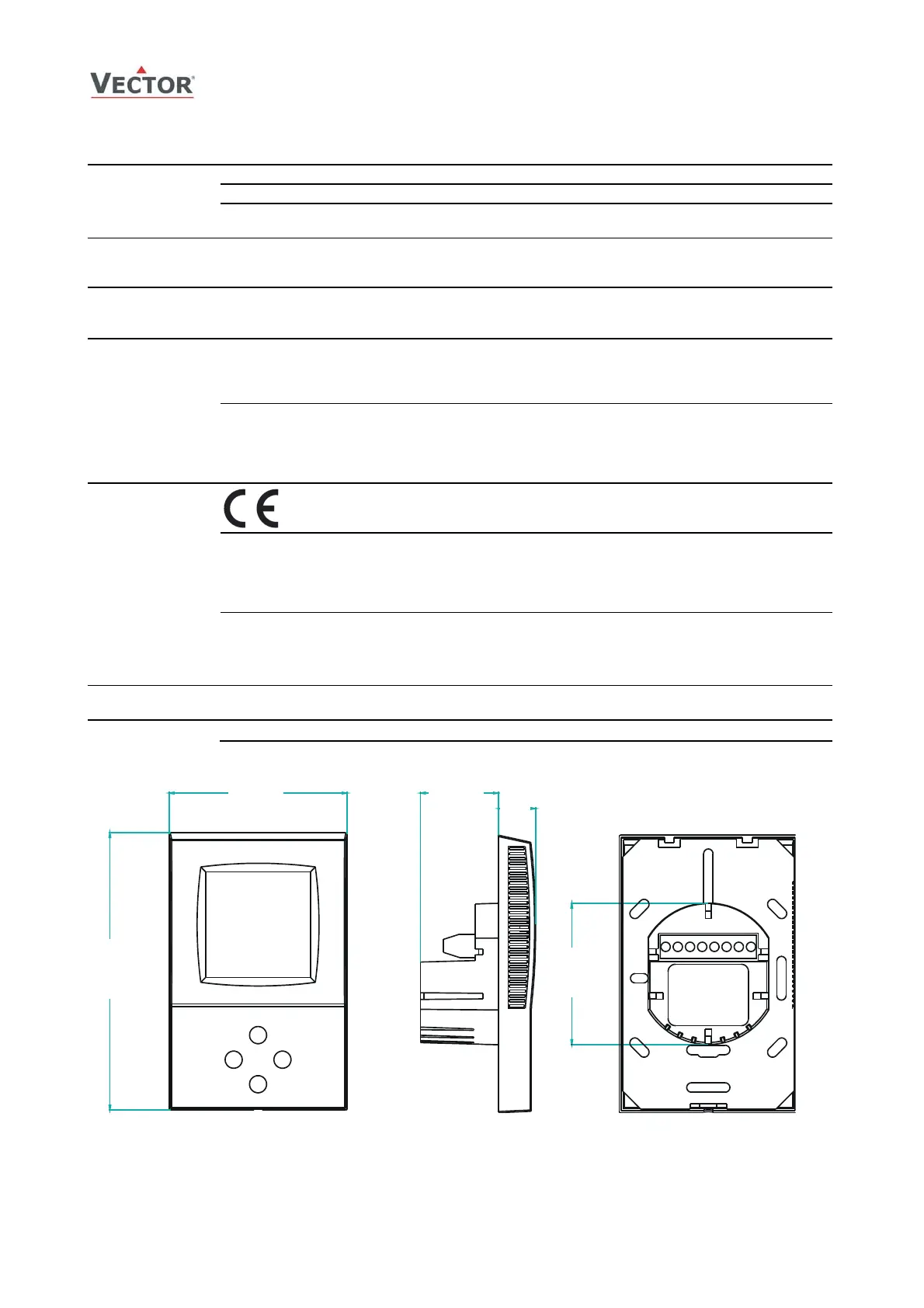

Dimensions [mm] (inch)
58 (2.3)
112 (4.4)
73
(
2.9
)
32
(
1.2
)
15
(
0.6
)
