HFT-1500 Digital Antenna Tuner with Roller Inductor Owner's Manual
2
Bypass ...................................SO-239 connector
RF Input................................. SO-239 connector
Balanced Line........................ Dual high voltage Derlin terminal post; includes 4:1 2.5
kW voltage balun (Ruthroff type).
End-Fed Wire........................ High voltage Derlin terminal post.
OTHER
Frequency Coverage.............. 1.8-30 MHz; continuously tunable.
Power Maximum................... 1000 Watts single tone continuous; 2 kW PEP SSB.
Dimensions............................ 5.5" (140 mm) H x 12.5" (318 mm) W x 12" (305 mm) D
Weight...................................10 lbs. (4.5 kg.)
CONTOLS / CONNECTORS

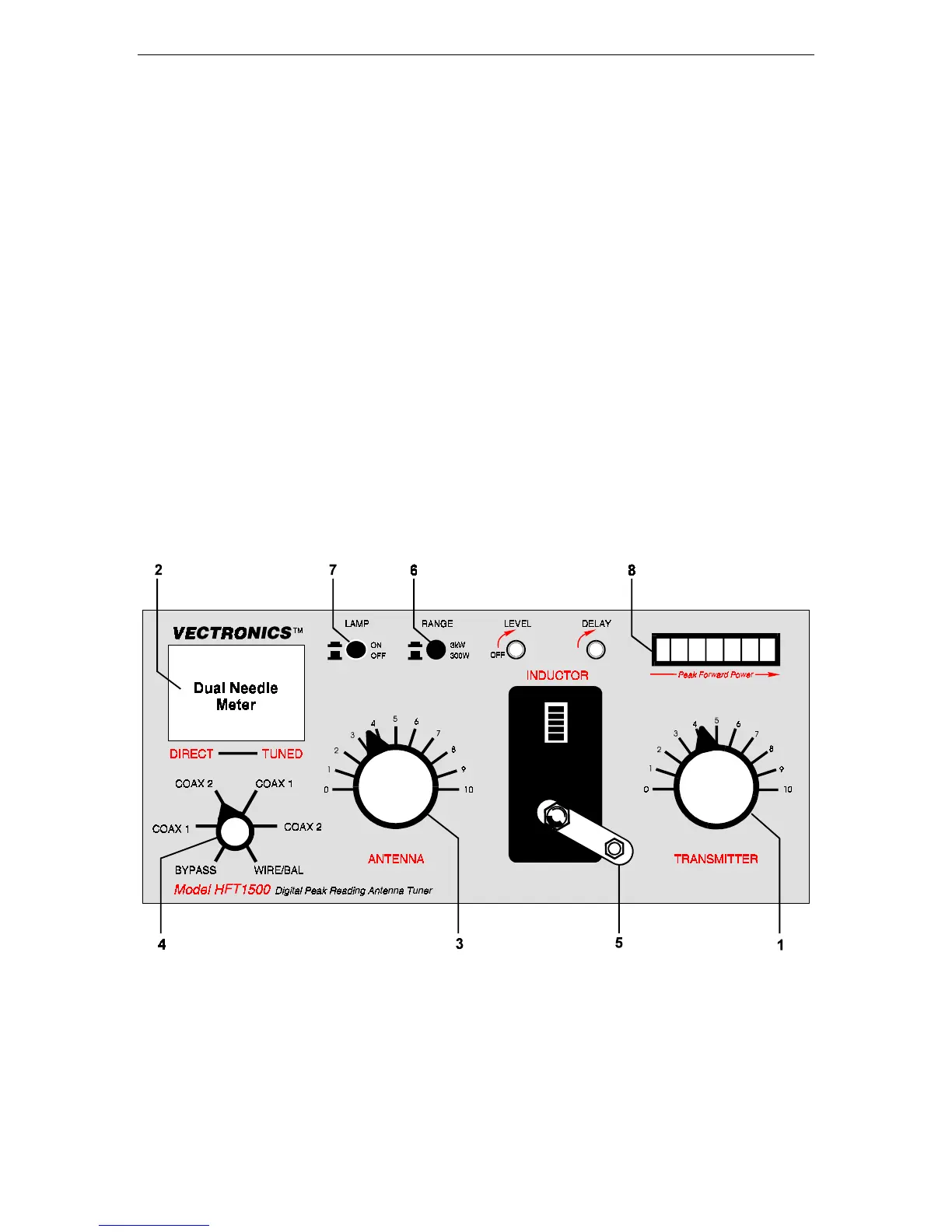

FRONT PANEL FUNCTIONS
1. TRANSMITTER
Continuously adjustable input capacitor
2. POWER / SWR METER
Dual needle meter displays FOWARD and REFLECTED Power in Watts.
