Installation, Operation and Service Manual
Series 7886 High-Capacity & 7887 Meter Registers

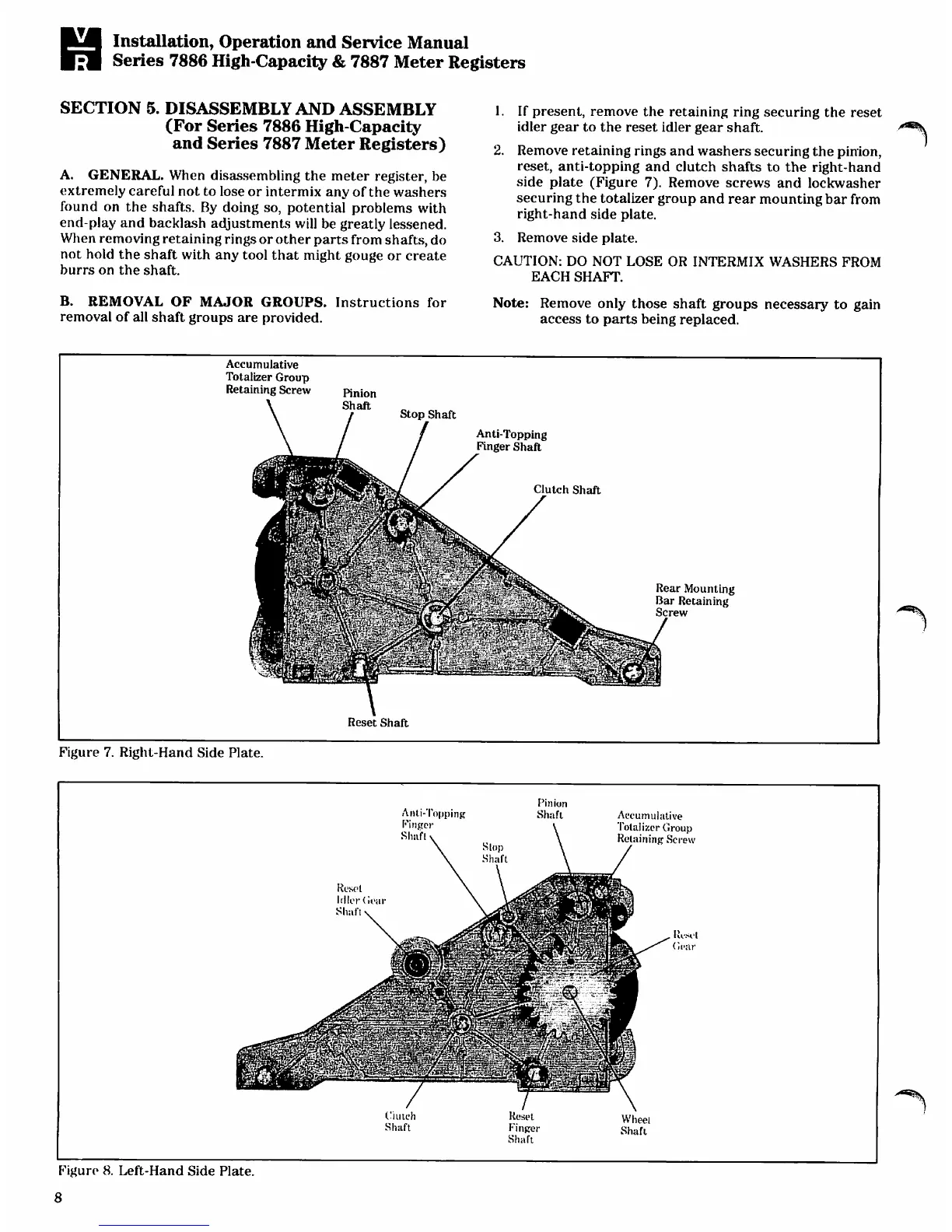

SECTION 5. DISASSEMBLY AND ASSEMBLY
(For Series 7886 High-Capacity
and Series 7887 Meter Registers)
A. GENERAL. When disassembling the meter register, be
extremely careful not to lose or intermix any of the washers
found on the shafts. By doing so, potential problems with
end-play and backlash adjustments will be greatly lessened.
When removing retaining rings or other parts from shafts, do
not hold the shaft with any tool that might gouge or create
burrs on the shaft.
B. REMOVAL OF MAJOR GROUPS. Instructions for
removal of all shaft groups are provided.
1. If present, remove the retaining ring securing the reset
idler gear to the reset idler gear shaft.
2. Remove retaining rings and washers securing the pinion,
reset, anti-topping and clutch shafts to the right-hand
side plate (Figure 7). Remove screws and lockwasher
securing the totalizer group and rear mounting bar from
right-hand side plate.
3. Remove side plate.
CAUTION: DO NOT LOSE OR INTERMIX WASHERS FROM
EACH SHAFT.
Note: Remove only those shaft groups necessary to gain
access to parts being replaced.
^\
Accumulative
Totalizer Group
Retaining Screw
Pinion
Shaft
Stop Shaft
Anti-Topping
Finger Shaft
Clutch Shaft
Rear Mounting
Bar Retaining
Screw
Reset Shaft
Figure 7. Right-Hand Side Plate.
Figure 8. Left-Hand Side Plate.
8
