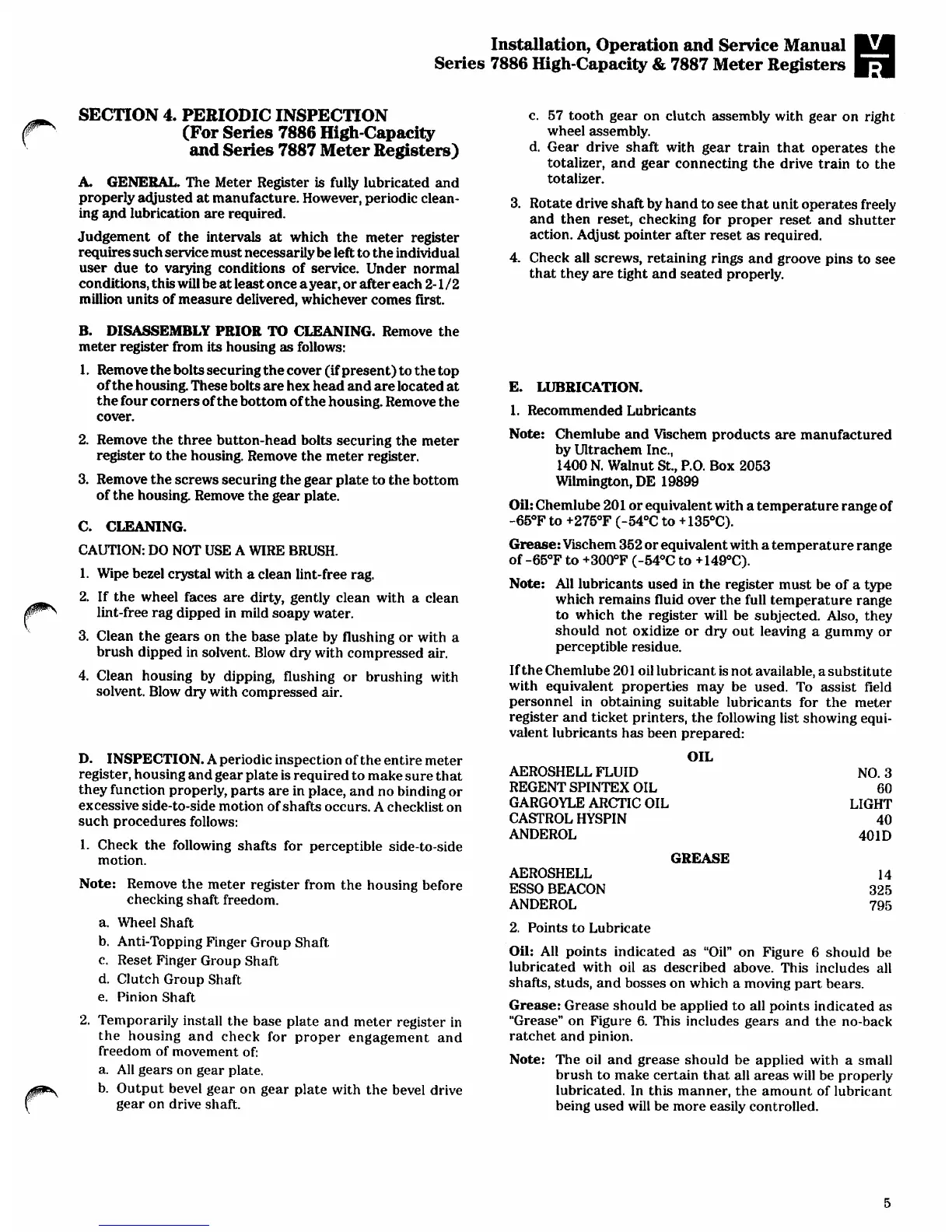

Page #7 background imageLoading...
Page #7 background image
Installation,
Operation
and
Service
Manual
Series
7886
High-Capacity
&
7887
Meter
Registers
SECTION
4.
PERIODIC
INSPECTION
(For
Series
7886
High-Capacity
and
Series
7887
Meter
Registers)
A.
GENERAL.
The
Meter
Register
is
fully
lubricated
and
properly
adjusted
at
manufacture.
However,
periodic
clean
ing
and
lubrication
are
required.
Judgement
of
the
intervals
at
which
the
meter
register
requires
such
service
must
necessarily
be
left
to
the
individual
user
due
to
varying
conditions
of
service.
Under
normal
conditions,
this
will
be
at
least
once
a
year,
or
after
each
2-1/2
million
units
of
measure
delivered,
whichever
comes
first.
B.
DISASSEMBLY
PRIOR
TO
CLEANING.
Remove
the
meter
register
from
its
housing
as
follows:
1.
Remove
the
bolts
securing
the
cover
(if
present)
to
the
top
of
the
housing.
These
bolts
are
hex
head
and
are
located
at
the
four
corners
of
the
bottom
of
the
housing.
Remove
the
cover.
2.
Remove
the
three
button-head
bolts
securing
the
meter
register
to
the
housing.
Remove
the
meter
register.
3.
Remove
the
screws
securing
the
gear
plate
to
the
bottom
of
the
housing.
Remove
the
gear
plate.
C.
CLEANING.
CAUTION:
DO
NOT
USE
A
WIRE
BRUSH.
1.
Wipe
bezel
crystal
with
a
clean
lint-free
rag.
2.
If
the
wheel
faces
are
dirty,
gently
clean
with
a
clean
lint-free
rag
dipped
in
mild
soapy
water.
3.
Clean
the
gears
on
the
base
plate
by
flushing
or
with
a
brush
dipped
in
solvent.
Blow
dry
with
compressed
air.
4.
Clean
housing
by
dipping, flushing
or
brushing
with
solvent.
Blow
dry
with
compressed
air.
D.
INSPECTION.
A
periodic
inspection
of
the
entire
meter
register,
housing
and
gear
plate
is
required
to
make
sure
that
they
function
properly,
parts
are
in
place,
and
no
binding
or
excessive
side-to-side
motion
of
shafts
occurs.
A
checklist
on
such
procedures
follows:
1.
Check
the
following
shafts
for
perceptible
side-to-side
motion.
Note:
Remove
the
meter
register
from
the
housing
before
checking
shaft
freedom.
a.
Wheel
Shaft
b.
Anti-Topping
Finger
Group
Shaft
c.
Reset
Finger
Group
Shaft
d.
Clutch
Group
Shaft
e.
Pinion
Shaft
2.
Temporarily
install
the
base
plate
and
meter
register
in
the
housing
and
check
for
proper
engagement
and
freedom
of
movement
of:
a.
All
gears
on
gear
plate.
b.
Output
bevel
gear
on
gear
plate
with
the
bevel
drive
gear
on
drive
shaft.
c.
57
tooth
gear
on
clutch
assembly
with
gear
on
right
wheel
assembly.
d.
Gear
drive
shaft
with gear
train
that
operates
the
totalizer,
and
gear
connecting
the
drive
train
to
the
totalizer.
3.
Rotate
drive
shaft
by
hand
to
see
that
unit
operates
freely
and
then
reset,
checking
for
proper
reset
and
shutter
action.
Adjust
pointer
after
reset
as
required.
4.
Check
all
screws,
retaining
rings
and
groove
pins
to
see
that
they
are
tight
and
seated
properly.
E.
LUBRICATION.
I.
Recommended
Lubricants
Note:
Chemlube
and
VTschem
products
are
manufactured
by
Ultrachem
Inc.,
1400
N.
Walnut
St.,
P.O.
Box
2053
Wilmington,
DE
19899
Oil:
Chemlube
201
or
equivalent
with
a
temperature
range
of
-65°F
to
+275°F
(-54°C
to
+135°C).
Grease:
Vischem
352
or
equivalent
with
a
temperature
range
of
-65°F
to
+300°F
(-54°C
to
+149°C).
Note:
All
lubricants
used
in
the
register
must
be of
a
type
which
remains
fluid
over
the
full
temperature
range
to
which
the
register
will
be
subjected.
Also,
they
should
not
oxidize
or
dry
out
leaving
a
gummy
or
perceptible
residue.
If
the
Chemlube
201
oil
lubricant
is
not
available,
a
substitute
with
equivalent
properties
may
be
used.
To
assist
field
personnel
in
obtaining
suitable
lubricants
for
the
meter
register
and
ticket
printers,
the
following
list
showing
equi
valent
lubricants
has
been
prepared:
OIL
AEROSHELL
FLUID
REGENT
SPINTEX
OIL
GARGOYLE
ARCTIC
OIL
CASTROL
HYSPIN
ANDEROL
AEROSHELL
ESSO
BEACON
ANDEROL
2.
Points
to
Lubricate
GREASE
NO.
3
60
LIGHT
40
401D
14
325
795
Oil:
All
points
indicated
as
"Oil"
on
Figure 6
should
be
lubricated
with
oil
as
described
above.
This
includes
all
shafts,
studs,
and
bosses
on
which
a
moving
part
bears.
Grease:
Grease
should
be
applied
to
all
points
indicated
as
"Grease"
on
Figure
6.
This
includes
gears
and
the
no-back
ratchet
and
pinion.
Note:
The
oil
and
grease
should
be
applied
with
a
small
brush
to
make
certain
that
all
areas
will
be
properly
lubricated.
In
this
manner,
the
amount
of
lubricant
being
used
will
be
more
easily
controlled.
