Veeder-Root SERIES 7887 User Manual

Installation, Operation and Service Manual
Series 7886 High-Capacity & 7887 Meter Registers
188.925mm
7.438"
Dia.
0.250-28 UNF 2B
8 holes equally spaced
Studs must not enter tapped holes
more than 7.938mm (0.312").
168.275mm
6.625"
Dia.
Mounting Dimensions
130.429mm
15.88mm ±0.508
0.625" +0.020
127.863mm
5.034 H
173.126mm
— 6.816
290.525mm
—11.438" —
56.769mm
2.235"
Dimension Identification
214.934mm
-8.462"-
54.965mm
2.164"
139.7mm
5.500"-*
3.175mm
0.125"

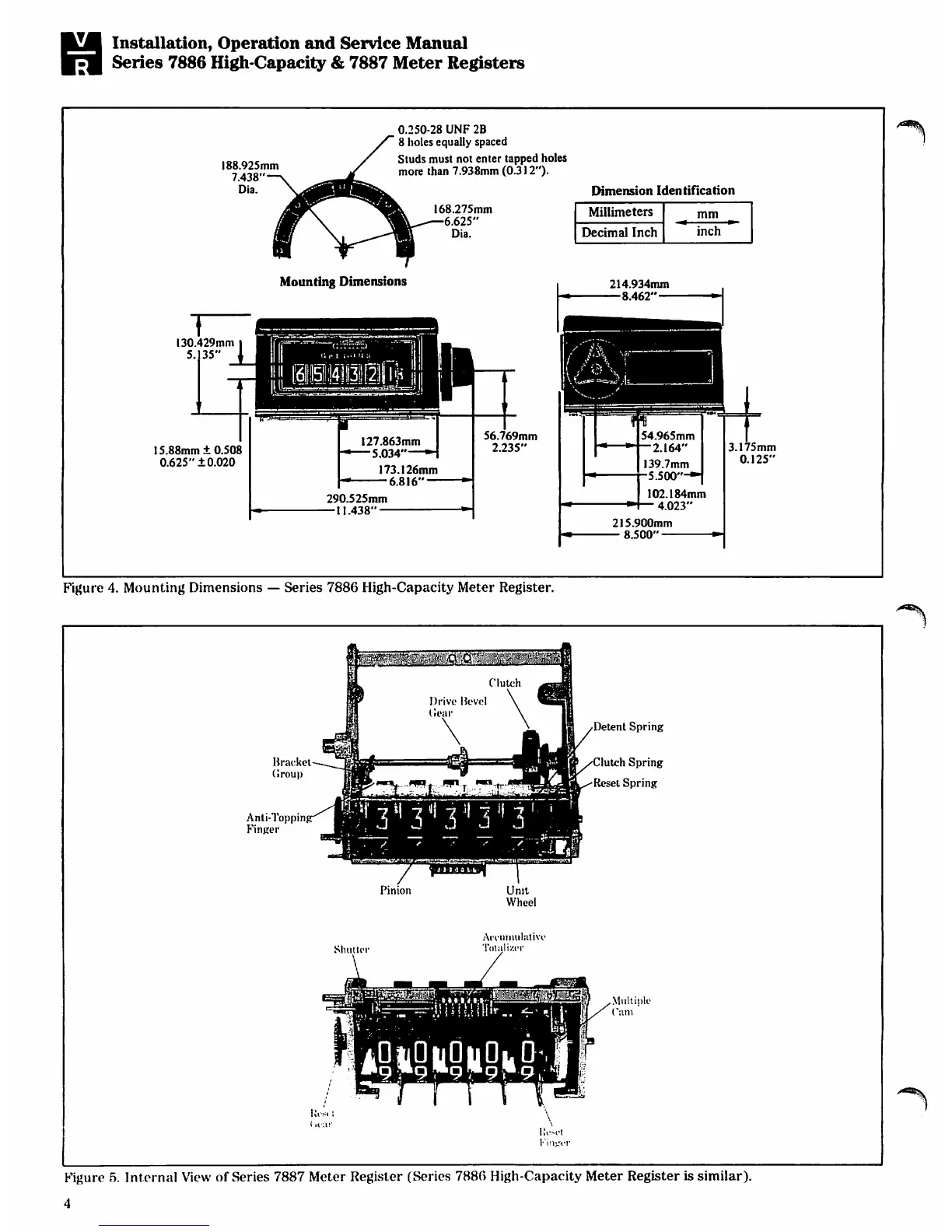

Figure 4. Mounting Dimensions — Series 7886 High-Capacity Meter Register.
Bracket-
Croup
Anli-Toppin.
Finger
Unit
Wheel
Shut tor
Detent Spring
lutch Spring
Reset Spring
Figure 5. Internal View of Series 7887 Meter Register (Series 7886 High-Capacity Meter Register is similar).
