2 System Description System Parts Identification

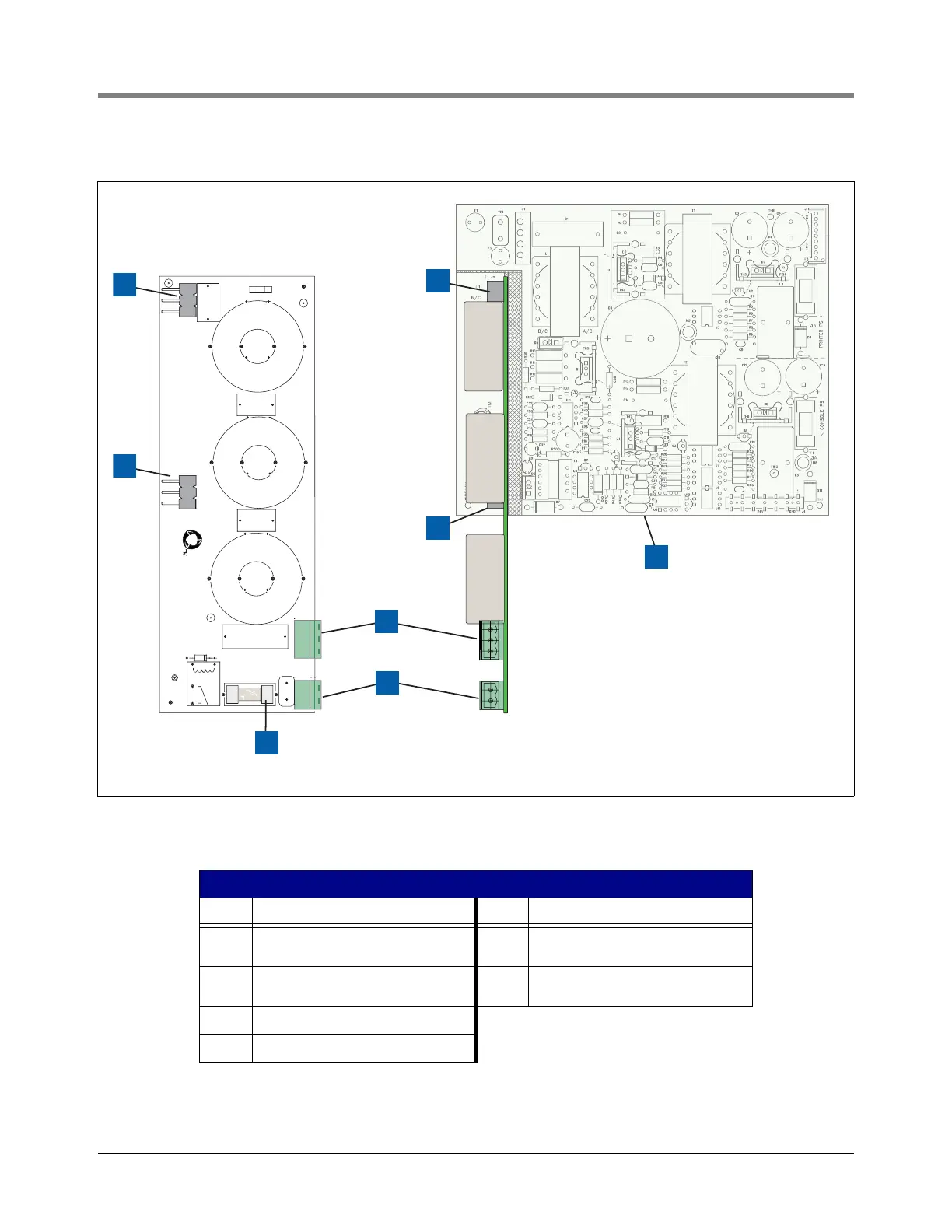

Figure 2-5. AC Input Board
Legend For Figure 2-5
Item Description Item Description
1 Console AC Input plugs into J2 on
Power Supply board
5 Relay output fuse, 2A 250V Slo-Blo
2 Output relay control plugs into J3 on
Power Supply board
6 AC Input board plugs into Power Sup-
ply board as shown
3 AC input power connector
4 Output relay control connector
L2
J4
C1
L1
M3
A/C TO POWER SUPPLY
C4
J3
1
GG FFBB
JJL 07/02/07
+12V
1
RELAY
TH1
M1
F1
C3
C2
L3
M4
K1
250 V
SLO-BLO
2 A
A/C INPUT BOARD
332662-001
CONTROL
D1
TH2
J2
VR1
OUT
RELAY
M2
J1
1
1
A/C INPUT
1
1
3
4
5
2
1
2
6
1
