7-13
7 Component Removal Removing The SATA Drive
Removing The SATA Drive
1. Perform all of the Steps in the section entitled “Before Turning Off Power” on page 7-2.
2. Open the console doors as described in Step 1 of the section entitled “Removing The Ack Switch Panel/
Display (Right) Door And CPU Board” on page 7-3.

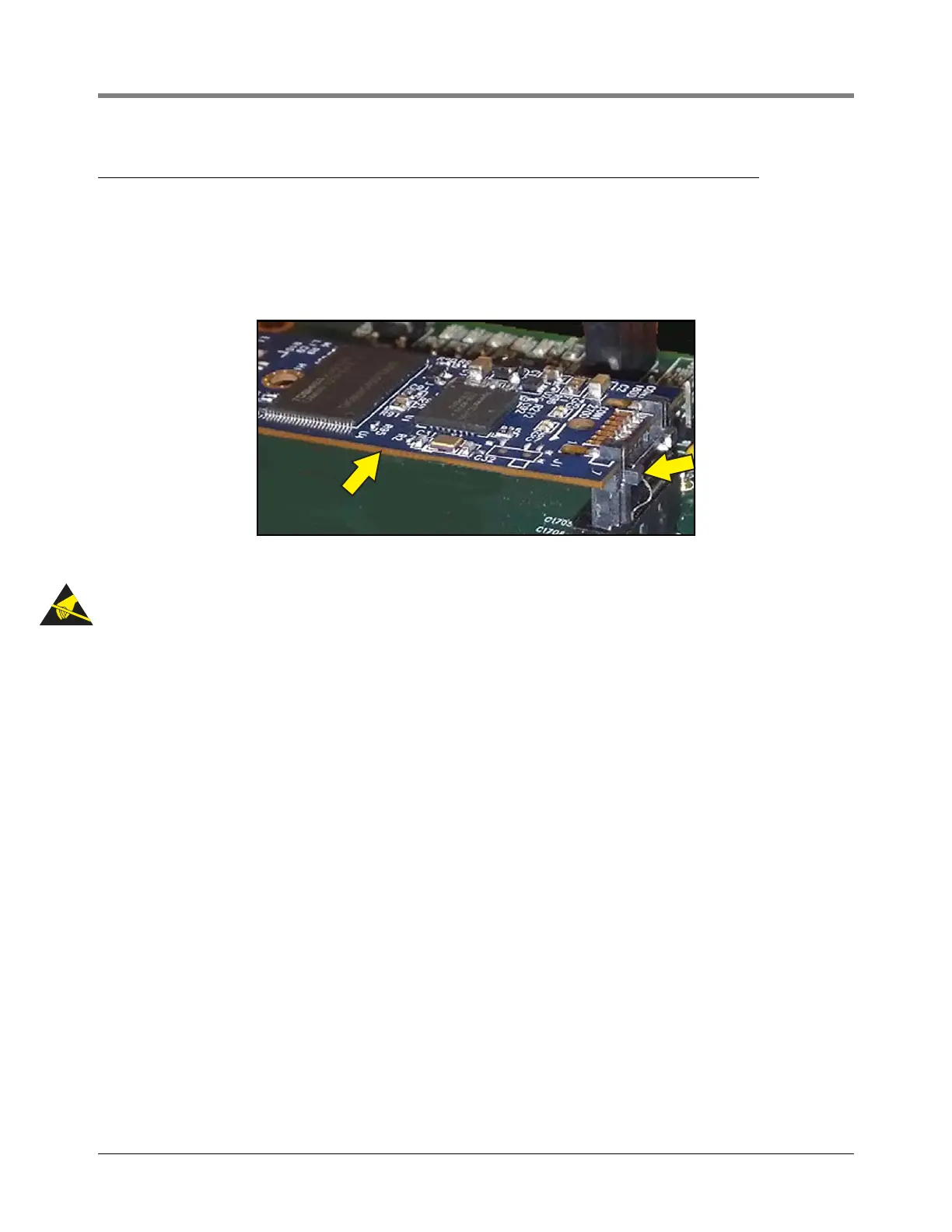

3. Locate the small SATA drive board in the middle of the CPU board (pointer 1 below):
4. Wearing a static avoidance wrist strap grounded to the console, push in on the small button (pointer 2 above)
to release the plug latch and lift the small SATA drive board from the connector.
5. Handle the SATA drive by its edges and avoid touching components on the board. To reinstall push the SATA
drive board plug into the CPU connector until the plug latch snaps into place.
6. Perform a database restore procedure (Menu>Software Upgrade>DB Restore) to reload system data into a
new SATA drive.
Note: SATA drive
may appear slightly
different than
version shown.
