13
Setup Vapor Recovery Setup
3. Notice after saving the Vapor Valve serial number is now visible (see Figure 12).

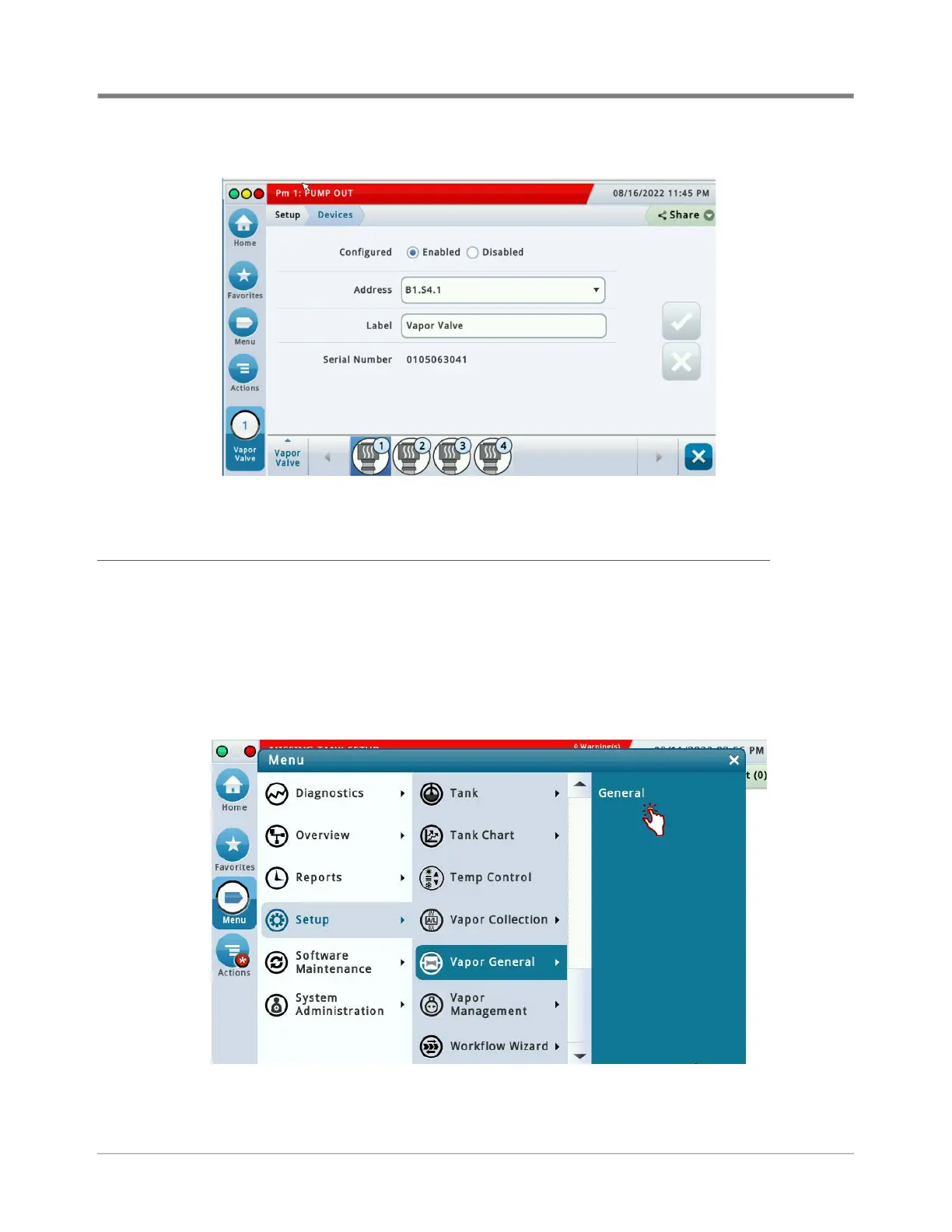

Figure 12. Example Vapor Valve Completed Setup Screen
Vapor Recovery Setup
You must choose the appropriate data sheet from Appendix A for the vapor recovery system installed at your
facility (e.g., Single or Multi-Hose Dispensers) and record in those sheets, all the unique information from sensors/
hose positions, prior to beginning the TLS-450PLUS setup procedure below.
VAPOR GENERAL SETUP
1. Go to Menu>Setup>Vapor General>General (Figure 13) to setup Assessment Time and Vapor Pressure
Sensor selection (Figure 14).
Figure 13. Accessing Vapor General: General Screen
To Next Page
