Setup Automatic Events: (Pump Mode = External Pump Control)
Automatic Events: (Pump Mode = External Pump Control)
1. For each Pump on a Gasoline Line:
a. Via: Setup > Devices > Relay
:
i. Configure/Enable a Relay to supply power to pump control device
i. Set the Type to Standard
b. Via: Setup > Pumps and Lines > Pumps
:
i. Configure/Enable a Pump
i. Set the Mode to External Pump Control
i. Assign the appropriate Tank to Pump
2. For each Gasoline Line:
a. Via: Setup > Pumps and Lines > Lines
:
i. Configure/Enable a Line
ii. Assign the appropriate gasoline Pump(s) to the Line
b. Via: Setup > Automatic Events > Device Tasks:
Add a task for required ISD Site Alarms:
California Air Resources Board (CARB) requires that gasoline dispensing be shutdown for
specific ISD Site alarms and Hose alarms (See Table 3 on page 5).
i. Set the Device to the Gasoline Line
ii. Select each required ISD Site Alarm as a Trigger
iii. Hose Site Shutdown Option: Select the Hose Alarms for each Gasoline Hose as a Trigger

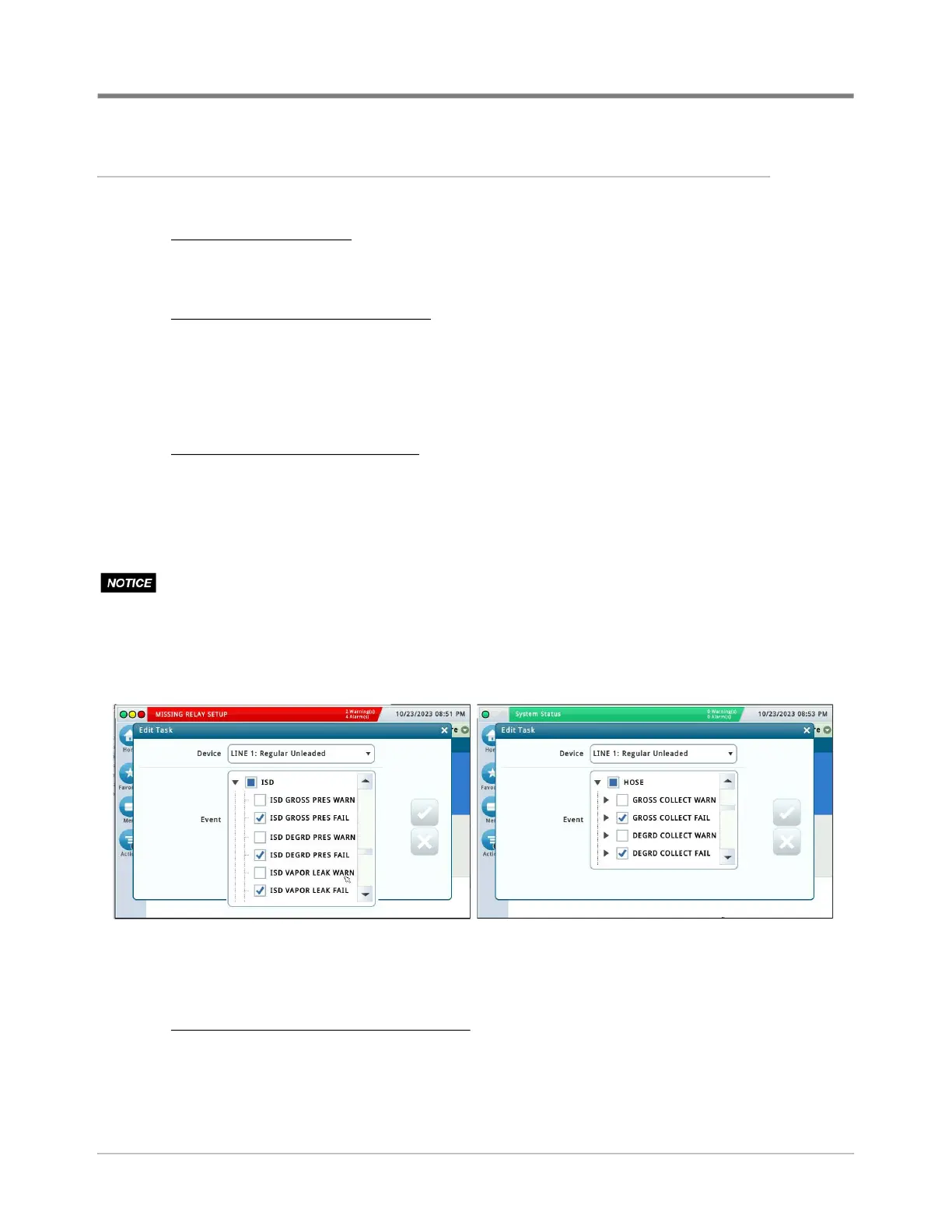

Figure 51. Example Device Task â External Pump Control (No Dispenser Relay(s))
3. For each Relay setup in Step 1a above:
a. Via: Setup > Automatic Events > Device Task
s:
Add a task for a LINE OUT alarm:
i. Set the Device to the Relay
