Installation Guide Transmitter Installation
18
LEGEND FOR NUMBERED BOXES IN
FIGURE 16
1. See Step 6 below.
2. Clamps - 2 places

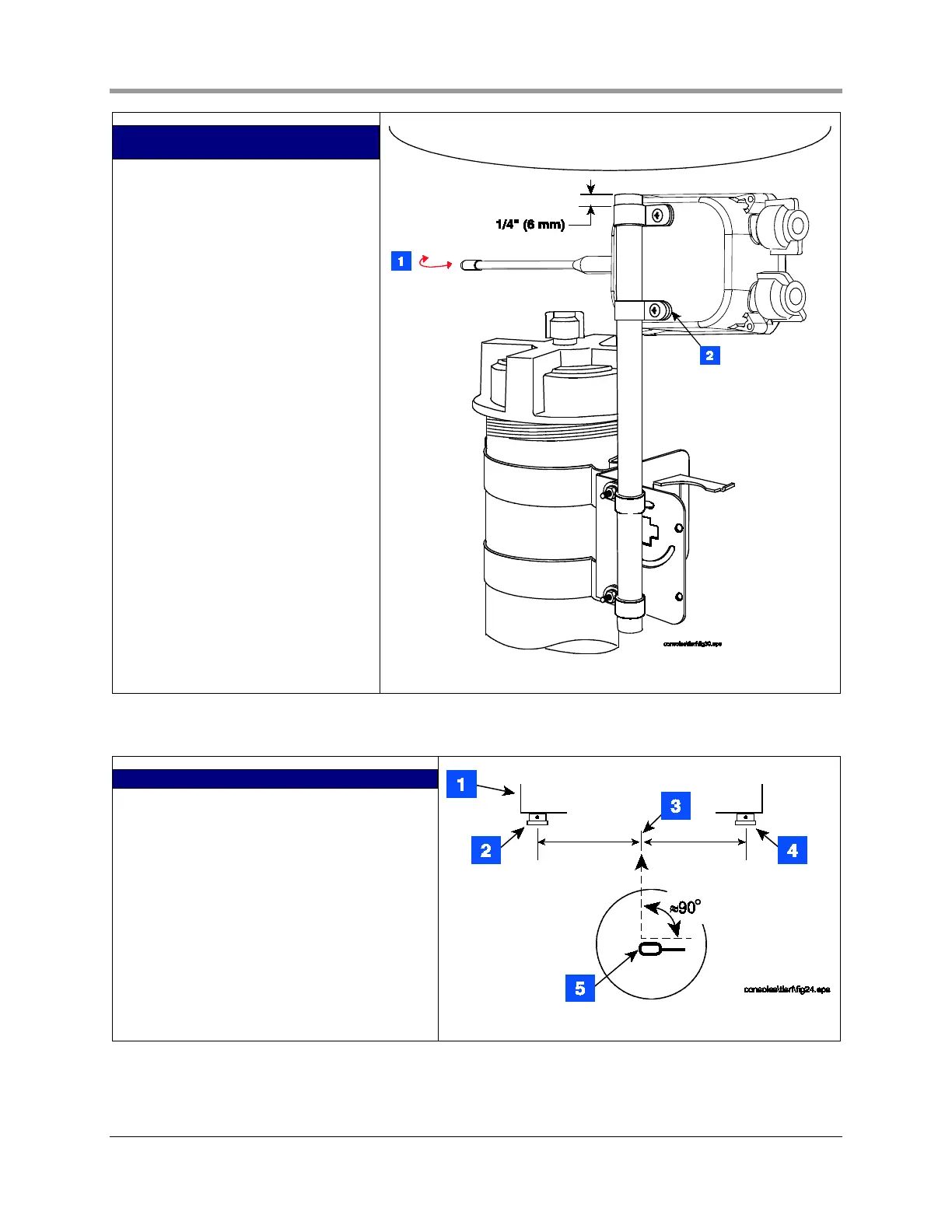

Figure 16. Installing transmitter onto support conduit
6. Rotate the transmitter until its antenna is oriented relative to the repeater/receiver antennas as shown in
Figure 17 and tighten the two clamps on the back of the transmitter.
LEGEND FOR NUMBERED BOXES IN FIGURE 17
1. Building
2. Receiver
3. Approximate midpoint between repeater and
receiver.
4. Repeater
5. Transmitter antenna - orient antenna until it is
perpendicular to a point that is approximately
the midpoint between the repeater and the
receiver.
Figure 17. Orienting transmitter to receiver & repeater
